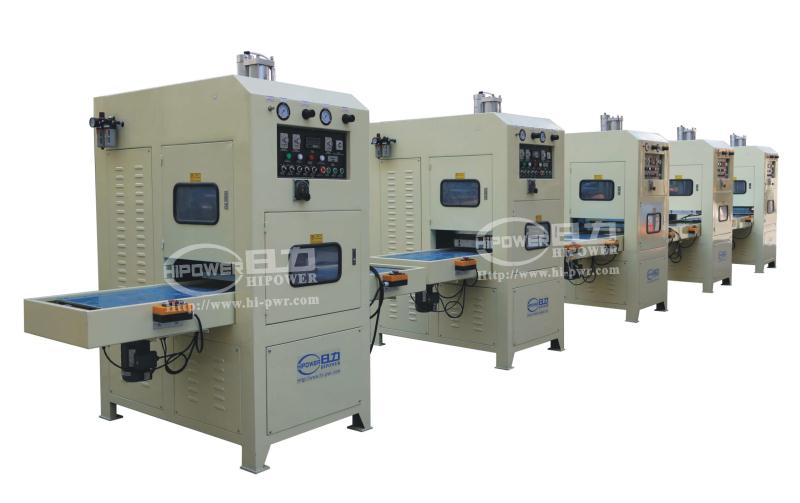

High frequency TPU car seat welding and cutting machine
Application Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.
Technical Parameter:
| Model | HR-8000WT |
| Power | 8000W |
| Voltage | 220v/380V 50/60HZ |
| Frequency | 27.12MHz |
| Input power | 15KVA |
| Rectifier | silicon diode |
| Oscillation tube | 7T69RB |
| Max pressure | 280kg |
| Operation mode | pneumatic |
| Max distance of electrodes | 200mm |
| The moving distance of active horn | 150mm |
| The size of upper electrode | 300*500mm |
| The lowwer of lowwer electrode | 300*500mm |
| The range of tempreture | 30~200 oC adjustable |
| Welding time | 0---10sdjustable |
| Productivity | < 3500times/8hours |
| Net weight | 1.5T |
| Overall dimension | 1800*1200*1600 |
