Auto Rotary Table Medical Bags High Frequency Welder

Model: HR-8000E-2C

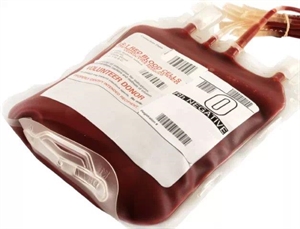

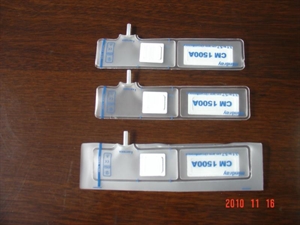

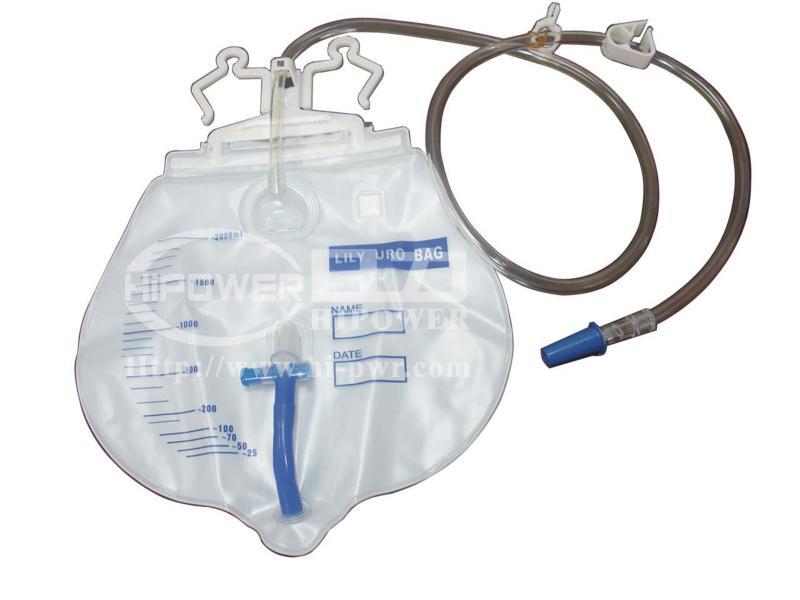

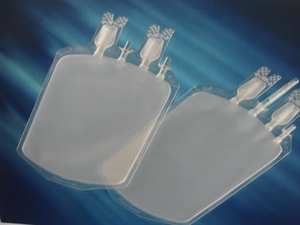

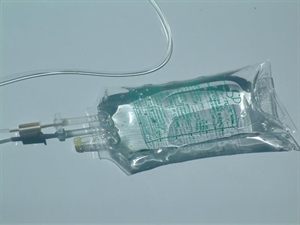

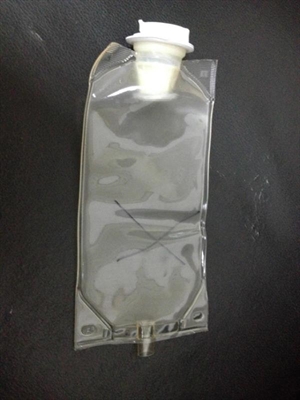

Scope Of Application: Double heads welding machine, This high frequency welding machine is widely applied for medical industrial, like , medical transfusion bag, medical blood bag, medical urine bag, and relative one-off medical bag
Features: Adopting PLC programme, micro computer trouch screen control, easy and clear to reach precisionNL-5557 high frequency anit-sparckle protection system, high sensitivePhoto electric induction, no any defectsAutomatic feeding, receiving, cutting materi

HR-8000E-2C Auto rotary table high frequency welder for medical bags

Character:
Adopting PLC programme, micro computer trouch screen control, easy and clear to reach precision
NL-5557 high frequency anit-sparckle protection system, high sensitive
Photo electric induction, no any defects
Automatic feeding, receiving, cutting material to improve working efficiency

Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output

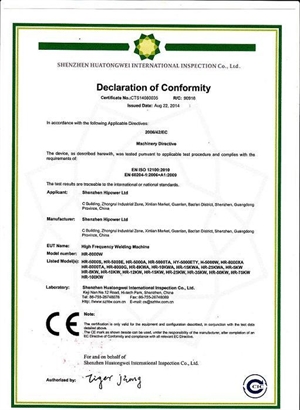

9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional  Features:

1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

MODEL:              HR-8000-2C     HR-10KW-2C      HR-12KWET -2C
H.F POWER:               8000W          10000W                  12000W
POWER SUPPLY:                            380V 50/60HZ
FREQUENCY:                 27.12MHZ                     13.56MHZ
INPUT POWER:            15KVA             18KVA                    20KVA
RECTIFIER:                              SILICON DIODE
OSCILLATION TUBE:        7T69RB         E3069               E3130
MAX PRESSURE:          500kg               500kg                 800kg
GAP OF THE ELECTRODE:                               200mm
THE SIZE OF THE HORN ACTIVE:                       150mm
SIZE OF UP MOLD:          300*400mm     350*450mm       400*500mm
SIZE OF DOWN MOLD:         350*450mm     400*500mm       450*550mm
WELDING TIME:                                   0---10 S

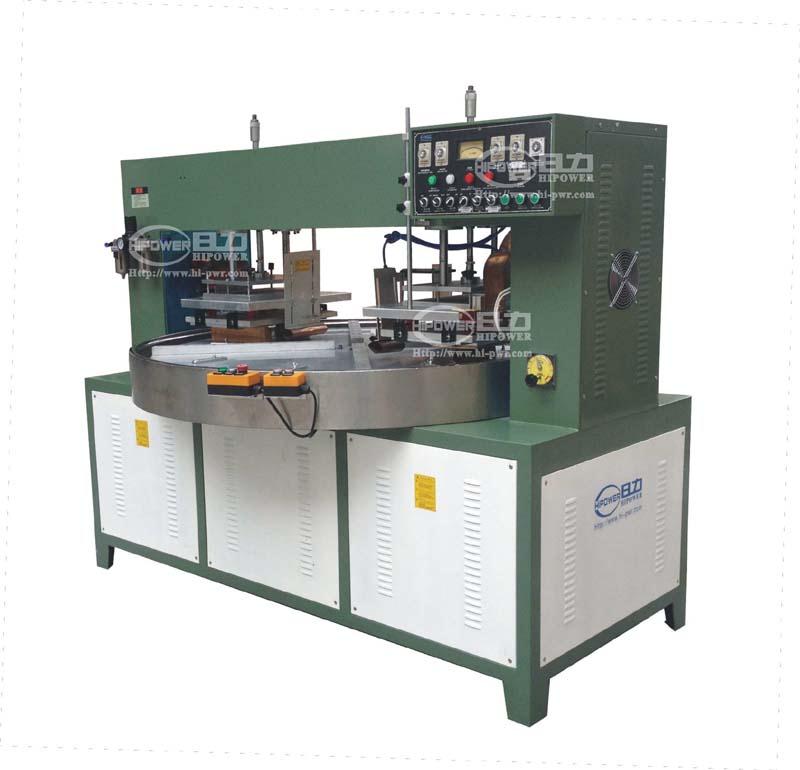

Machine view:

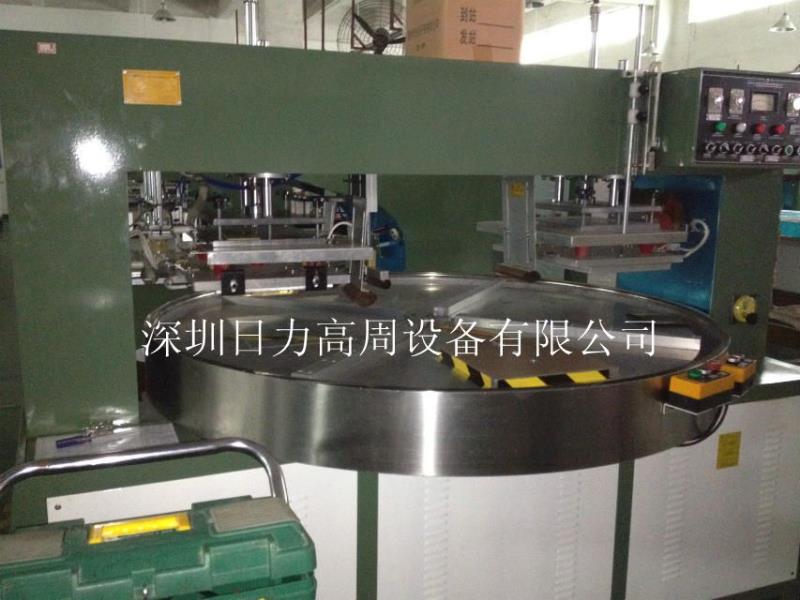

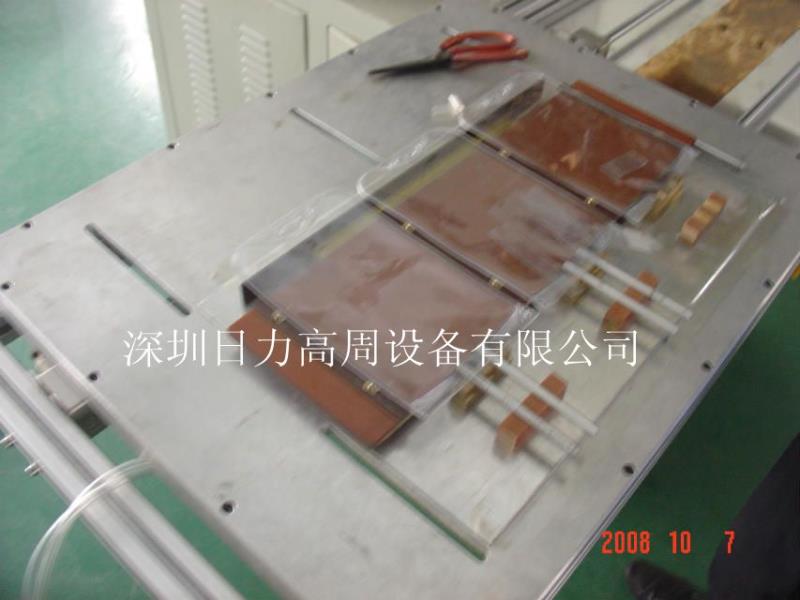

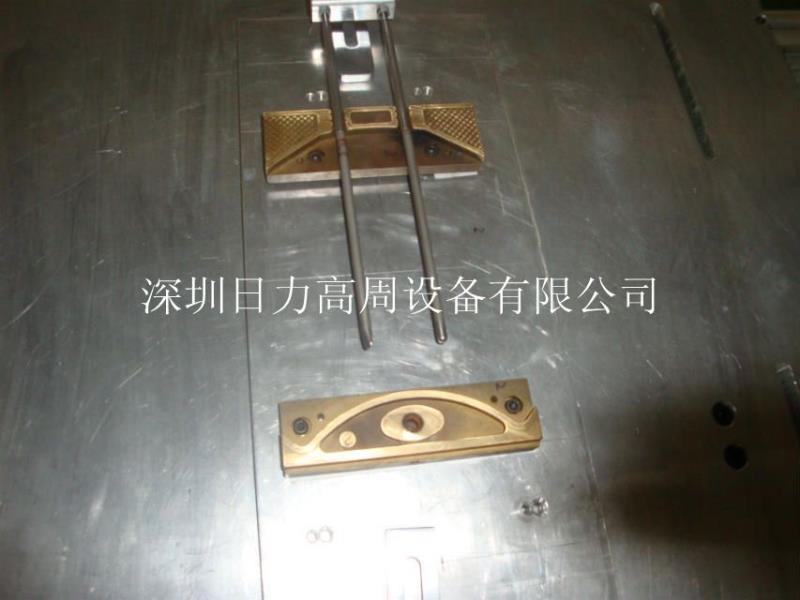

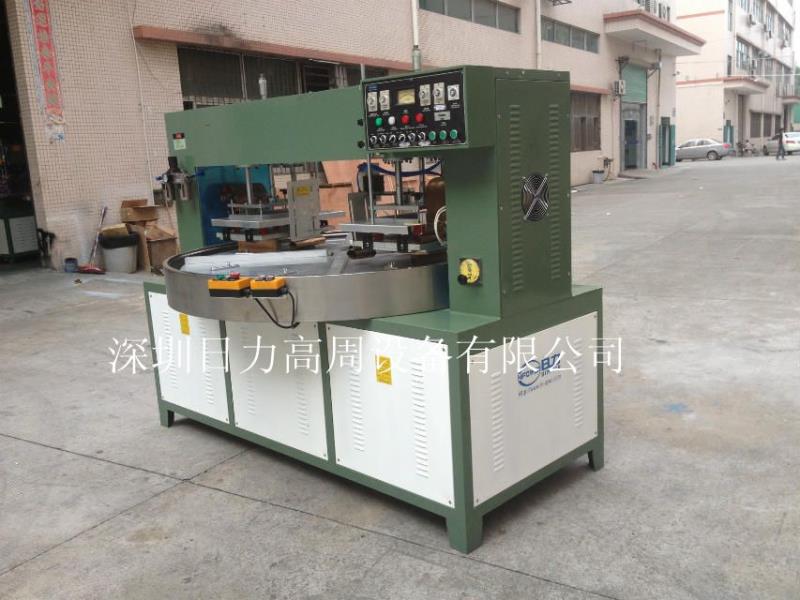

Auto H.F medical bags making machineAuto medical bags making machineAuto H.F medical bags making machine mouldsH.F medical bags making machine mouldsAuto medical bags welding machineAuto H.F medical bags welding machine

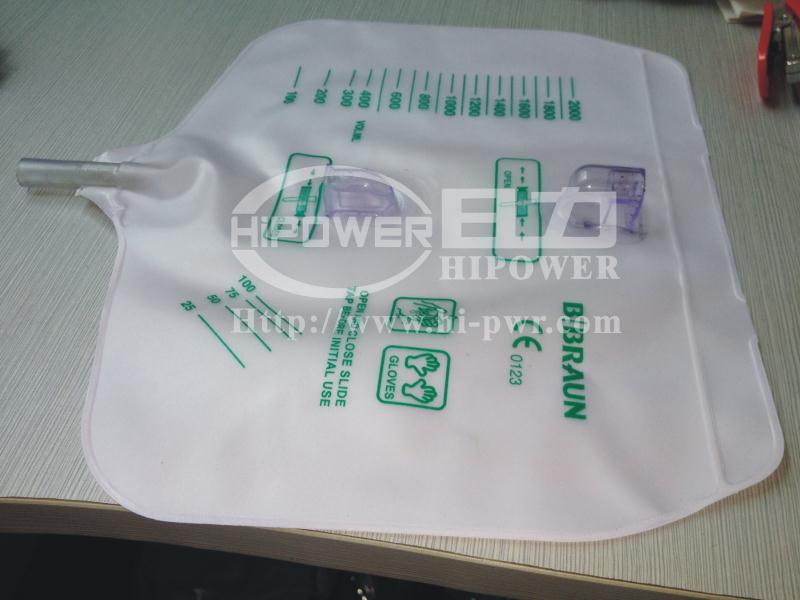

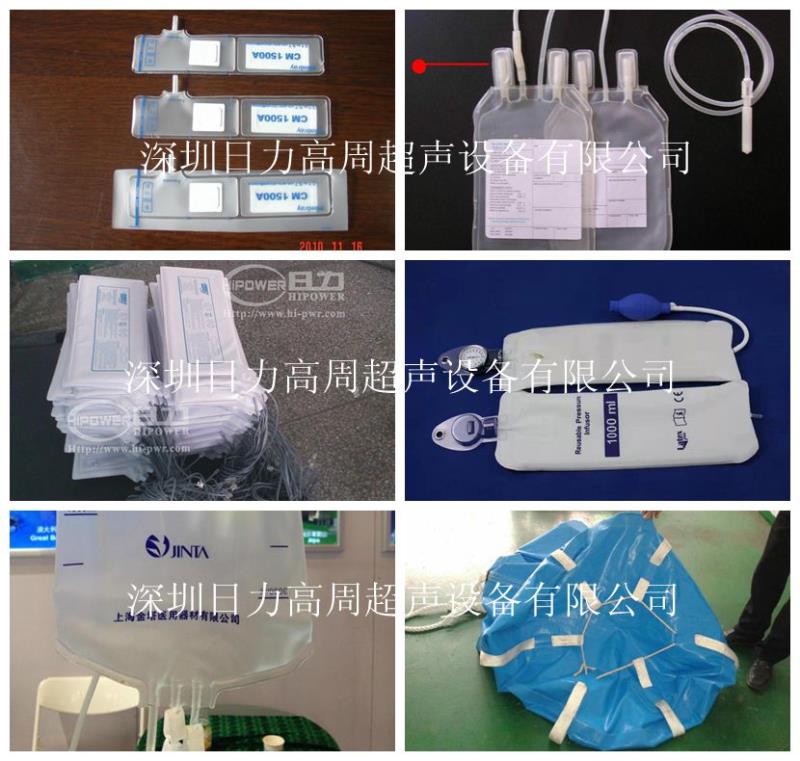

medical bags hf forming machineAuto rotary high frequency urine bags,blood bag making machineHF blood bag,infusion bag,urine bags welding machine
