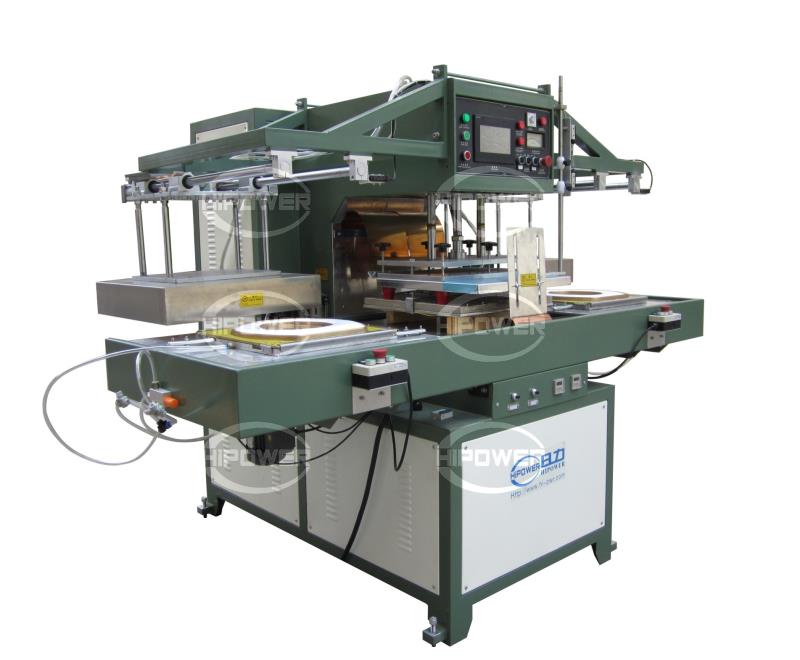

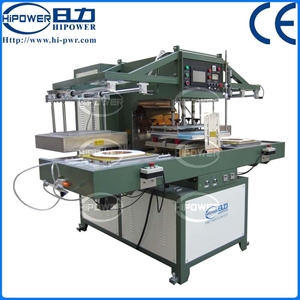

Automatic Cushion Seat Cover Welding Machine

Model: HR-8000AT
Scope Of Application: Cushion Seat cover, PVC cover, PVC Pad.
Features: Auto Sliding Table machine, with vacuum function, with auto tuning function.

Automatic Cushion Seat Cover Welding Machine


This machine is specially designed for Cushion Seat Cover Welding Machine

Machine Specification:

Model                                HR-8000AT        HR-10KWT        HR-15KWT
Power                                   8000W             10000W            15000W
Anti-Spark System                U.S.A.  PL-5557 High sensitive anti-spark system
Voltage                             3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency                         27.12MHZ
Input power                          15KVA              18KVA                25KVA
Rectifier                             SILICON DIODE
Oscillation tube                    7T69RB              E3069               8T85RB
Max pressure                       500kg                800kg               1000kg
Operation mode                  Pneumatic Operated
Max gap of electrodes          200mm
Size of active horn               150mm
Upper Electrode (W*H*L)    400*600mm       500*700mm         600*900mm
Size of Work Table (L*W)    500*700mm       600*800mm         600*900mm
Welding time                      0.01~9.99s adjustable
Net weight                        400KGS 800kgs 900kgs 1200kgs
Foreseen productivity:         According to welding times and operator skills

Machine General Features:

Automatic vacuum function.

Automatic high frequency tuning function

Automatic PVC oven heating function.

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. Heated Upper platen with thermostat, for helping HF sealing process
5. Close off HF welding function, the machine can be use as Standard Heat Welder
6. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
7. European-model square high frequency vibration box, more reliable and stable in output
8. CE rated machine; factory verified by SGS and BV;
9. Customer's site installation, training & maintenance available
10. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
11. High frequency welding press pneumatically operated

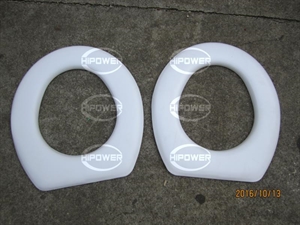

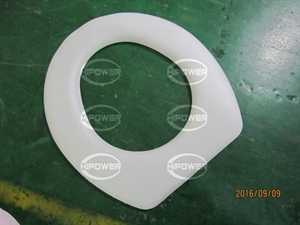

Welded Samples:

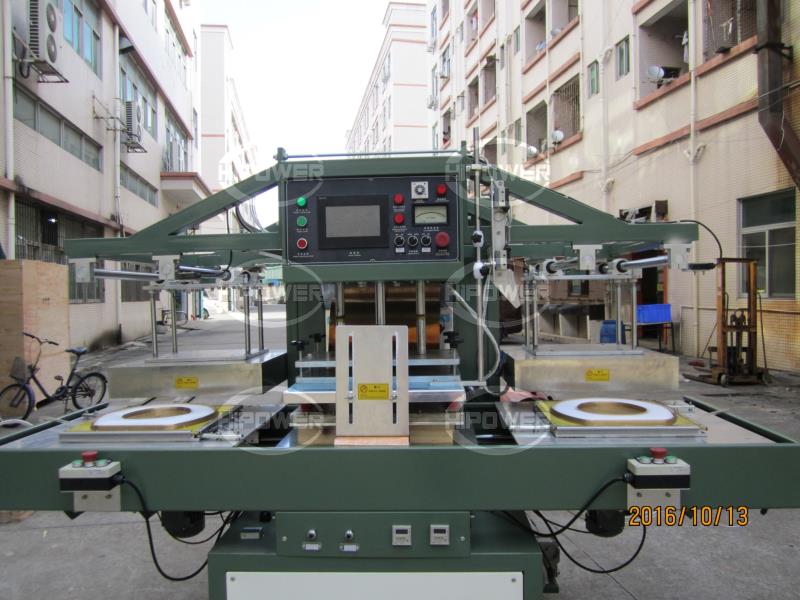

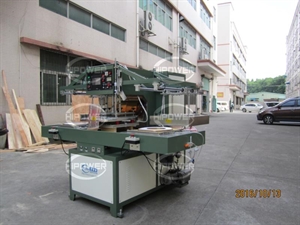

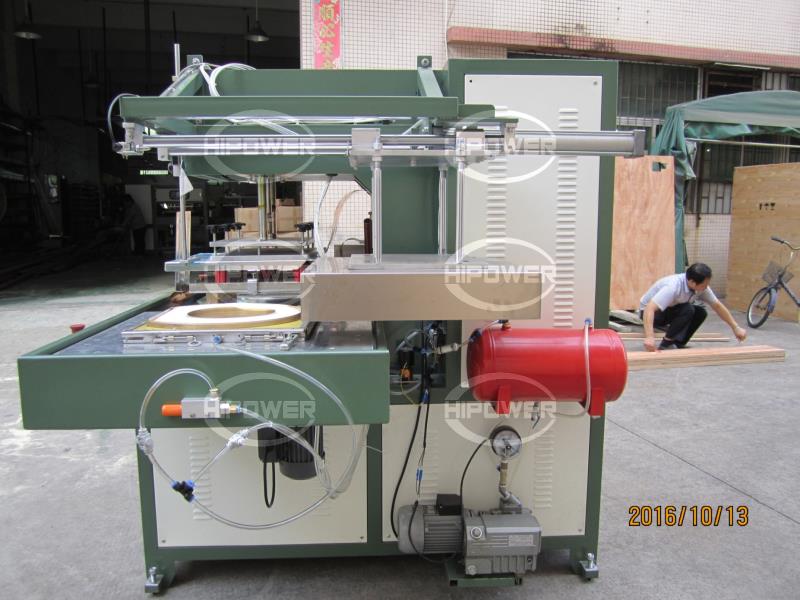

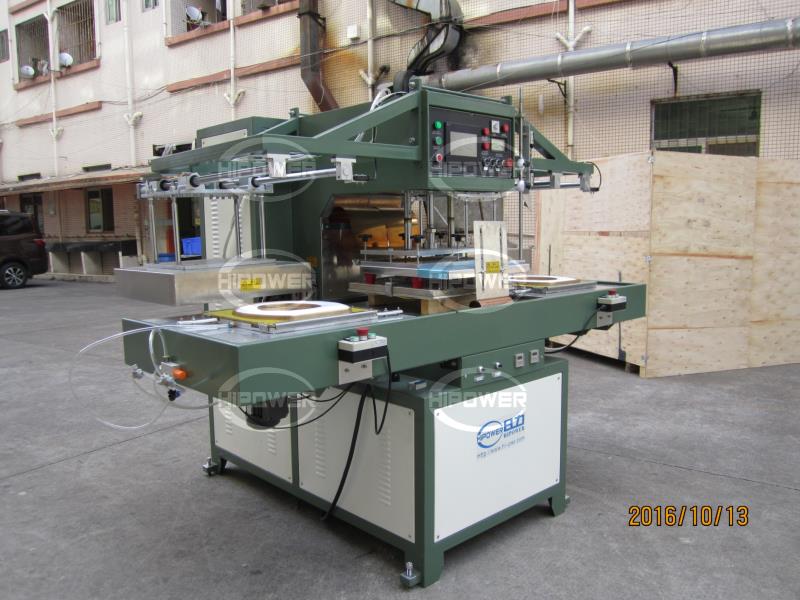

Machine On-Site Views:

Machine Drawings:
