HF PVC Welding Machine for Graphene Electric Heating Mat
| Model： | HR-5KW-2D |
| Scope Of Application： | it is used to welding bottom of pvc heat mat |
| Features： | double heads welding, to seal bottom of pvc mat.can contruct a production line with PVC heat mat welding machines |
HF PVC Welding Machine for Graphene Electric Heating Mat
High Frequency Welding and Die Cutting Machine, is applied for industrial usage below:
1. To seal and die-cut blister of PVC
2. Heat mats for pets, house use carpets, cold area,

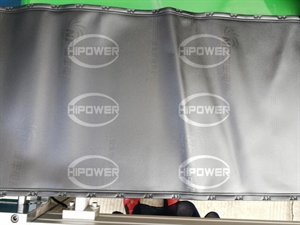

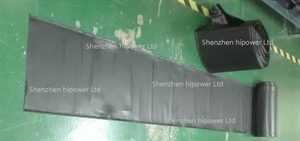

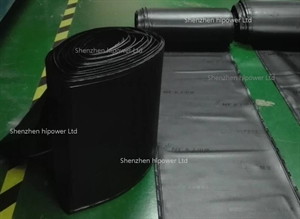

Welded Samples: High Frequency Plastic Welding and Cutting Machine
\
Function:
1. Feeding, pushing material is optional, speed is under control
2. The machine has heating and flatting devive, digital counter
3. Transmission system adopts imported wear resistant resin material
4. No scratch sheets
5. Photoelectric sensor, synchronous collection rack, the control precision
Parameter
|
model |
HR-8000G |
|
HF power |
8KW |
|
Power frequency |
3P 380V 50/60Hz or customize |
|
frequency |
27.12MHz |
|
Input power |
15KVA |
|
rectifier |
SILICON DIODE |
|
Oscillation tube |
7T69RB |
|
Maximum pressure |
20T |
|
Pressure mode |
Air hydraulic |
|
Maximum distance of eletrodes |
200MM |
|
Moving distance of electrodes |
100MM |
|
Upper electrode |
500*700 mm |
|
Down electrode |
600*800 mm |
|
Temperature range |
30 to 200 Adjustable |
|
Welding time |
0.01~9.99S Adjustable |
|
productivity |
Equal or less 5000times/8h |
|
Net weight |
3.6T |
| Gross weight | 3.8T |
|
Overall dimension |
9250*1850*2200 mm |

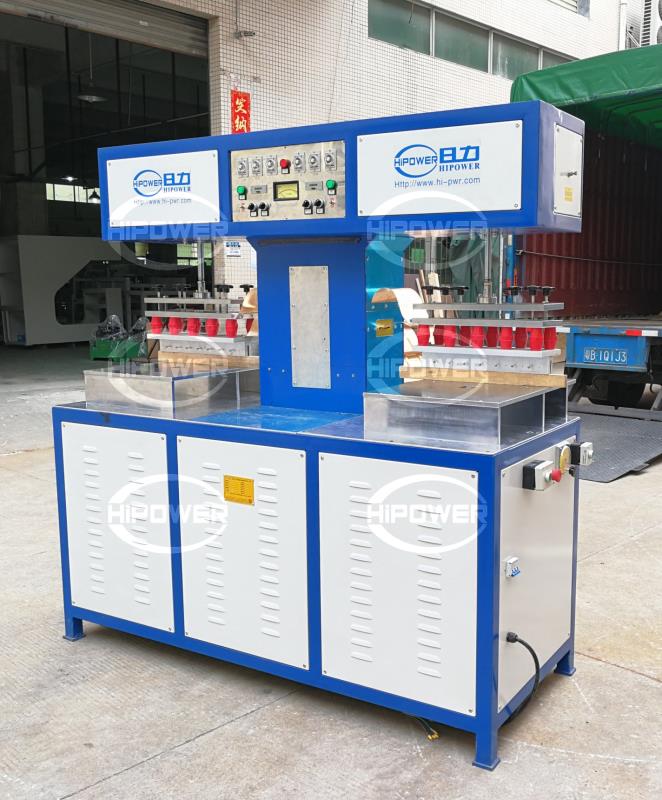

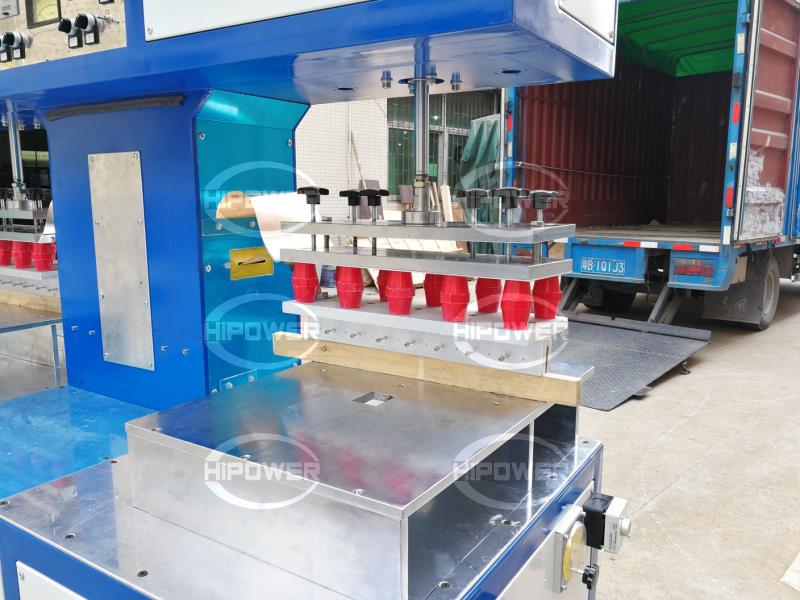

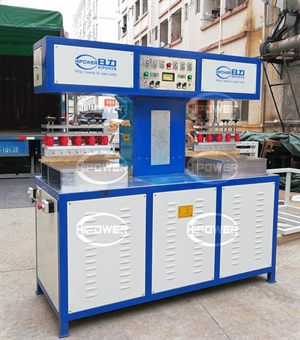

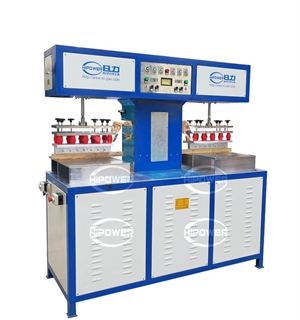

Pictures of machines:
