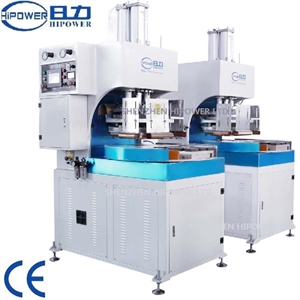

HR-8KW-2AC high frequency welding machine for leather embossing
| Model： | HR-8KW-2AC-20T |
| Scope Of Application： | Specialize for the leathers on shoes product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting |
| Features： | Automatic Turntable high frequency welding equipment features:1.Discal plate with multi-work positions;2.Pneumtic & hydraulic;3.Welding and cutting at the same time;4.NL-5557 anti-spark device; |

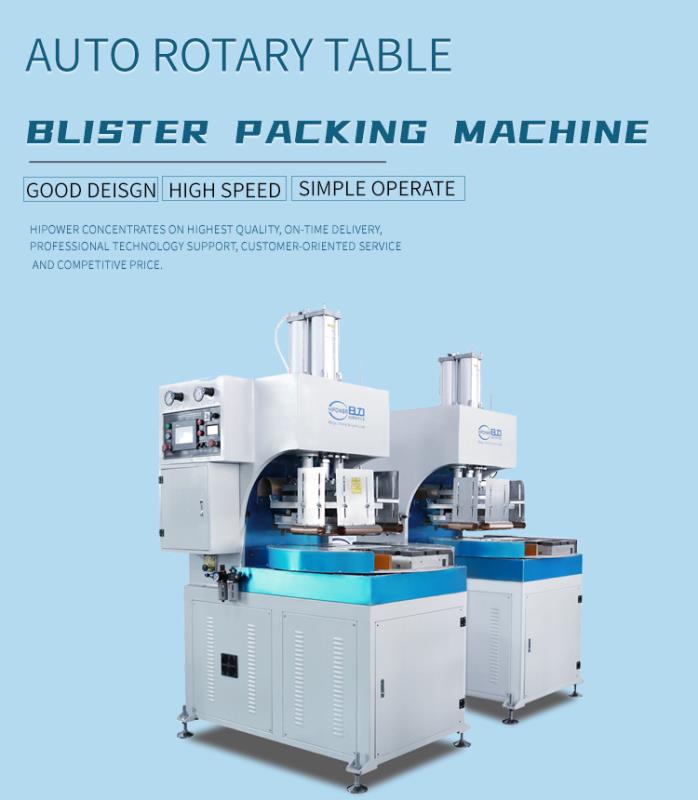

Automatic high frequency welding equipment for shoes leather

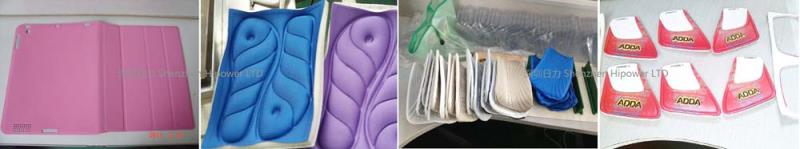

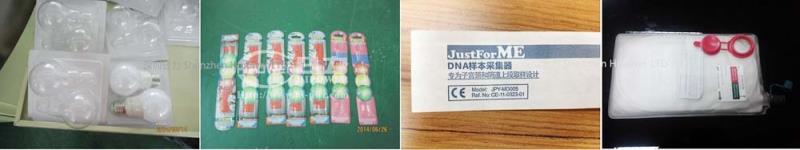

Applications :
1. Shoes' leather,Rainwear, wading boots, wading suits
2 .Covering tarpaulins, side tarpaulins
3.Coverings, sleeves
4.Stationery (folders, albums, demonstration files etc.)
5.PVC and PU conveyor belts
6.PVC inflatable boats,
features:

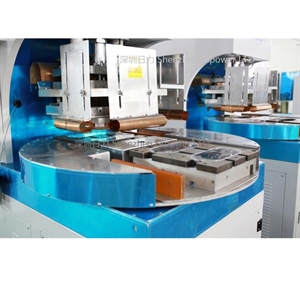

1.Discal plate with multi-work positions;
2.Pneumtic & hydraulic;
3.Welding and cutting at the same time;
4.NL-5557 anti-spark device;
5.Home-made tube or Toshiba tube optional;
6.Robot arm optional.
Technical Specification:
| Model | HR-8KW-2AC |
| Power | 8KW |
| Supply power |
3P 380V 50Hz/60Hz&Customized |
| Frequency | 27.12Mhz |
| Input supply | 15KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 7T69RB |
| Max pressure | 10T |
| Gap of electrodes | 200MM |
| Distance of active horn | 175MM |
| Size of upper electrode | 300*400MM |
| Size of buttom electrode | 350*450MM |
| Temperuture Scale | 0~200 Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 4000times / 8 hours |
| Operation Mode | Pneumatic |
