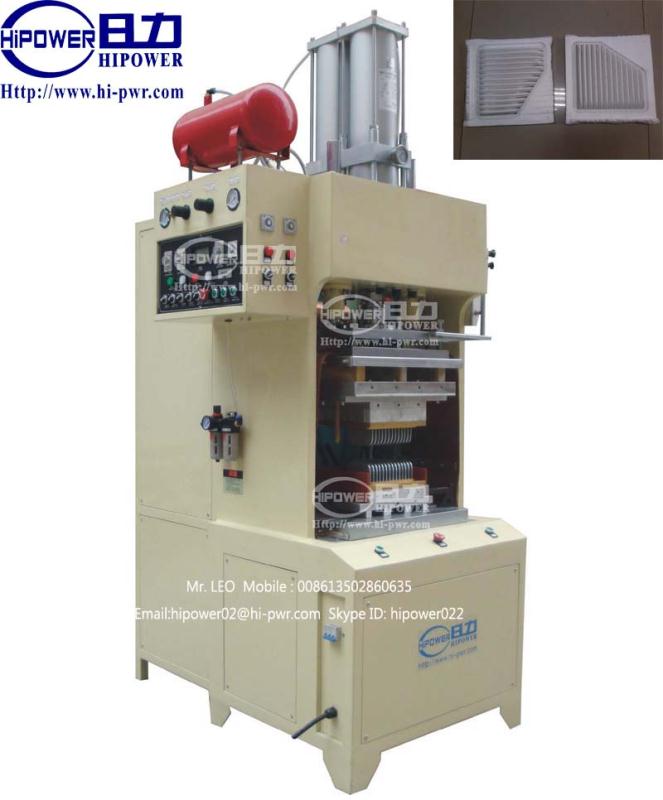

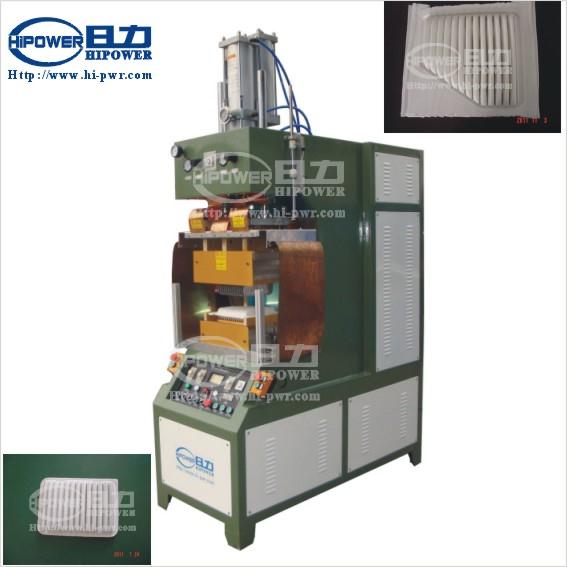

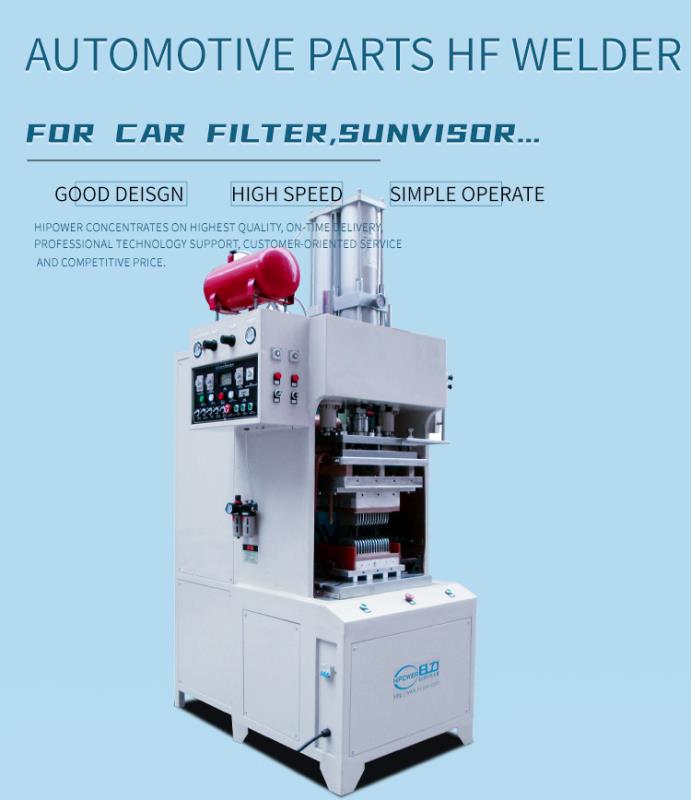

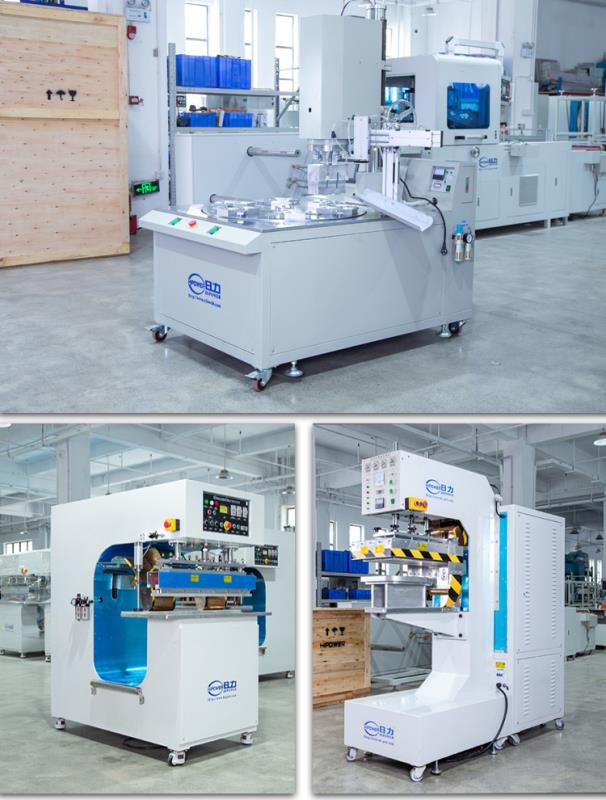

High frequency Car Air Filter Welding Machine

Model：	HR-10KW-20T
Scope Of Application：	For car air filter welding, single working station design.
Features：	1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator2. Equipped with special high precision rotary indexing gear controlled by frequency inverter. 3. Automated HF weld cycles with adjustable

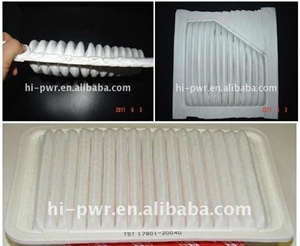

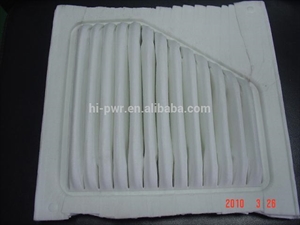

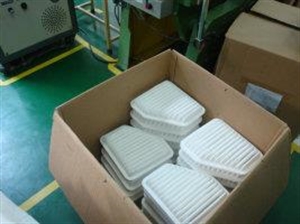

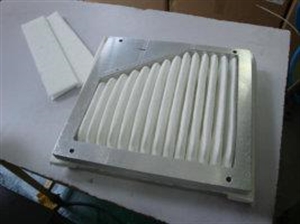

High frequency welding machine for car air filter

1. Special mechanical structure design can provide a stable and uniform pressure

2.It has high sensitive spark restraint electrocircuit that can check out the imbalance current

which can bring park and cut it off and alert the operator.

3. It is special designed and manufactured for making air filter base on the standard model ofour HF welding and cutting machine

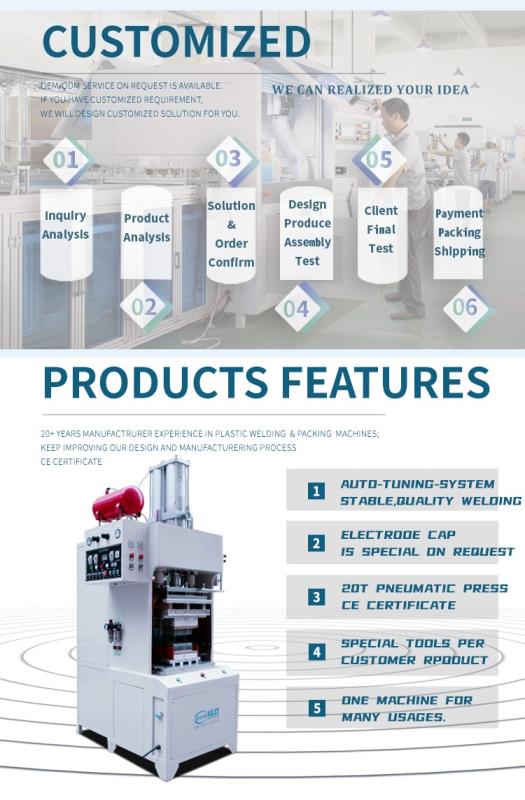

Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed

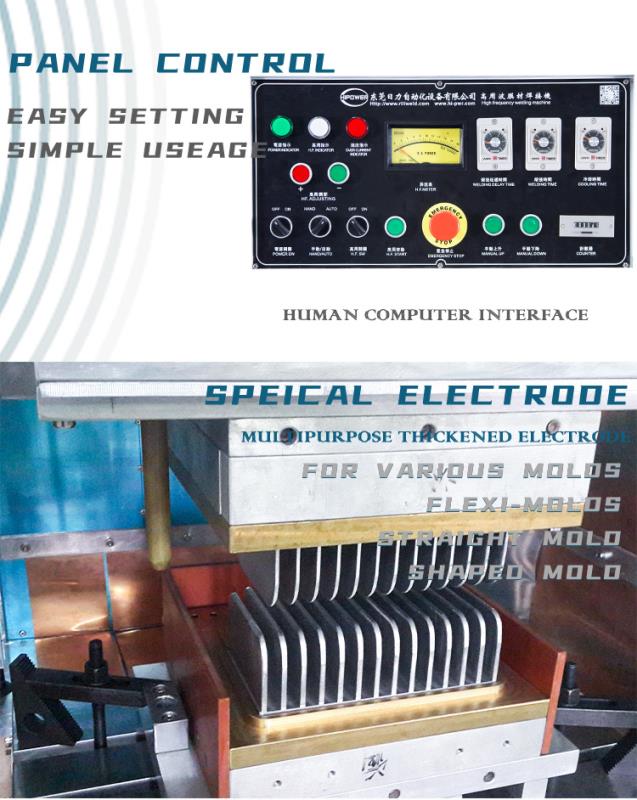

4. operator can easily input parameters set.

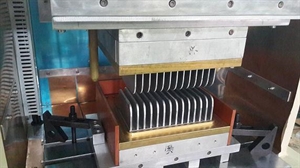

5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films

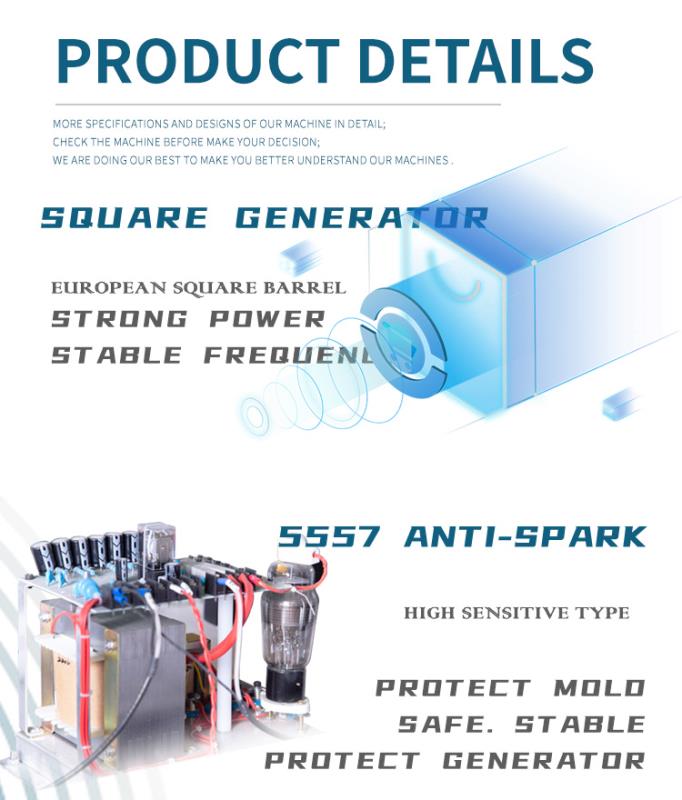

8. European-model square high frequency vibration box, more reliable and stable in output

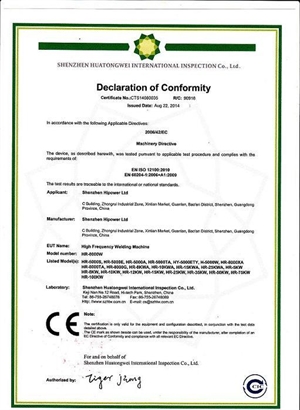

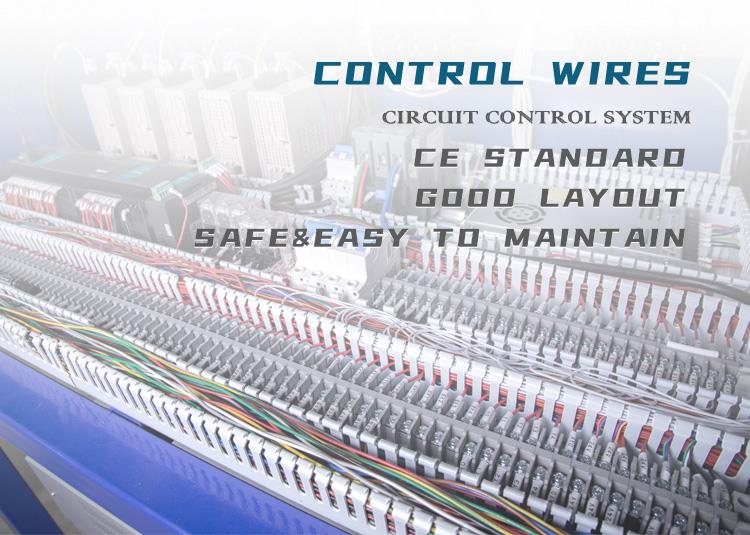

9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional Features:

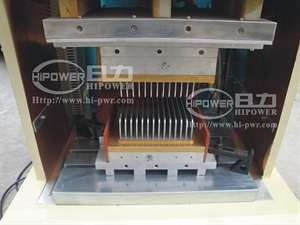

1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

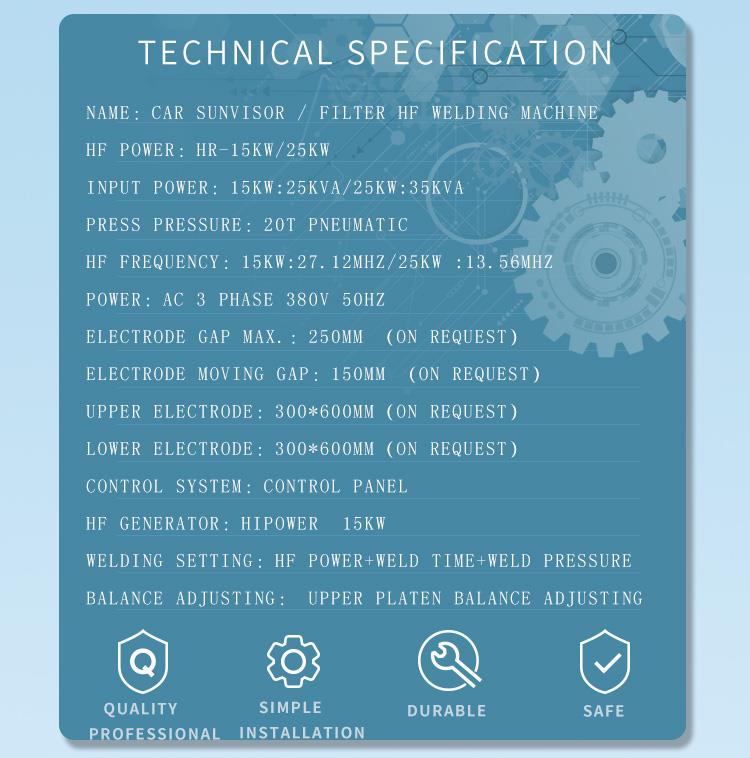

Technical parameter:

Model Item	HR-10KW-20T
Frequency	27.12 MHZ
High Frequency Output Power	10KW
Power Supply	220V/380V, 50-60HZ
Input power	15KVA
Range of temperature	30~200℃ Adjustable
Max pressure	20 Ton
Oscillation Tube	E3069
Arc Suppressing Tube	NL5557
Max Gap of Electrodes	500mm
Upper Electrode	350*500mm
Lower Electrode	400*600mm
Operation mode	Air & Hydraulic(two step pressurizing
