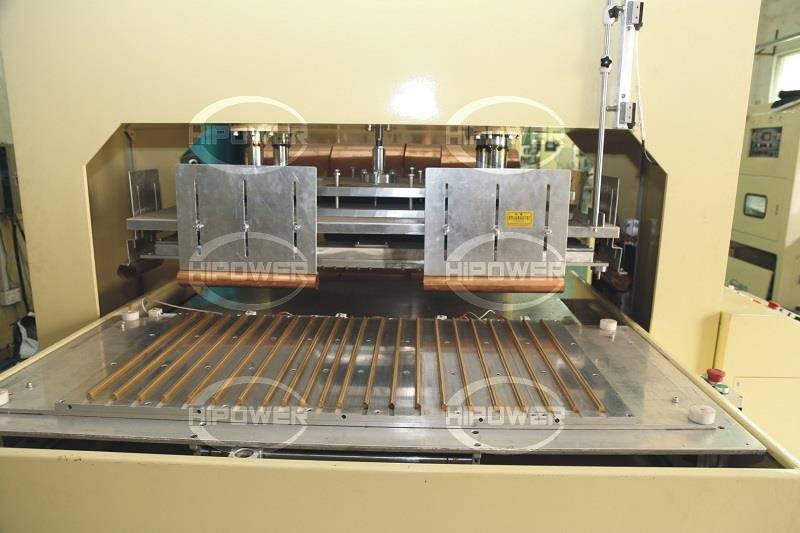

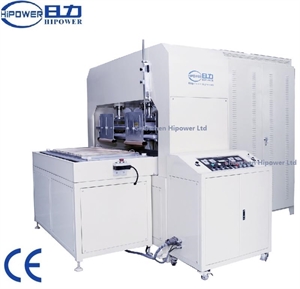

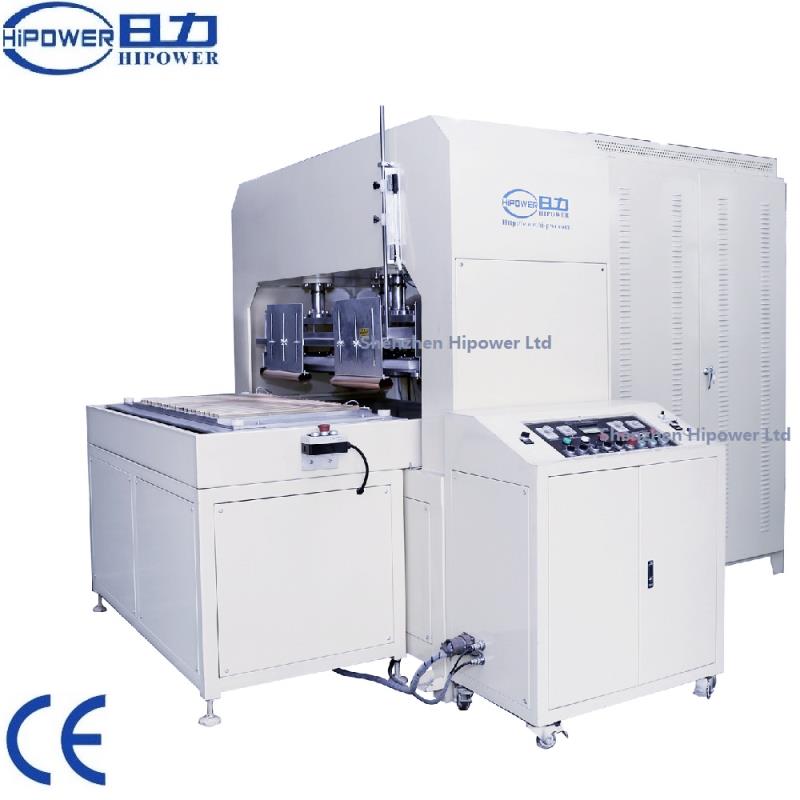

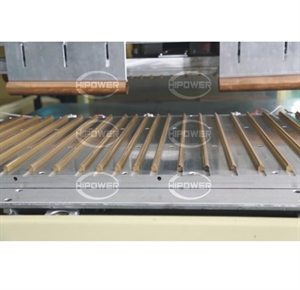

HR-25KW High frequency mattress cover welding machine
| Model： | HR-25KW |
| Scope Of Application： | For welding all kinds of mattress, seat cover, pvc , tpu and leather covers... |
| Features： | CE certificate, single sliding table.welding time can be 0 to 3 minutes. |
HR-25KW High frequency mattress cover welding machine
Application:
For welding all kinds of mattress, seat cover, pvc , tpu and leather covers...
Technical parameter:
|
Model now
|
HR-15KW
|
HR-25KW
|
HR-35KW
|
HR-50KW
|
|
Power
|
15000W
|
25000W
|
35000W
|
50000W
|
|
Power supply
|
380V 50/60HZ
|
|||
|
Frequency
|
27.12/ 13.56MHZ
|
|||
|
Electric power
|
25KVA
|
35KVA
|
50KVA
|
70KVA
|
|
Prectifier
|
SILICON DIODE
|
|||
|
Vibrational tube
|
8T85RB
|
8T25RA
|
8T87RB
|
E3116
|
|
Maxpressure
|
1000kg
|
1000kg
|
1500kg
|
2000kg
|
|
Max gap of electrodes
|
100MM
|
|||
|

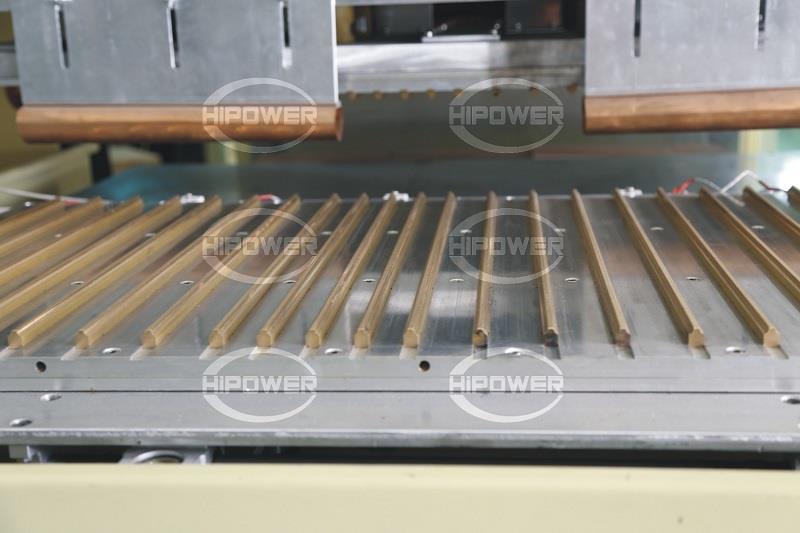

Size of active horn
|
100MM
|
|||
|
Size of upper electrode
|
700*900mm
|
800*100mm
|
1500*1800mm
|
1800*2100mm
|
|
Size of down electrode
|
800*1200mm
|
1000*1400mm
|
1500*2000mm
|
1800*2200mm
|
|
Welding time
|
0~10S Adjustable
|
|||
