Custom Tarpaulin welding machine

Model：	HR-8KW
Scope Of Application：	For pvc membrane, tarpaulin, tents
Features：	CE certificate.

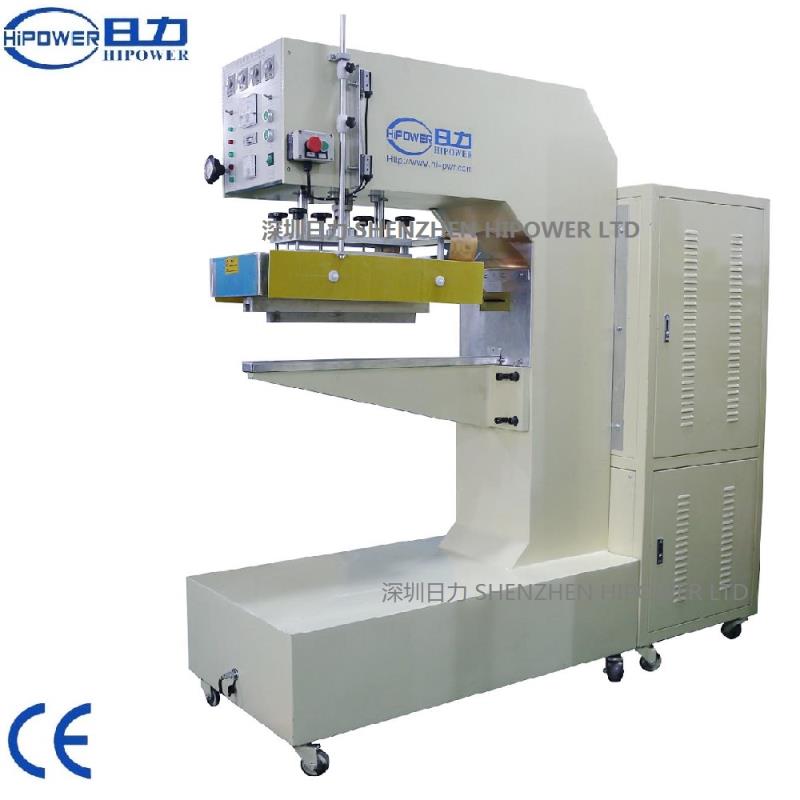

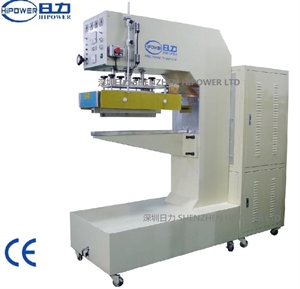

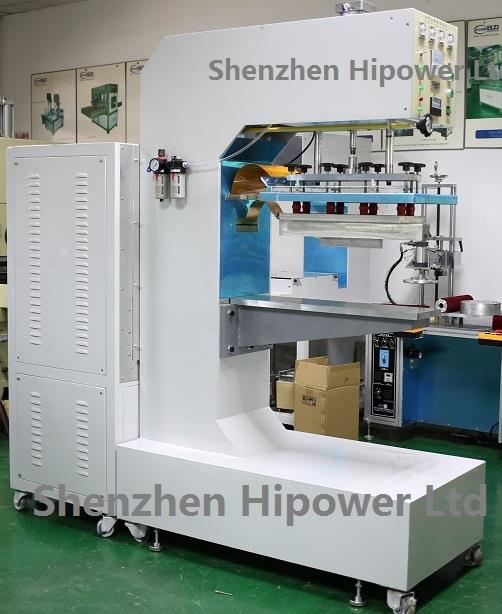

HR-8KW high frequency welding machine

Technical paramters:

Model	HR-15KW	HR-8KW
Output Power of Generator	15KW	8KW
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V 50Hz-60HZ or customize
Frequency	27.12MHz
Input power	25KVA	15KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85RB	7T69RA
Max pressure	1000kg	800kg
Operation mode	Pneumatic Operated
Max gap of electrodes	350mm

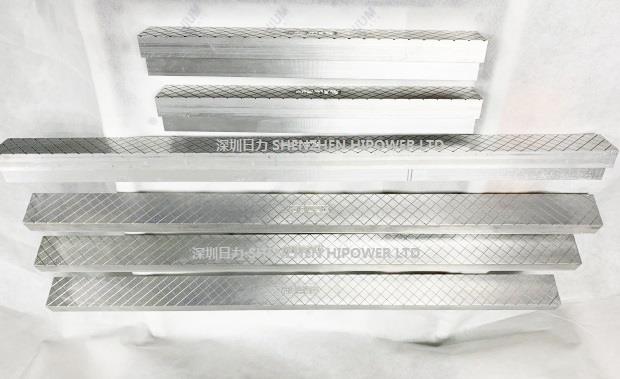

Size of active horn
Upper Electrode (WHL)	200*300mm	200*300mm
Welding time	0.01~9.99s adjustable
Net weight	1300kgs	1400kgs
Space behind electrode	1500mm
Foreseen productivity:	According to welding times and operator skills

Application:

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising printing/ Film cloth, the membrane structure, etc.

Products:

1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelter
