Radio Frequency Welding Machine for PVC Electric Heating Mat
| Model： | HR-5000T |
| Scope Of Application： | Electric Heating Mat welding machine, used to weld electricity tube to pvc mat, with 360 degree welding, the weldign should be water-proof, air proof |
| Features： | double side HF weldingpneumatic double heads machine |
Radio Frequency Welding Machine for PVC Electric Heating Mat
High Frequency Welding and Die Cutting Machine, is applied for industrial usage below:
1. To seal and die-cut blister of PVC
2. Heat mats for pets, house use carpets, cold area,

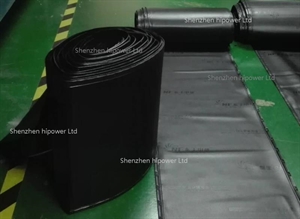

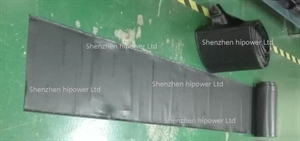

Welded Samples: High Frequency Plastic Welding and Cutting Machine
\
Function:
1. Feeding, pushing material is optional, speed is under control
2. The machine has heating and flatting devive, digital counter
3. Transmission system adopts imported wear resistant resin material
4. No scratch sheets
5. Photoelectric sensor, synchronous collection rack, the control precision
Parameter
|
model |
HR-8000G |
|
HF power |
8KW |
|
Power frequency |
3P 380V 50/60Hz or customize |
|
frequency |
27.12MHz |
|
Input power |
15KVA |
|
rectifier |
SILICON DIODE |
|
Oscillation tube |
7T69RB |
|
Maximum pressure |
20T |
|
Pressure mode |
Air hydraulic |
|
Maximum distance of eletrodes |
200MM |
|
Moving distance of electrodes |
100MM |
|
Upper electrode |
500*700 mm |
|
Down electrode |
600*800 mm |
|
Temperature range |
30 to 200 Adjustable |
|
Welding time |
0.01~9.99S Adjustable |
|
productivity |
Equal or less 5000times/8h |
|
Net weight |
3.6T |
| Gross weight | 3.8T |
|
Overall dimension |
9250*1850*2200 mm |

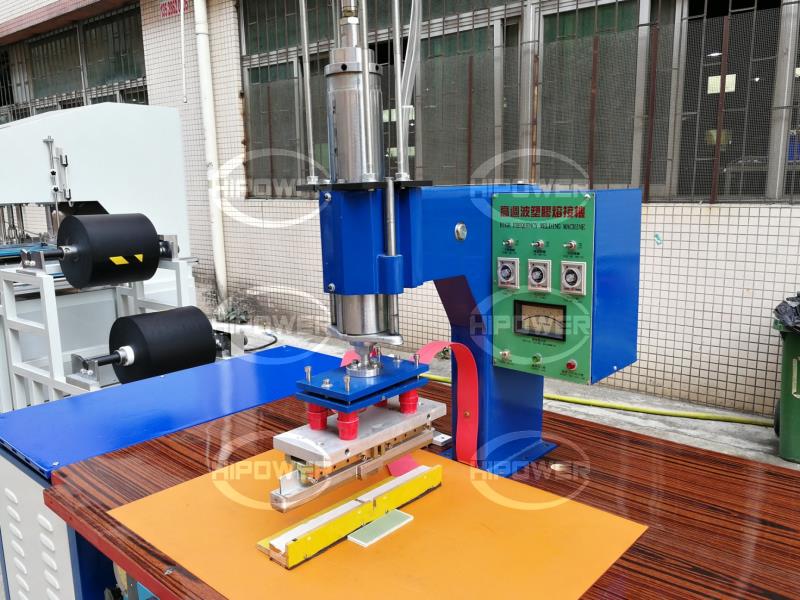

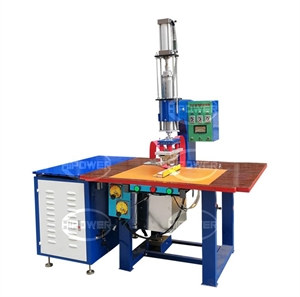

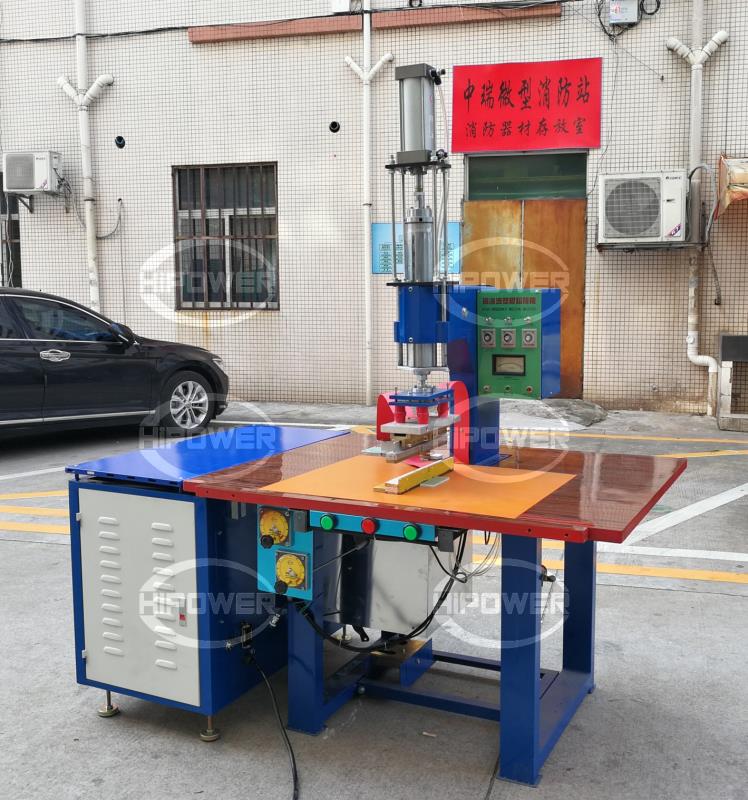

Pictures of machines:
