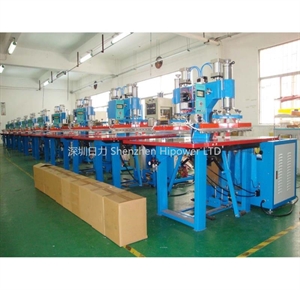

Double Heads HF welding machine
| Model： | HR-5000TA |
| Scope Of Application： | HF welding machine, single head, 5KW. |
| Features： | CE certificates. |
HR-5000TA Single Heads HF welding machine
Technical parameter:
| Model | HR-4000TA | HR-5000TA | HR-8000TA | HR-10KWTA |
| Power | 4000W | 5000W | 8000W | 10000W |
| Voltage | 220v/380V 50/60HZ | |||
| Frequency | 40.68MHz | 27.12MHz | ||
| Input power | 7KVA | 8KVA | 15KVA | 18KVA |
| Rectifier | silicon diode | |||
| Oscillation tube | 7T62RB | 7T85RB | 7T69RB | E3069RB |
| Max pressure | 200kg | 250kg | 280kg | 300kg |
| Operation mode | pneumatic | |||
| Max distance of electrodes | 200mm | |||
| The moving distance of active horn | 100mm | |||
| The size of upper electrode | 120*290mm | |||
| The lowwer of lowwer electrode | 350*700mm |
|
||
| The range of tempreture | 30~200 oC adjustable | |||
| Welding time | 0---10sdjustable | |||
| Productivity | < 3500times/8hours | |||
| Net weight | 280kg | 330kg | 360kg | 420kg |
| Overall dimension | 1720*1100*1450 | 1720*1100*1500 | 1800*1200*1700 | 2500*1500*1700 |
