it is our new machine designed,
It has been manufacturered and tested successfully,
we plan to delivered the machine to our Chinese customer in June 2014.
If you have interest to see working process of this machine at our factory, please make visiting plan soon. Thanks.

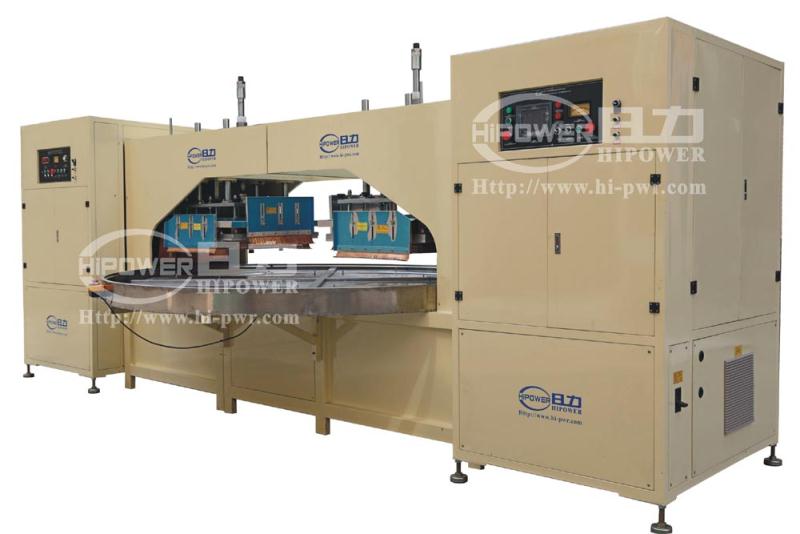

Here is machine picture, specification and drawing scap for this machine:
Unique Features:
|
1. CE rated machine; easy opeartion, training and maintainace |
|||||
| 2. Customer's site installation, training & maintainance available | |||||
| 3. Grounding Press Platen behind welding electrode, to prevent hurting workers during welding process | |||||
| 4. Copper Made Transformer; NL-5557 anti-spark system; European style HF generator design; | |||||
| 5. Optional design on request: Servo-motor; PLC control, Human-machine-interace system | |||||
| 6. Double HF heads, turn-table welding machine |
Machine Views:
| Model | HR-25KWS |
| Power | 25000W |
| Supply power | 380V 50/60Hz |
| Frequency | 27.12 MHz |
| Input supply | 35KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 8T25RA |
| Max pressure | 40T |
| Gap of electrodes | 150MM |
| Distance of active horn | 1500MM |
| Size of upper electrode | 750*750MM |
| Size of buttom electrode | 750*750MM |
| Temperuture Scale | 20~300 Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 4000times / 8 hours |
| Mode of Pressure | Oil Pressure |
