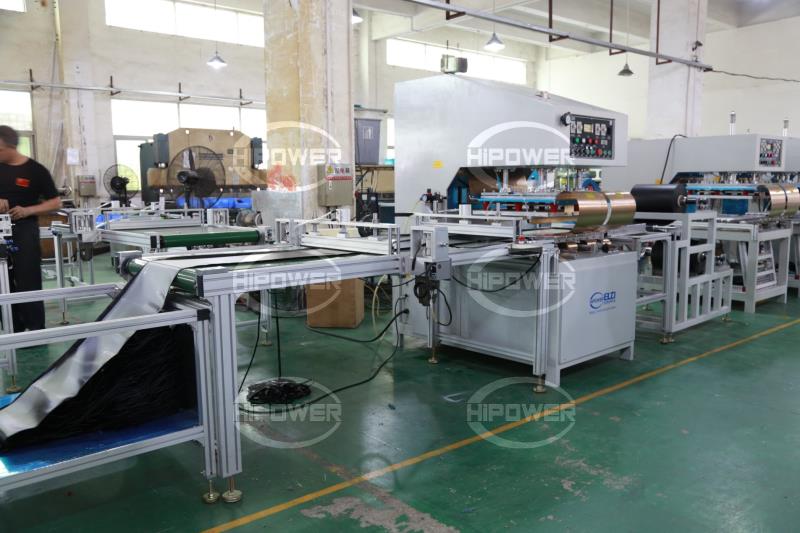

HF welding machine for graphene thermo mat, graphene heating mat welding machine, pvc heating mat welding machine, thermo mat welding machine

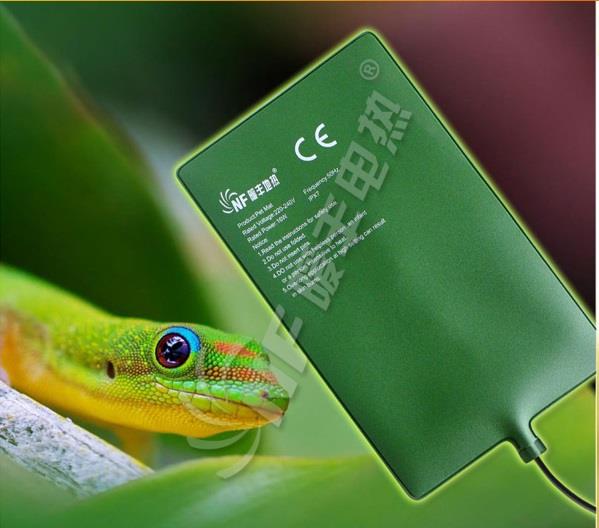

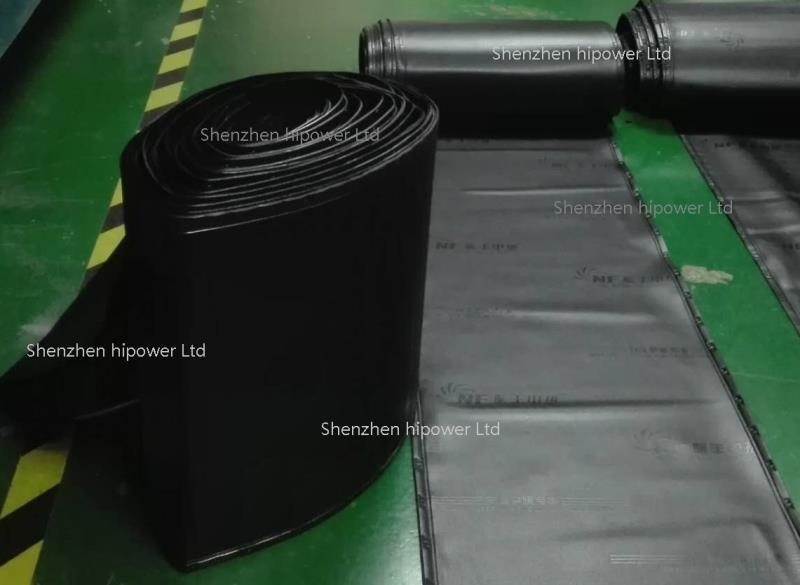

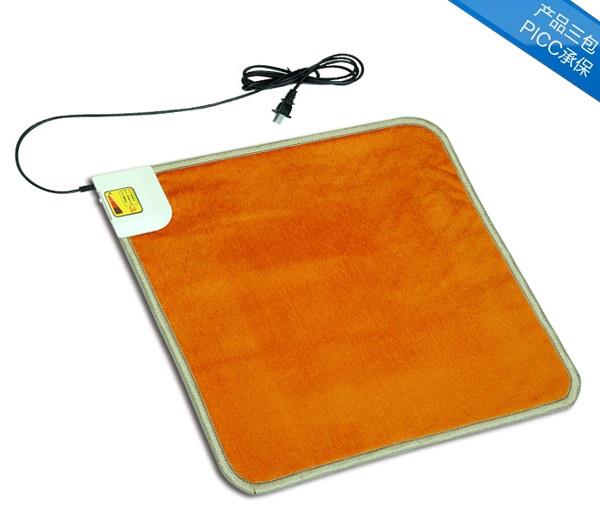

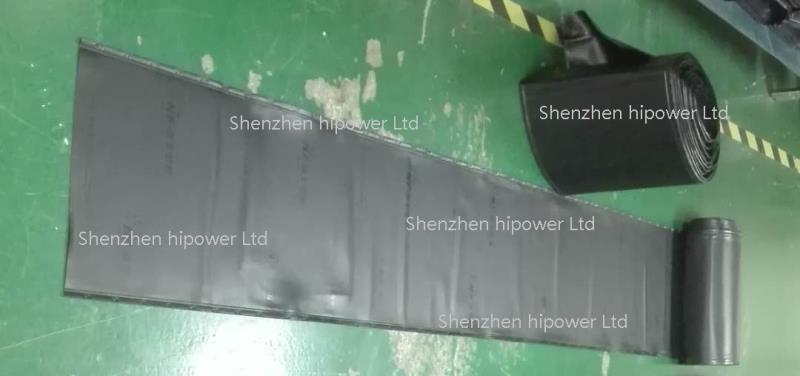

Welded Samples: High Frequency Plastic Welding and Cutting Machine
\
high frequency PVC heat mats, Pets Mats, pvc mat forming machine,
heat mat machine, pvc mat welding machine,
Function:
1. Feeding, pushing material is optional, speed is under control
2. The machine has heating and flatting devive, digital counter
3. Transmission system adopts imported wear resistant resin material
4. No scratch sheets
5. Photoelectric sensor, synchronous collection rack, the control precision
Parameter
|
model |
HR-8000G |
|
HF power |
8KW |
|
Power frequency |
3P 380V 50/60Hz or customize |
|
frequency |
27.12MHz |
|
Input power |
15KVA |
|
rectifier |
SILICON DIODE |
|
Oscillation tube |
7T69RB |
|
Maximum pressure |
20T |
|
Pressure mode |
Air hydraulic |
|
Maximum distance of eletrodes |
200MM |
|
Moving distance of electrodes |
100MM |
|
Upper electrode |
500*700 mm |
|
Down electrode |
600*800 mm |
|
Temperature range |
30 to 200 Adjustable |
|
Welding time |
0.01~9.99S Adjustable |
|
productivity |
Equal or less 5000times/8h |
|
Net weight |
3.6T |
| Gross weight | 3.8T |
|
Overall dimension |
9250*1850*2200 mm |
