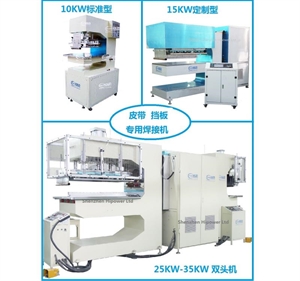

25KW-2C conveyor belt welding machine
Model: | HR-25KW-2C |

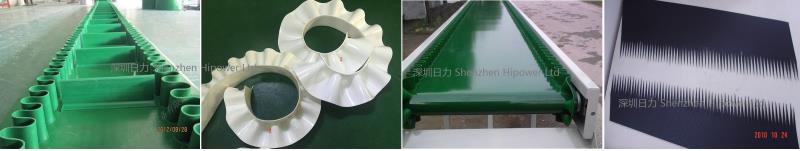

Scope Of Application: | High frequency welding machine for treadmill and conveyor belt,treadmill belt , conveyor belt, side wall,profile and conveyor belt welding machine |
Features: | equipt with a more humanized safetyprotection device , can greatly improve safety.European model squarness high frequency vibration box,the output is larger and more stable; |

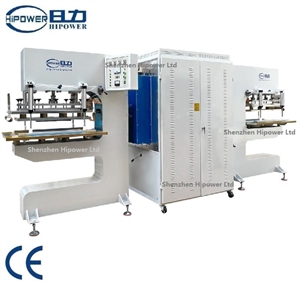

HR-25KW-2C conveyor belt welding machine
Feature of the machine:

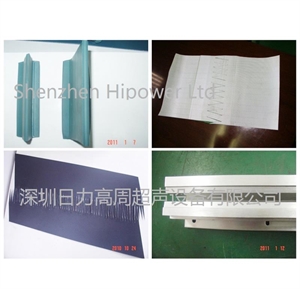

1.specialize for connecting treadmill belt welding machine, conveyor belt...2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3.Machine groove deep and wide,conveninent in continuous welding with large area.
4.Adopting high sensitive anti sparkle device,avoid damaging the mould
5.High quality imported apparatus,the longest welding extended to 800mm~1000mm one time
6.European model square high frequency vibration box,more realible and stable in output.
Specification:
Model | HR-15KW-2C | HR-25KW-2C | HR-35KW-2C |
Power | 15kW | 25kW | 35kW |
Voltage | 3phase 380v 50Hz or customize | ||
Frequency | 27.12MHz 13.56MHz | ||
Input power | 25KVA | 35KVA | 50KVA |
Rectifier | silicon diode | ||
space behind electrode | 1150mm | ||
Oscillation tube | 8T85RB | 8T25RA | 8T87RB |
Max pressure | 1000kg | 1500kg | 1500kg |
Operation mode | pneumatic | ||
Max distance of electrodes | 150mm | ||
The moving distance of active horn | 150mm | ||
The size of upper electrode | 150*600mm | 150*700mm | 150*800mm |
The lowwer of lowwer electrode | 250*750mm | 250*850mm | 250*950mm |
Welding time | 0.01~9.99s | ||
Net weight | 1500kg | 1800kg | 2000kg |
Overall dimension | 1700*1480*1740 | 1980*1480*2350 | 2050*1480*2500 |
