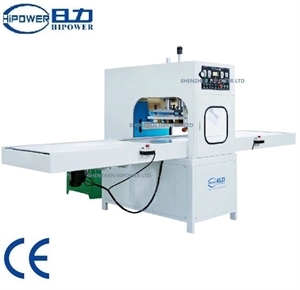

HR-5000WT High Frequency welding&cutting machine

Model：	HR-5000WT

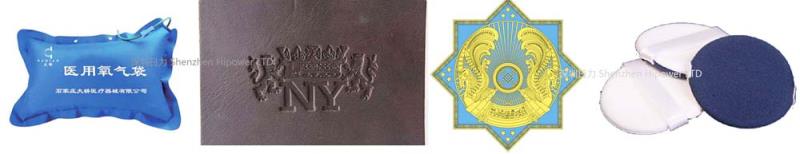

Scope Of Application：	Application Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting
Features：	We have divided our high frequency synchronous welding and cutting machines into several different product categories; 1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot) 2.automatic slid

HR-5000WT High Frequency welding&cutting machine

Feature
product categories
We have divided our high frequency synchronous welding and cutting machines into several different product categories;
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)
2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
5.manual turntable high frequency only welding machine(with/without robot),

Stable frequency
In strict accordance with the requirements of "Committee on Radio Interference" (CISPR).
Oscillation Frequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.
Minimal interferes with the outside equipment. European model squarness high frequency vibration box to support more realible and stable in output.

Spark restrains
    With NL-5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time warning lights will send you the alert.
Strong out-put power
    Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency. Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation
Different output power based on product size and thickness is available. You can control the welding and guarantee the homogeneity of the quality

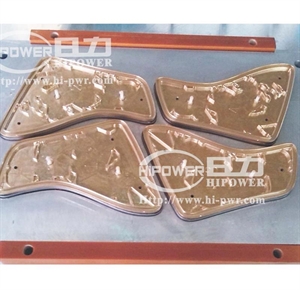

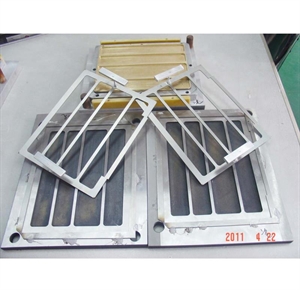

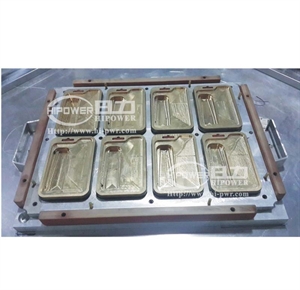

Welding mould(die)
    High frequency machine must work with high frequency welding die. More than getting perfect welding and cutting effect,we do some special treatment on the welding die by ourselves to make it more durable. Our client can use it for about 10 million times without any replacement of the down mould.
Security
    With over-voltage, over-current protection devices, can automatically cut off the supply to protect the oscillation tube and the rectifier, at the same time avoid frequency drift.

Technical parameter:

Model	HR-5000WT
Power	5000W
Supply power	3P 220V/380V 50Hz/60Hz & Customized
Frequency	27.12Mhz
Input supply	8KVA
Rectifier	Silicon Diode
Oscillation tube	7T85RB
Max pressure	5T
Gap of electrodes	200MM
Distance of active horn	150MM
Size of upper electrode	300*400MM
Size of buttom electrode	350*450MM
Temperuture Scale	20~300 Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 4000times / 8 hours
Net weight	1T
Packing Dimension	92012002060MM
