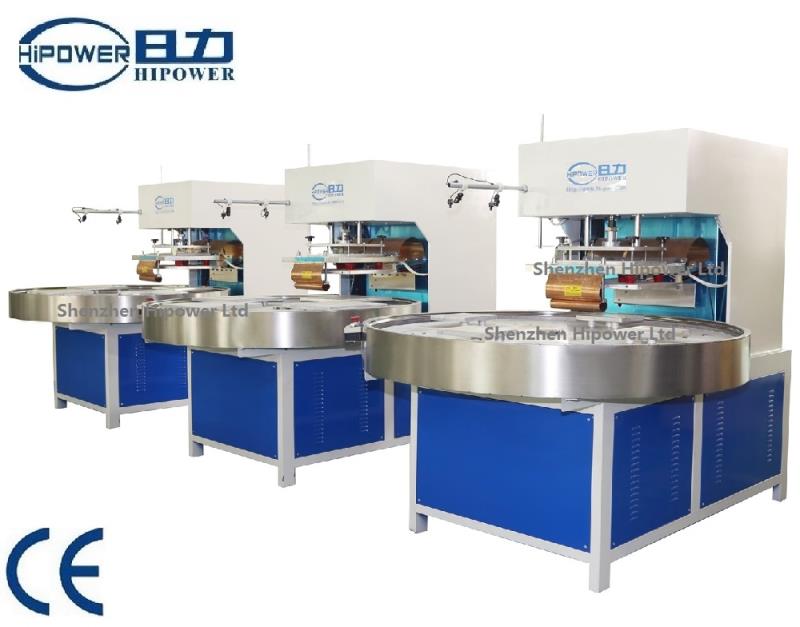

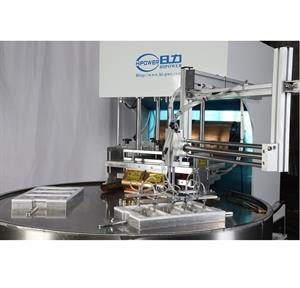

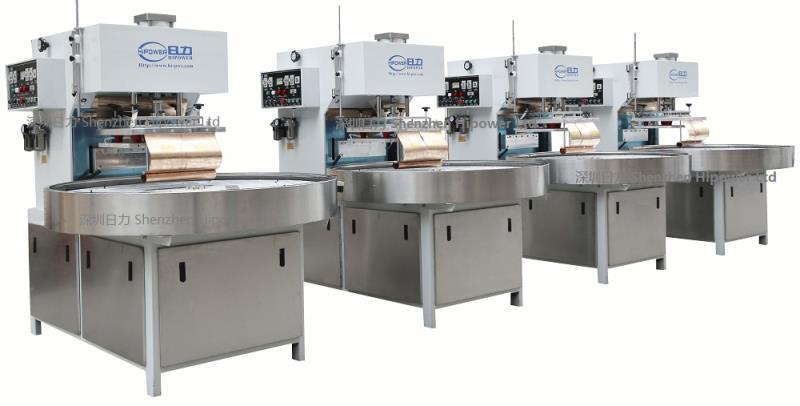

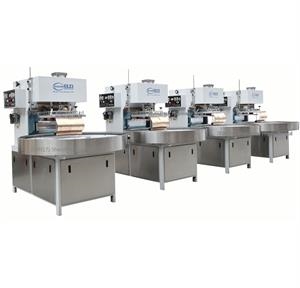

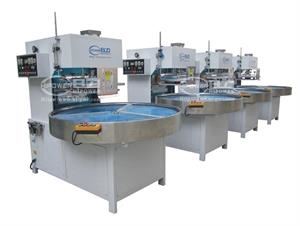

HR-12KWET-4AC Auto rotary table high frequency welding machine for Non-Wafer packing
| Model： | HR-12KWET-4AC |
| Scope Of Application： | Application: Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting |
| Features： | 1.Discal plate with multi-work positions;2.Pneumtic & hydraulic;3.Welding and cutting at the same time;4.NL-5557 anti-spark device;5.Home-made tube or Toshiba tube optional;6.Robot arm optional. |
Applications :
1.battery blister package, clamshell packing,
2.clamshell toothbrush packing,
3.Covering tarpaulins, side tarpaulins,
4.Water basins, agricultural products
5.Coverings, sleeves
6.Awnings (screen cloth)
7.Blister packaging
8.Stationery (folders, albums, demonstration files etc.)
9.Car mats (welding on heel pieces and logo's)

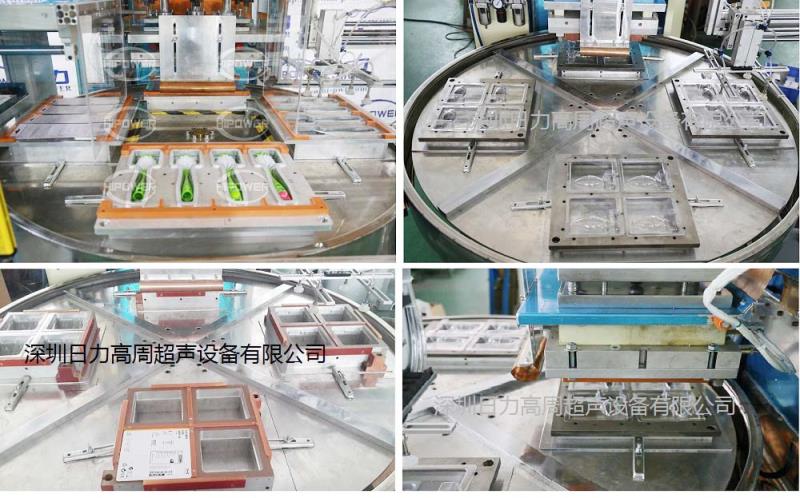

1.Discal plate with multi-work positions;
2.Pneumtic & hydraulic;
3.Welding and cutting at the same time;
4.NL-5557 anti-spark device;
5.Home-made tube or Toshiba tube optional;
6.Robot arm optional.
Technical parameter:

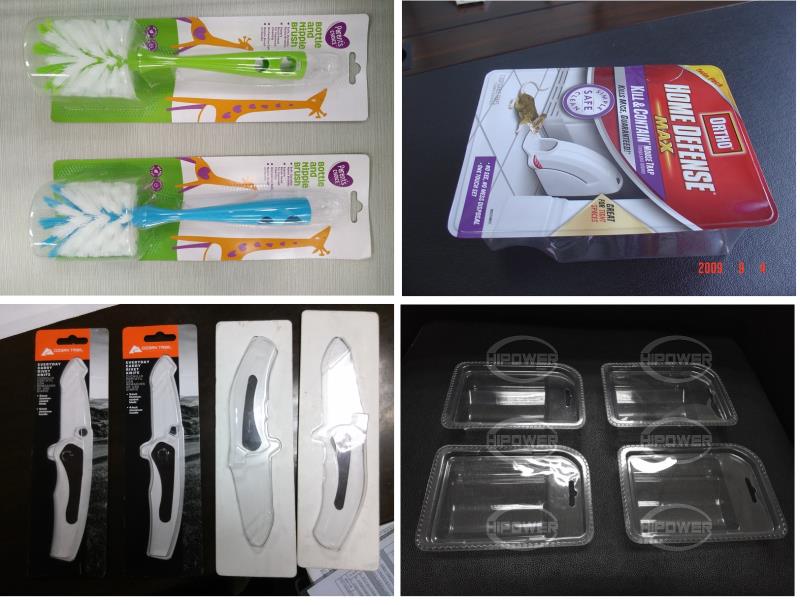

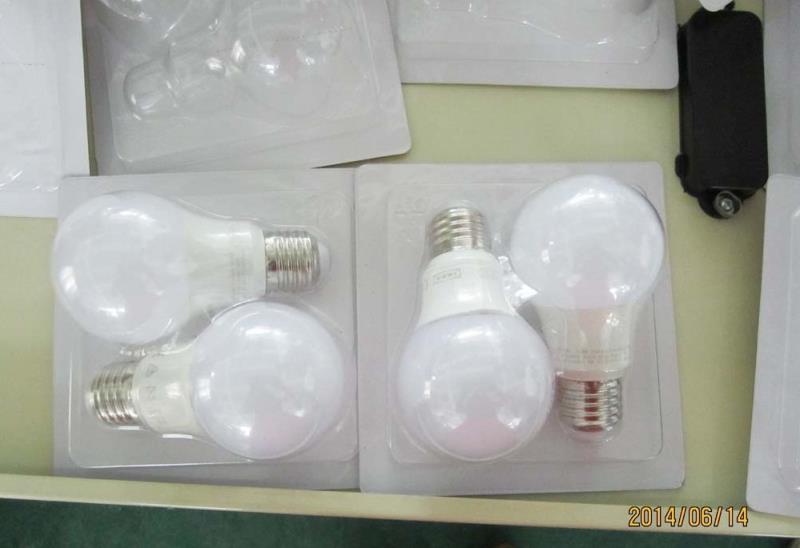

Samples view:
1.battery blister package, clamshell packing,
2.clamshell toothbrush packing,
3.Covering tarpaulins, side tarpaulins,
4.Water basins, agricultural products
5.Coverings, sleeves
6.Awnings (screen cloth)
7.Blister packaging
8.Stationery (folders, albums, demonstration files etc.)
9.Car mats (welding on heel pieces and logo's)
10.PVC and PU conveyor belts
1.Discal plate with multi-work positions;
2.Pneumtic & hydraulic;
3.Welding and cutting at the same time;
4.NL-5557 anti-spark device;
5.Home-made tube or Toshiba tube optional;
6.Robot arm optional.
Technical parameter:
| Model | HR-8000ET | HR-10KWET | HR-12KWET | HR-15KWET | |
| Output Power | 8000W | 10000W | 12000W | 15000W | |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | ||||
| Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize | ||||
| Frequency | 27.12MHz | ||||
| Input power | 15KVA | 18KVA | 20KVA | 25KVA | |
| Rectifier | SILICON DIODE | ||||
| Oscillation tube | 7T69RB | E3069RB | E3130RB | 8T85RB | |
| Max pressure | 500kg | 500kg | 800kg | 1000kg | |
| Operation mode | Pneumatic Operated (Hydraulic pressure upon request) | ||||
| Max gap of electrodes | 200mm | ||||
| Size of active horn | 175mm | ||||
| Working Stations: | Standard 3 ,4 , 6 , 8 Rotary work stations | ||||
| Upper Electrode (W*H*L) | 300*400mm | 300*400mm | 350*450mm | 400*500mm | |
| Size of Work Table (L*W) | 350*450mm | 350*450mm | 400*500mm | 400*500mm | |
| Welding time | 0.01~9.99s adjustable | ||||
| Net weight | 1500kgs | 1500kgs | 1500kgs | 1500kgs | |
| Foreseen productivity: | 5/7 cycles/min depending on welding and rotating times, and operator skills | ||||
