HR-25KW-4AC Double heads high frequency car air filter pocket

Model：	HR-25KW-4AC
Scope Of Application：	For car air filter welding,two working stations design.
Features：	1. Anti-flash system, to protect the tooling / mould; bridge-Frame welded steel structure with integrated HF generator2. Equipped with special high precision rotary indexing gear controlled by frequency inverter. 3. Automated HF weld cycles with adjus

Machine General Features:
1. Anti-flash system, to protect the tooling / mould; bridge-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, non-woven paper,filter cotton.

8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;

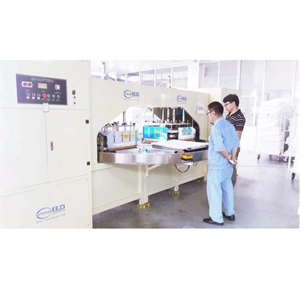

10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

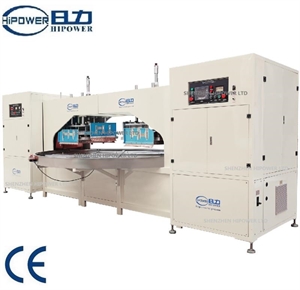

High frequency welding machine for car air filter

1. Special mechanical structure design can provide a stable and uniform pressure

2.It has high sensitive spark restraint electrocircuit that can check out the imbalance current

which can bring park and cut it off and alert the operator.

3. It is special designed and manufactured for making air filter base on the standard model ofour HF welding and cutting machine

Technical specification:

Model ： HR-25KW-4AC

H.F POWER：     25KW
POWER SUPPLY： 380V 50/60HZ
FREQUENCY ：    13.56MHZ
INPUT POWER： 35KVA
RECTIFIER： SILICON DIODE
VIBRATIONAL TUBE：    8T25RA
MAX PRESSURE：       2T

MAX GAP OF ELECTRODE： 200mm
SIZE OF ACTIVE HORN：        150mm
SIZE OF UP ELECTRODE： 750*750mm
SIZE OF DOWN ELECTRODE： 750*750mm
WELDING TIME：   0---10S
