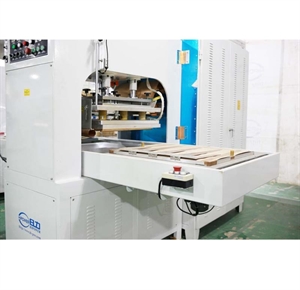

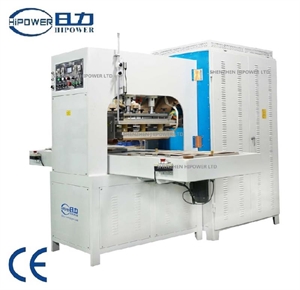

HR-25KWAT High frequency air filter pocket welding machine
| Model： | HR-25KWAT |
| Scope Of Application： | specially designed for pocket air filter welding machine;non-woven air filter, pp air filter.. |
| Features： | automatic slide table;auto tuning functionheating function at upper electrode available. |
HR-25KWAT High frequency air filter pocket welding machine
Character of the machine:
1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.
2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um. 3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.
3. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.
High Frequency welding machine has been wildly used in the process of producing various products. such as :
1. Toy stationery, such as :Gift bag, basketball embossing, album inner page, the inner page of business card,mousepad, glasses case,etc.
2. Leather suitcase ,such as Leather embossing,coining,heat-sealing,welding&cutting simultaneously,PVC Entrance Mats,carpet embossing,carpet ,shoepad ,car floor mat ,cushion,etc.
3. Automotive interior products, Such as: steering wheel cover,Back seat cushion,life jacket,drifting boat,curtain,shower curtain,inflatable pool & mattress & sofa,ect.
Technical parameter:
|
Model
|
HR-15KW
|
HR-25KW
|
HR-35KW
|
HR-50KW
|
|
Power
|
15000W
|
25000W
|
35000W
|
50000W
|
|
Power supply
|
380V 50/60HZ
|
|||
|
Frequency
|
27.12MHZ 13.56MHZ
|
|||
|
Electric power
|
25KVA
|
35KVA
|
50KVA
|
70KVA
|
|
Prectifier
|
SILICON DIODE
|
|||
|
Vibrational tube
|
8T85RB
|
8T25RA
|
8T87RB
|
E3116
|
|
Maxpressure
|
1000kg
|
1000kg
|
1500kg
|
2000kg
|
|
Max gap of electrodes
|
100MM
|
|||
|
Size of active horn
|
100MM
|
|||
|
Size of upper electrode
|
700*900mm
|
800*1000mm
|
1000 *1800mm
|
1500* 2100mm
|
|
Size of down electrode
|
800*1200mm
|
1000*1400mm
|
1200*2000mm
|
1500*2200mm
|
|
Welding time
|
0~10S Adjustable
|
|||
