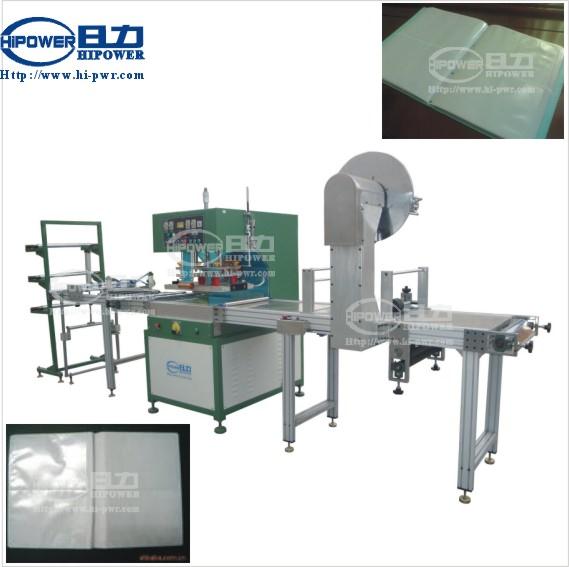

HR-8000G Inner Page/Card Sleeve Making Machine ( Motor Roller system)
| Model： | HR-8000G |
| Scope Of Application： | PVC photo album, internal-page, Credit Card Pocket, ID Card sleeve, note-book inner page... |
| Features： | 1.Optional of feeding-transfering material simultaneously,adjustable operating speed. 2.Electronic counting,continuous automatic feeding speed,suitable for different materials. 3.Exported abrasion proof of transformation,avoid damaging the mould. |
Feature:
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.
4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.
5.Motor Driving material feeding device installed
6. Waste collecting device installed
Technical parameter:
|
Model |
HR-8000G |
|
Power |
8000W |
|
Vlotage |
380V 50/60Hz or custom |
|
Frequency |
27.12MHz |
|
Input power |
15KVA |
|
Rectifier |
SILICON DIODE |
|
Viboration tube |
7T69RB |
|
Maximum pressure |
500kg |
|
Max gap of electrodes |
100MM |
|
Size of active horn |
100MM |
|
Size of upper electrode |
500*700mm |
|
Size of working plate |
600*800mm |
|
Scale of tempreture |
0~200 Adjustable |
|
Welding time |
0~10S Adjustable |
|
Productivity |
Equal or less 6000times/8h |
|
Net weight |
1600kg |
|
Dimension |
4500*1250*2000 |

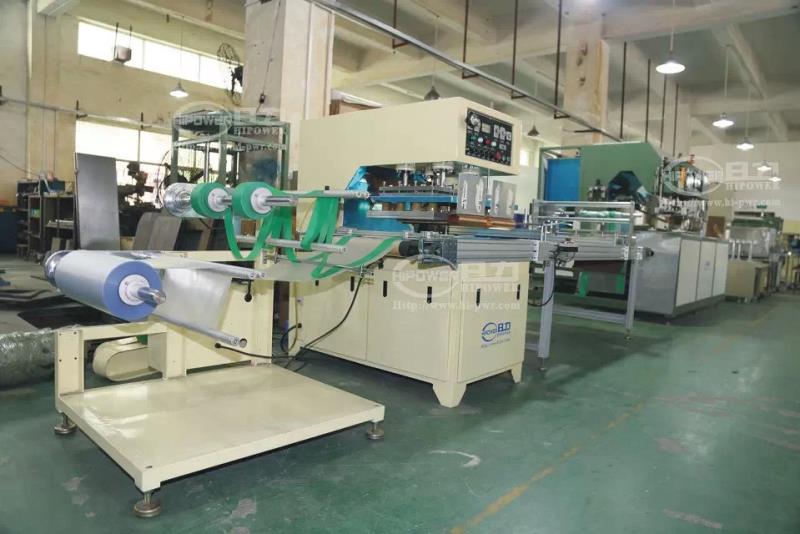

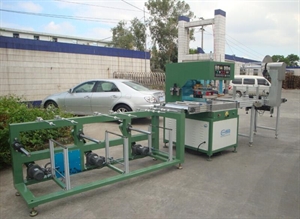

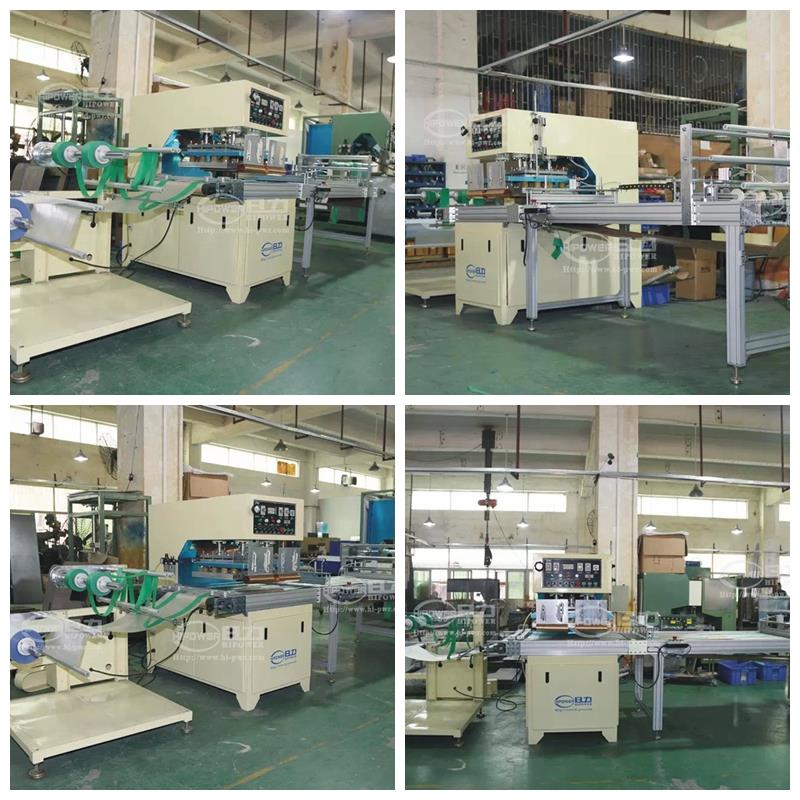

On the site:

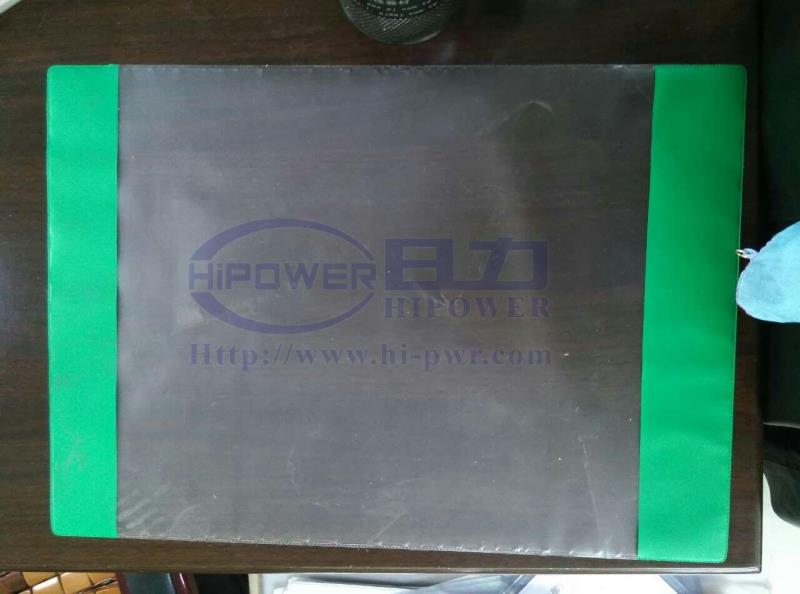

Sample view:

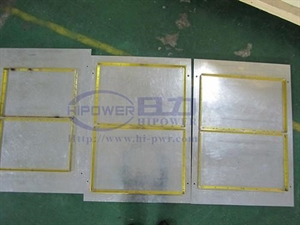

Mould view:

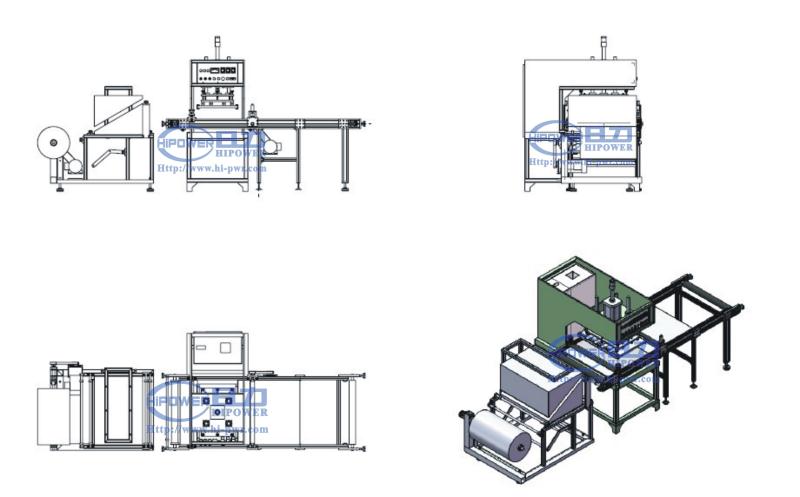

Drawing:
