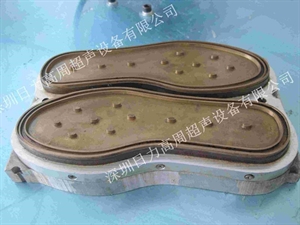

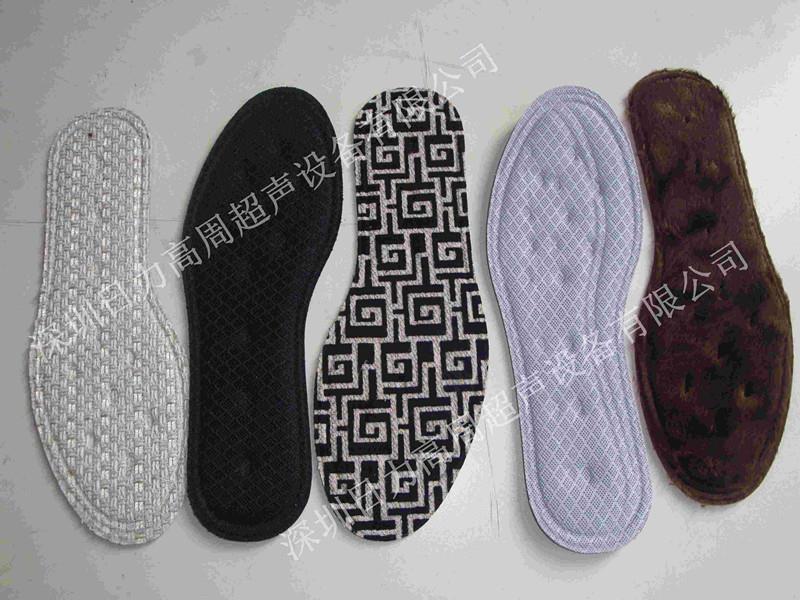

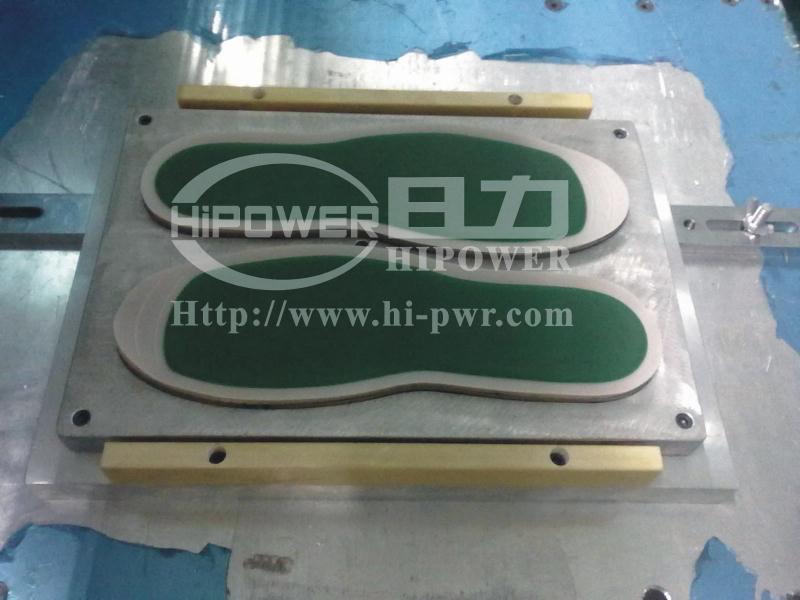

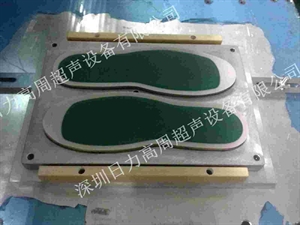

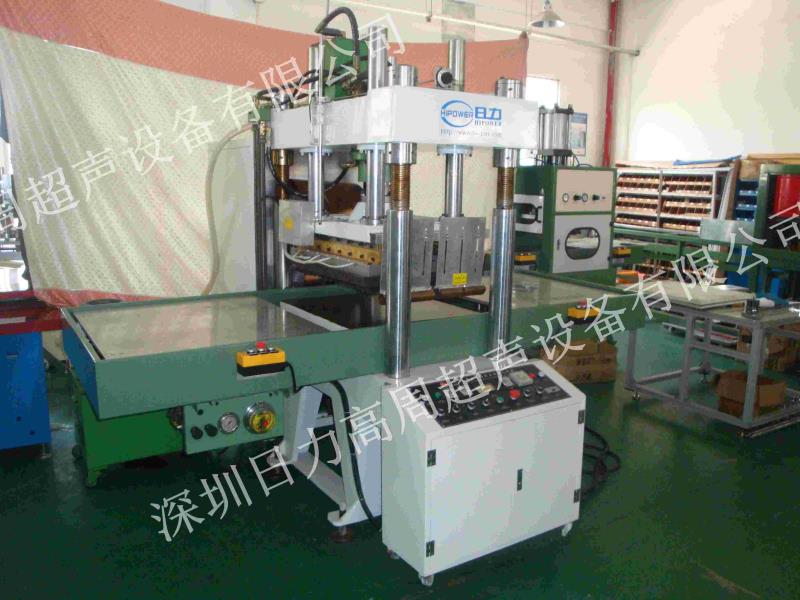

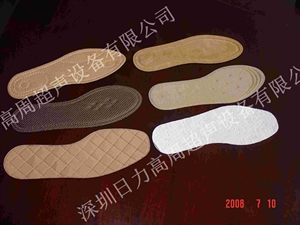

HR-25KW-30T High Frequency insole welding and cutting machine

Model：	HR-25KW-30T
Scope Of Application：	Automatic high frequency insole forming machine is suitable for insole welding, edge cutting and PVC, EVA, PU, plastic boxes soft crease line Automatic high frequency insole forming machine equips with automatic feeding system with adjustable feeding spee
Features：	Automatic high frequency insole forming machine is suitable for insole welding, edge cutting and PVC, EVA, PU, PETG, APET, GAG plastic boxes soft crease line

1.Automatic high frequency insole forming machine is suitable for insole welding, edge cutting and PVC, EVA, PU, PETG, APET, GAG plastic boxes soft crease line

2.Automatic high frequency insole forming machine equips with automatic feeding system with adjustable feeding speed, max pressure 35T

3.Electronic counter, flatten system suit for various material

4.Automatic high frequency insole forming machine adopts imported wear-resistant colliod material which avoid damage material sheets

5.Automatic high frequency insole forming machine adopts photoelectric feeder controlling precisly.

Specification:

Model	HR-15KWT	HR-25KWT
Power	15KW	25000W
Power supply	380V 50/60Hz
Frequency	27.12MHz	27.12MHz
Input power	15KVA	15KVA
Rectifier	SILICON DIODE
Oscillation tube	7T69RB	8T85RB
Max pressure	1000kg	1500kg
Gap of electrodes	150MM
Moving distance of active horn	150MM
The size of upper electrode	700*900mm	800*1000mm
The size of lowwer electrode	800*1200mm	900*1200mm
The range of temperature	30~200¡æ Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 6500times/8h
