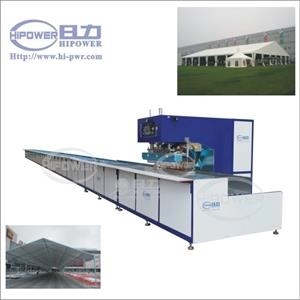

Auto Steps HF Welding Machine for PVC Tarpaulin/Tents
| Model： | HR-15KWA |
| Scope Of Application： | powered by high-frequency, can welding products like PVC digesters, PVC tanks, PVC childrens pool. can also be used to jiont car canvas tarp, tent cloth , movie screen and so on.a seam is done by one time with good looking weld seam , no wrinkles, no too |
| Features： | Automatic walking, precise location, without moving the material and machine. Using the smart man-machine interface PLC operating system, step or servo motor drived. |
HR-15KWA Auto Steps HF Welding Machine for PVC Tarpaulin/Tents/Large Covers
High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers
Application:

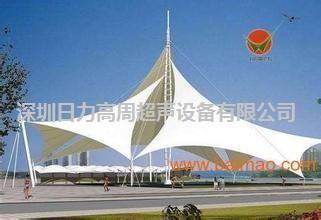

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy,swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth,the membrane structure, etc.
Products:
1. Large format technical textiles
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide.
All machines are completely safe for the operator and fully comply with CE regulations.
Machine General Features:
1. Servo-motor; Touch screen programmable HMI / PLC
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

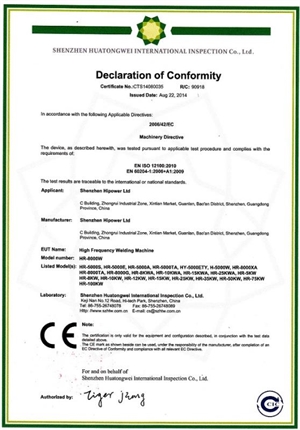

5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
9.Customized work table dimensions, electrode holder dimensions, tooling
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
11. High frequency welding press pneumatically operated
12. C-Frame / G frame welded steel structure with integrated HF generator
Optional Features on Request:
Precision straight bar welding up to 1500x50mm
High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy,swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth,the membrane structure, etc.
Products:
1. Large format technical textiles
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide.
All machines are completely safe for the operator and fully comply with CE regulations.
Machine General Features:
1. Servo-motor; Touch screen programmable HMI / PLC
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
9.Customized work table dimensions, electrode holder dimensions, tooling
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
11. High frequency welding press pneumatically operated
12. C-Frame / G frame welded steel structure with integrated HF generator
Optional Features on Request:
Precision straight bar welding up to 1500x50mm
samples：
Sample view:1. HF Filter unit available
1. Auto-high frequency tuning technology
2. Precision straight bar welding up to 1500x50mm
3. Vacuum table available
4. Welding electrode temperature thermostat

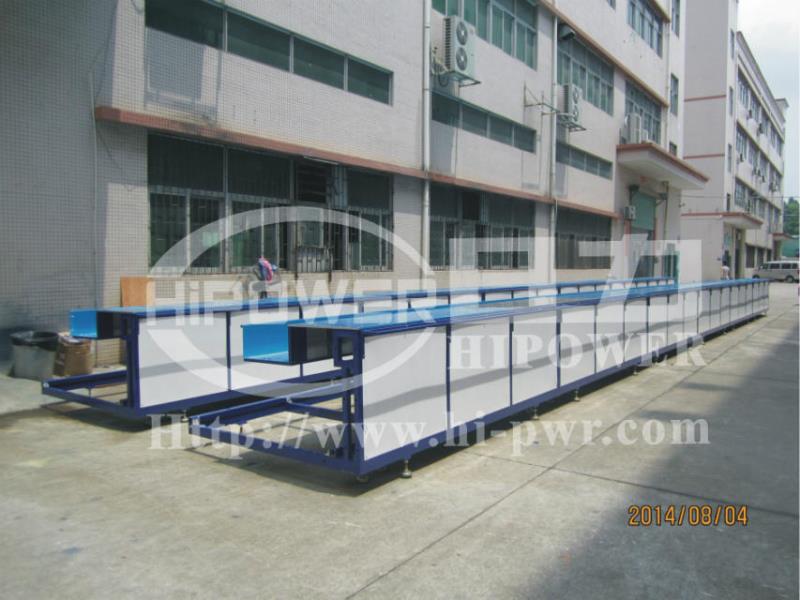

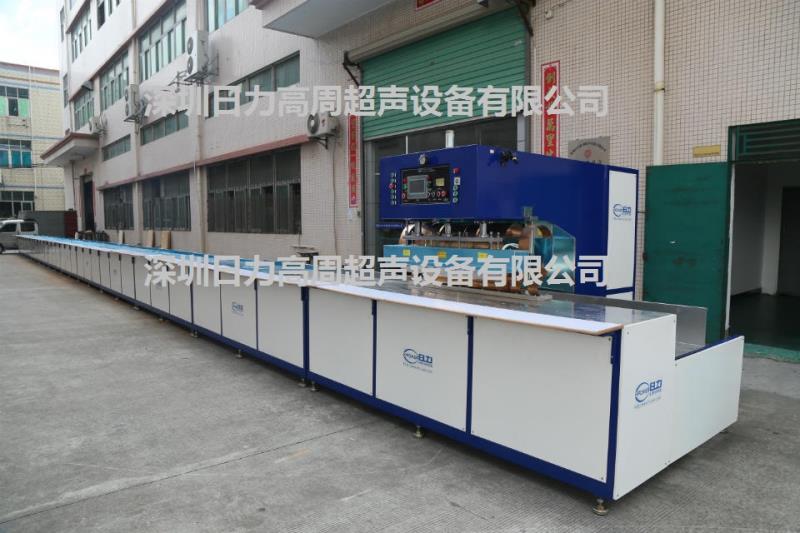

machine：

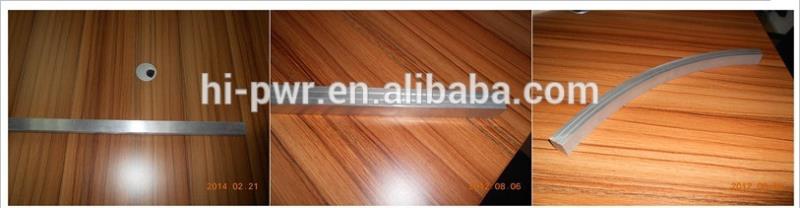

mould：

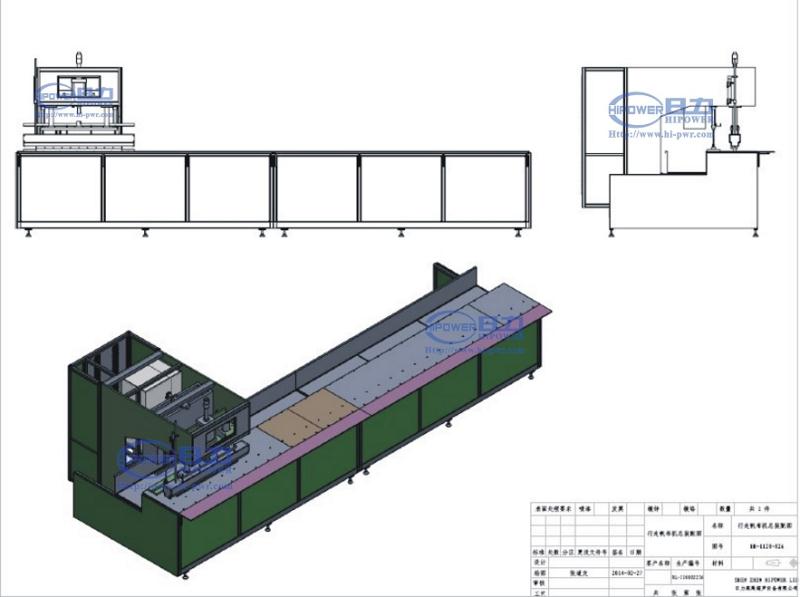

Drawing:
