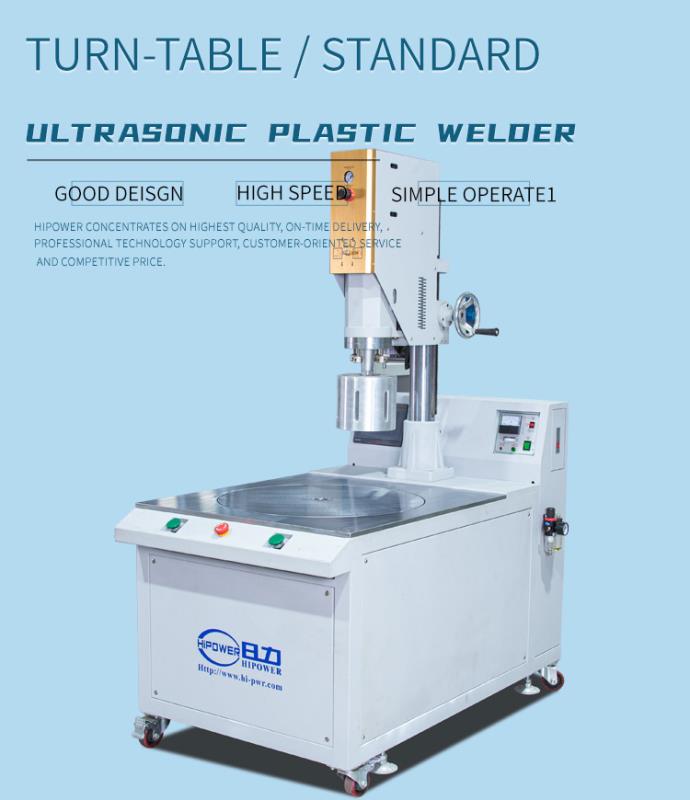

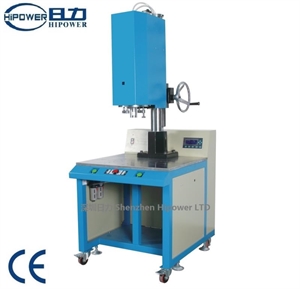

HC-4220 Auto Rotary Ultrasonic Plastic Welding Machine

Model：	HC-4220

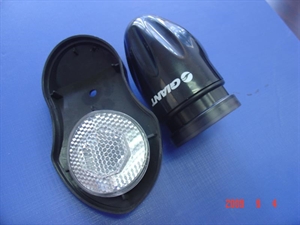

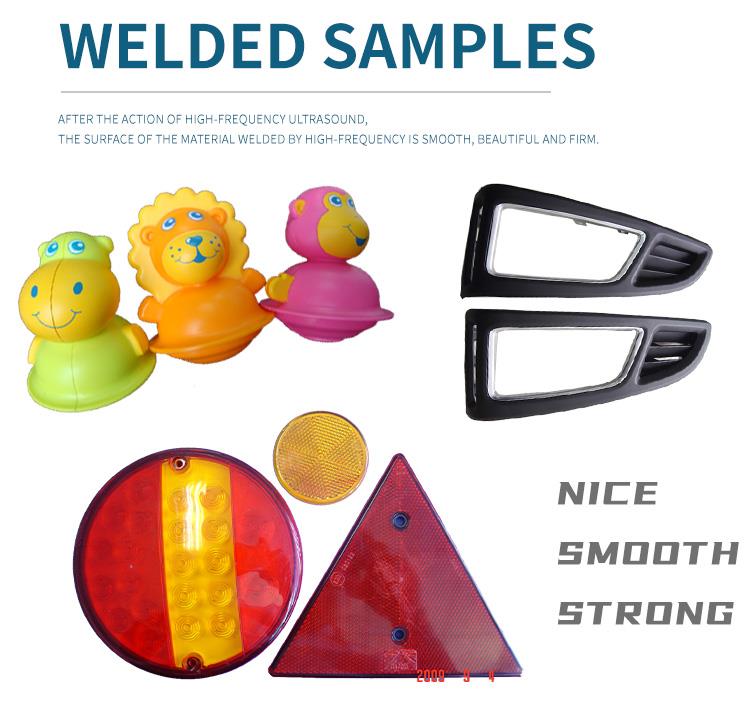

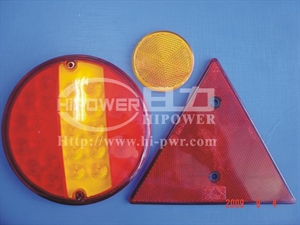

Scope Of Application：	Applied for ABS,PE,PC,PS,PVC,PP,ABS and PC complex, Acrylic and relatives, like toys, battery case, Stationery etc
Features：	The straight line guide bearing, the precise matching device The horizontal zoom type structures of four corners allocate that the board four corners at bottom can transfer the standard Japan Huang Paigang becomes a ware, and the horizontal zoom t

HC-4220 Auto rotary Ultrasonic Plastic Welding Machine

Feature of the machine

The straight line guide bearing, the precise matching device
The horizontal zoom type structures of four corners allocate that the board four corners at bottom can transfer the standard
Japan Huang Paigang becomes a ware, and the horizontal zoom type structure of lasting durable horn allocates that the board four corners at bottom can dive flatly
Frequency modulation and the frequency automatic equalization circuit
Debug the soft Boot circuit of equipment, and avoid damaging the mould
Squre column and column airframe structure is optional

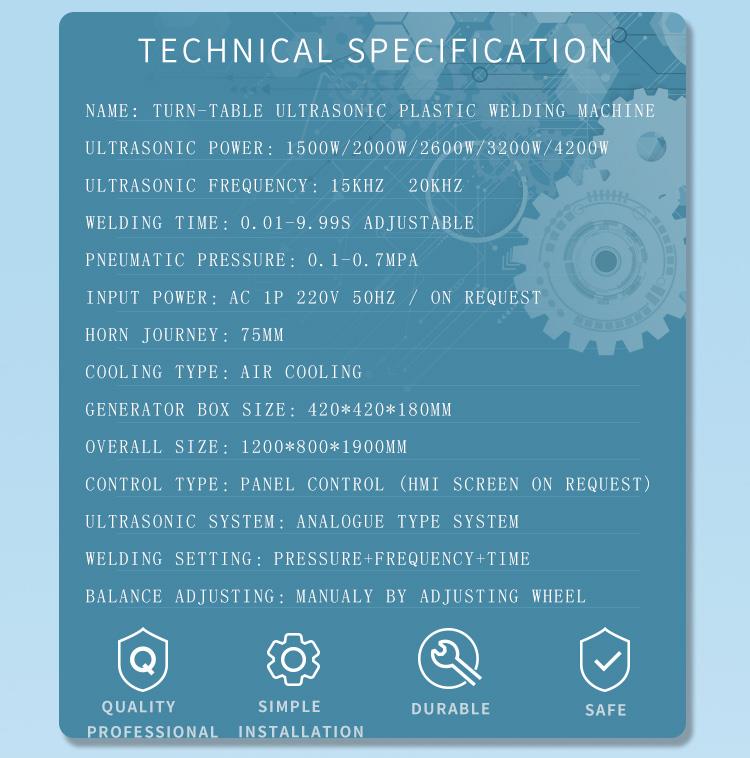

Technical parameter

Model	HC-1520 HC-3220 HC-4220
Input power	1500w 3200W 4200W
Frenquency	20KHZ
Input voltage	220V
Cooling system of welding horn	Wind cooling
The moving distance of active horn	70mm
Oscillation system	Auto-stimuilating
Output time	0.01-99S
Pressure	Pressure bound 1-7bar
Welding area	¡Ó100mm ¡Ó150mm ¡Ó180mm
Compressor	1HP
NET	100kg 100kg 100kg
