ShenZhen Hipower,.LTD
Product Display
Product Display > High Frequency Welding Machine > Customized Plastic Welding Machine

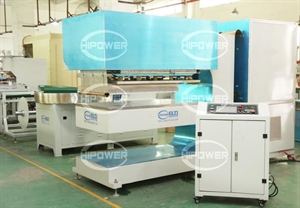

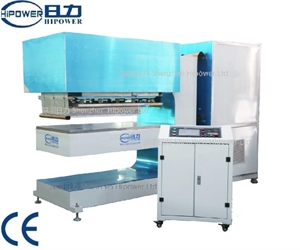

Treadmill Welding Machine

Model: HR-35KW-1C
Scope Of Application: 1.High frequency connection machine for treadmill belt,conveyor belt,sidewall,profile... 2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products 3.Applied to processing of the large products, such as PVC
Features: 1. specialize for connecting treadmill belt welding machine, conveyor belt ...2. Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products 3. Machine groove deep and wide,conveninent in continuous welding
HR-35KW-1C H.F treadmill welding machine



Application:

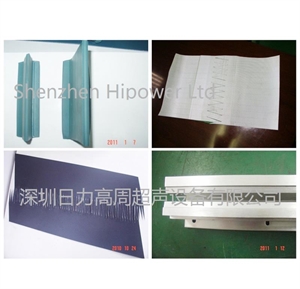

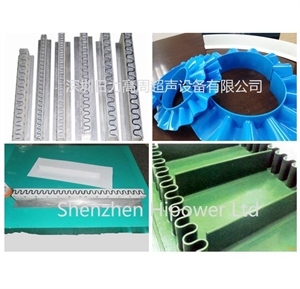

1.High frequency plastic welding machine specilize for sealing treadmill belt,conveyor belt,sidewall,profile...
2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3.Applied to processing of the large products, such as PVC water bed, drifting raft, children swimming pool, etc.

Characters:
1. specialize for connecting treadmill belt welding machine, conveyor belt ...
2. Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3. Machine groove deep and wide,conveninent in continuous welding with large area.
4. Adopting high sensitive anti sparkle device,avoid damaging the mould
5. High quality imported apparatus,the longest welding extended to 800mm~1000mm one time
6. European model square high frequency vibration box,more realible and stable in output.

service:
1. Recommend equipment of top choice based on your requirements for product;
2. test for client freely, and send the sample back for checking
3. Providing assistance in manufacturing and modifying tools;
4. OEM/ODM accepted.
5. Warranty for one year



Technical parameter of machine:

Model HR-15KW-C HR-25KW-C HR-35KW-C
Power  15000W 25000W   35000W
Voltage 3phase 380v 50Hz or customize
Frequency 13.56MHz
Input power  25KVA          35KVA    50KVA
Rectifier silicon diode
space behind electrode 1150mm
Oscillation tube    8T85RB     8T25RA      8T87RB
Max pressure 1000kg 1200kg 1500kg
Operation mode pneumatic
Max distance of electrodes 100mm
The moving distance of active horn 100mm
The size of upper electrode 500cm2 600cm2 400cm2
The lowwer of lowwer electrode 400*1050mm  400*1500mm 400*850mm
Welding time 0.01~9.99s
Net weight 1500kg 1800kg 2000kg
Overall dimension 1700*1480*1740 1980*1480*2350 2050*1480*2500
