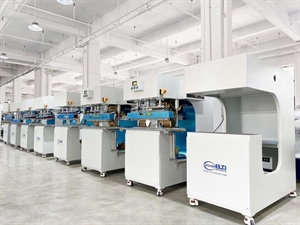

15KW High Frequency Tents Welder for PVC Covers, Fair
| Model： | HR-15KW-F1 |
| Scope Of Application： | Welders which is powered by high frequency are quit suitable for tarpaulins, truck curtains, marquees, tents and large covers.canvas tarp, tent cloth , movie screen and so on. |
| Features： | 1 Free space behind: 750mm2 G shape HF welder3 5557 arc-suppressor4 customized machine is also acceptable |

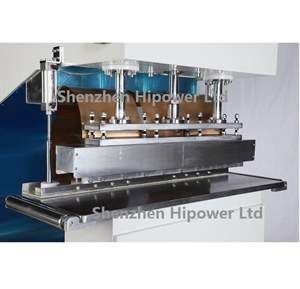

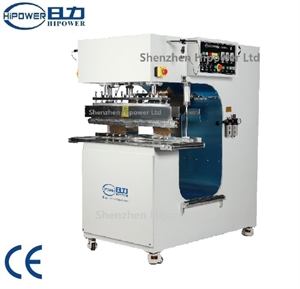

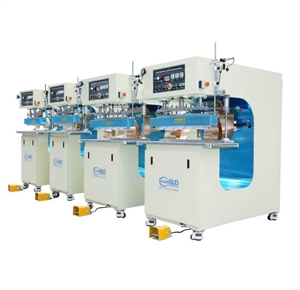

HR-15KW-F1 High Frequency Tents Welder
for PVC Covers, Fair Covers Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
Products:
1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality. Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide. All machines are completely safe for the operator and fully comply with CE regulations.
Machine specification:
| Model | HR-5KW-F1 | HR-8KW-F1 | HR-12KW-F1 | HR-15KW-F1 | HR-25KW-F1 | |
| Output Power of Generator | 5000W | 8000W | 12000W | 15000W | 25000W | |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||||
| Voltage | 3P AC 380V 50Hz-60HZ or customize |
|
||||
| Frequency | 27.12MHz +/- 0,6 % |
|
||||
| Input power | 8KVA | 15KVA | 20KVA | 25KVA | 35KVA | |
| Rectifier | SILICON DIODE |
|
||||
| Oscillation tube | 7T85RB | 7T69RB | E3130 | 8T85RB | 8T25RA | |
| Max pressure | 500KGS | 500kg | 800kg | 1000kg | 1500kg | |
| Operation mode | Pneumatic Operated |
|
||||
| Max gap of electrodes | 150mm |
|
||||
| Size of active horn | 150mm |
|
||||
| Upper Electrode (W*H*L) | 50*50*600mm | 50*50*800mm | 50**50*900mm | 50*50*900mm | 50*50*1000mm | |
| Size of Work Table (L*W) | 350*700mm | 450*1050mm | 450*1050mm | 450*1150mm | 450*1250mm | |
| Welding time | 0.01~9.99s adjustable |
|
||||
| Net weight | 400KGS | 800kgs | 900kgs | 1200kgs | 1400kgs | |
| Space behind electrode | 400mm | 750mm | ||||
| Foreseen productivity: | According to welding times and operator skills | |||||
Machine General Features:
1. Length, width and radian of welding area can be adjusted by change welding die.2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material
positioning during welding of complex shapes of fabric
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup
and repairs through the use of face-to-face online video.
9. Customized work table dimensions, electrode holder dimensions, tooling
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material
guidance on the work table
11. High frequency welding press pneumatically operated
12. C-Frame / G frame welded steel structure with integrated HF generator
Optional Features on Request:
1.Servo-motor; Touch screen programmable HMI / PLC2. HF Filter unit available
3. Auto-high frequency tuning technology
4. High frequency generator on separate cabinet
5. Large space behind the welding tool - up to1500mm
6. 12. Precision straight bar welding up to 1500x50mm
