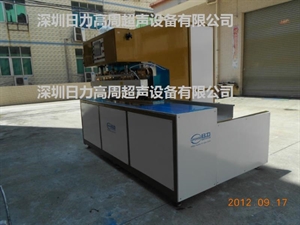

HR-15KWA Auto Steps HF Welding Machine for PVC Tarpaulin/Tent

Model：	HR-15KWA
Scope Of Application：	powered by high-frequency, can welding products like PVC digesters, PVC tanks, PVC childrens pool. can also be used to jiont car canvas tarp, tent cloth , movie screen and so on.
Features：	Using the smart man-machine interface PLC operating system, step or servo motor drived.Automatic walking, precise location, without moving the material and machine.a seam is done by one time with good looking , no wrinkles, no tool marks and smooth and be

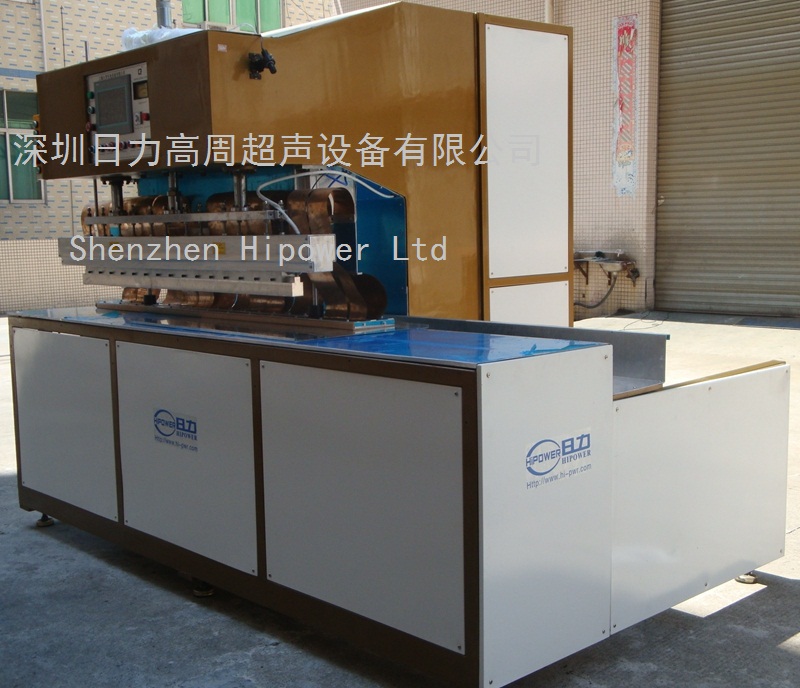

HR-15KWA Auto Steps HF Welding Machine for PVC Tarpaulin/Tents/Large Covers
High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil- booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
Products:
1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters

Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide.All machines are completely safe for the operator and fully comply with CE regulations.

Machine Specification:

Model	HR-8KWA	HR-12KWA	HR-15KWA	HR-25KWA
Output Power of Generator	8KW	12KW	15KW	25KW
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V 50Hz-60HZ or customize
Frequency	27.12MHz
Input power	15KVA	20KVA	25KVA	35KVA
Rectifier	SILICON DIODE
Oscillation tube	7T69RB	E3130	8T85RB	8T25RA
Max pressure	500kg	800kg	1000kg	1500kg
Max gap of electrodes	150mm
Size of active horn	150mm

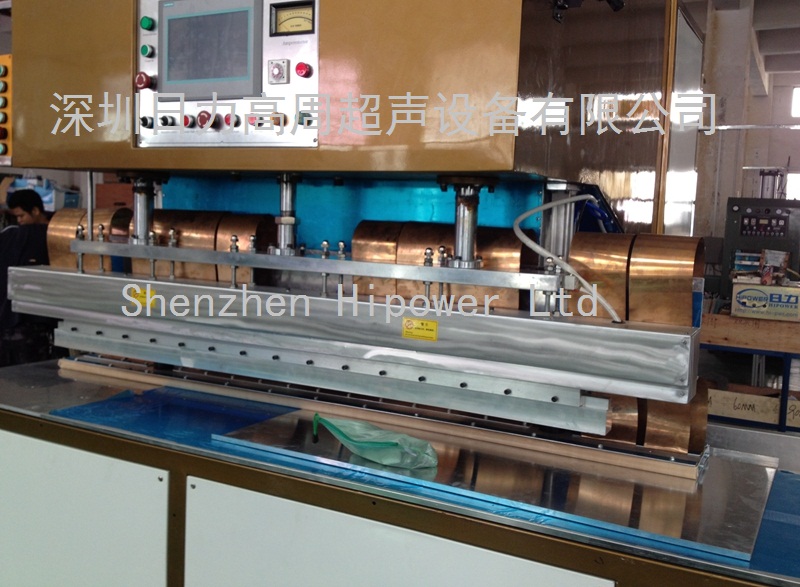

Upper Electrode (WHL)	5050800mm	50*50900mm	5050900mm	50501000mm
Welding time	0.01~9.99s adjustable
Foreseen productivity:	According to welding times and operator skills

Machine General Features:

1. Servo-motor; Touch screen programmable HMI / PLC

2. European-model square high frequency vibration box, more reliable and stable in output

3. Single line or two lines continue welding, welding length can be ordered as special need.

4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

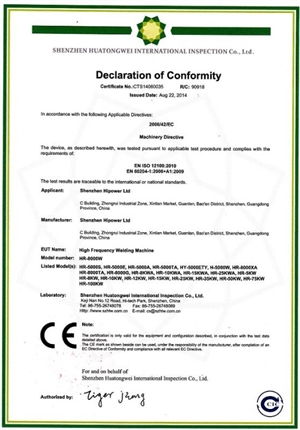

5. CE rated machine; factory verified by SGS and BV;

6. Customer's site installation, training & maintenance available

7.Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric

8.Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

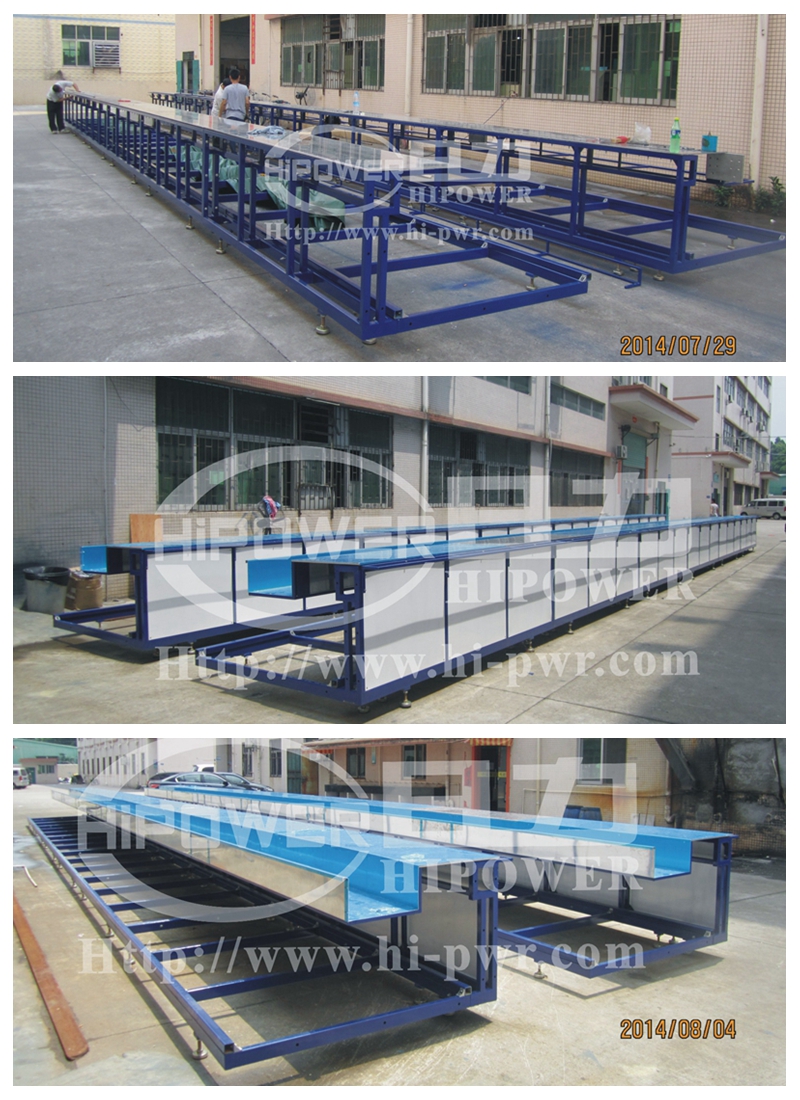

9.Customized work table dimensions, electrode holder dimensions, tooling

10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table

11. High frequency welding press pneumatically operated

12. C-Frame / G frame welded steel structure with integrated HF generator

Optional Features on Request:

1. HF Filter unit available

2. Auto-high frequency tuning technology

3. Precision straight bar welding up to 1500x50mm

4. Vacuum table available

5. Welding electrode temperature thermostat
