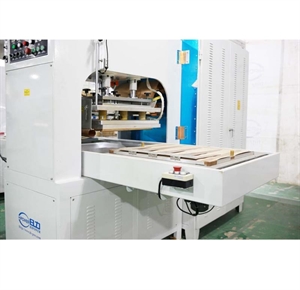

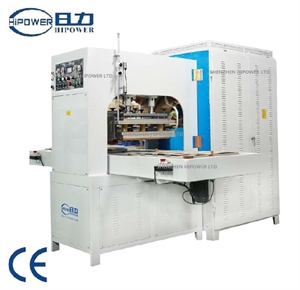

HR-25KWAT High Frequency Welding Machine for Air Filter Bags

Model：	HR-25KWAT
Scope Of Application：	Specially Designed for making air filter bags, non-woven filter bags,car mattres, heel pad, car mats, car carpets.
Features：	Automatic sliding table machine, for big size welding

HR-25KWAT High Frequency Welding Machine for Air Filter Bags:

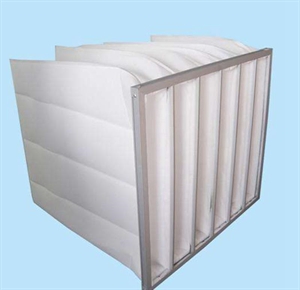

It is Specially Designed for making air filter bags, non-woven filter bags

Specification

Model	HR-8000ET	HR-10KWET	HR-15KWET	HR-25KWET
Output Power	8000W	10000W	15000W	25000W
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency	27.12MHz +/- 0,6 %
Input power	15KVA	18KVA	25KVA	35KVA
Rectifier	SILICON DIODE
Oscillation tube	7T69RB	E3069	8T85RB	8T25RA
Max pressure	500kg	500kg	800kg	800kg
Operation mode	Pneumatic Operated (Hydraulic pressure upon request)
Max gap of electrodes	200mm
Size of active horn	150mm
Working Stations:	Standard 3 ,4 , 6 , 8 Rotary work stations
Upper Electrode (WHL)	300*400mm	400*500mm	600*700mm	700*800mm
Size of Work Table (L*W)	350*450mm	400*500mm	700*800mm	700*800mm
Welding time	0.01~9.99s adjustable
Net weight	1500kgs	1500kgs	1500kgs	1500kgs
Foreseen productivity:	5/7 cycles/min depending on welding and rotating times, and operator skills

Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated
