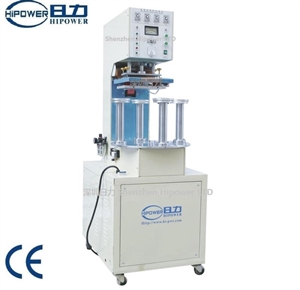

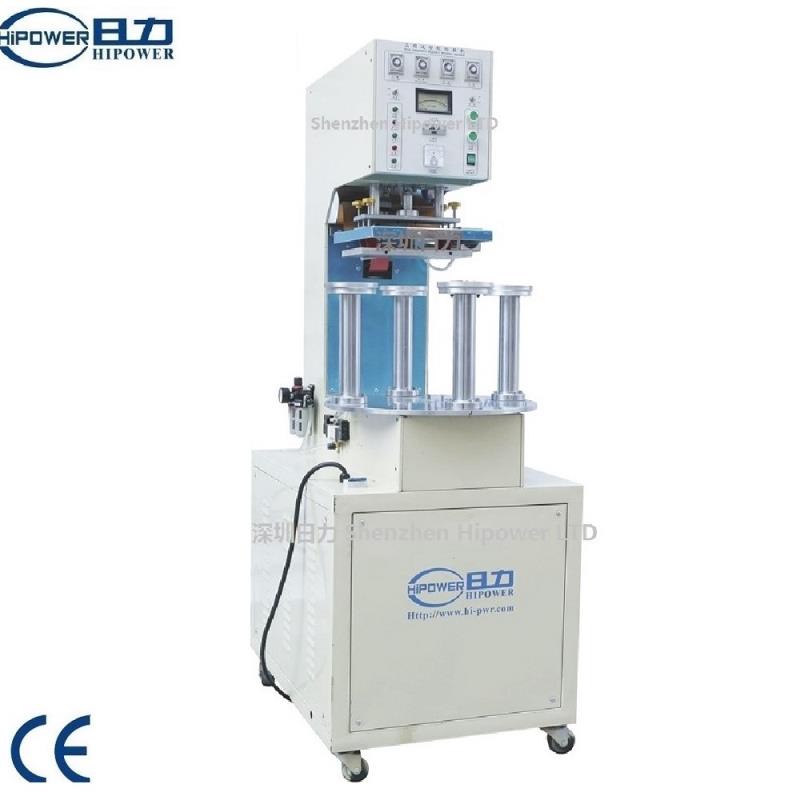

HY-5000ETY High Frequency Cylinder Lid Welding machine

Model：	HY-5000ETY
Scope Of Application：	Mainly used for PVC, APET, PETG and other plastic cylinder bottom welding; Hipower is the company specialized in producing and designing cylinder machines.
Features：	high frequency welding machineAuto turntable

HY-5000ETY High Frequency Cylinder Lid Welding machine
Application

PVC cylinder bottom welding, PP cylinder bottom welding, APET cylinder bottom welding, PETG cylinder bottom welding, plastic cylinder bottom welding,

paper cylinder bottom welding, paper material cylinder bottom welding, paper tube cylinder bottom welding, transparent plastic cylinder bottom welding;

Also known as cylinder bottom sealing machines, high frequency cylinder sealing machine, cylinder lid welding machine;

Product Features

Four working postion auto turnplate design; precision positioning segmentation; using the principle of high frequency bonding, the effect is strong and

beautiful and no scratches.To meet welding cylinders of different diameter, height, material thickness; machine operation simple and efficient;

cooperate HY-2030 fully automatic crimping machine to achieve the purpose production lines.

Professional high frequency bonding machine not only used for PVC, APET, PETG material cylinder bottom welding, but also applied for welding application;

can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm);

wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: 0.05mm.

machine operation simple and efficient (production speed: 2 to 5 second per piece adjustable);

cooperate HY-2030 fully automatic crimping machine to achieve the purpose production lines.

Industrial Fields Applied

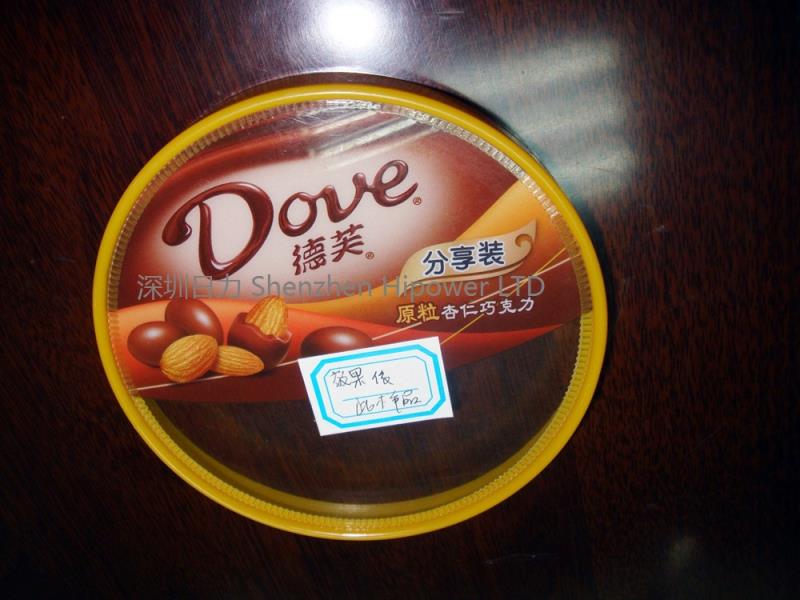

Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

Model	HY-5000ETY
Voltage	220V
Pneumatic range	2-7bar
Frequency	20KHz
Output POWER	5kw
Max Input power	1.2KW to 2.3KW
Vibrational System	Auto-stimulating
Prodcution speed	2-5sec/pc
Cylinder Diameter	20-200mm
Air Compressor	1HP to 2HP
Cylinder Height	15-420mm
