15KW Widened Type PVC Tarpaulin Welder

Model：	HR-15KW-FL
Scope Of Application：	Applied for painting canvas, tarpaulin, sunshading canvas, film curtain and relatives for automatic stepping welding and connecting.
Features：	1 The size of plateform is widened to match some lager products2 Free Space Behind: 750mm 10KW machine, G shape welder and 5557 arc-suppressor

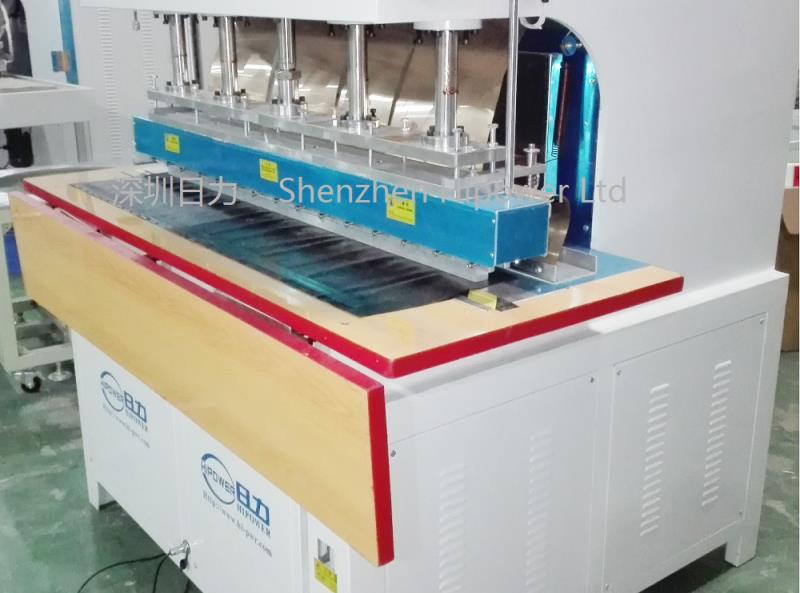

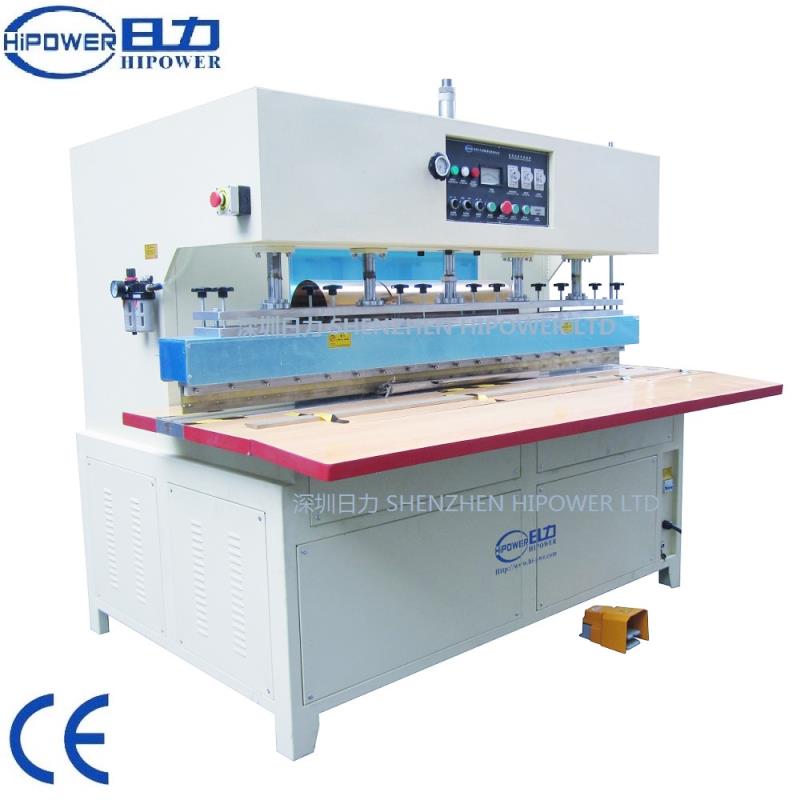

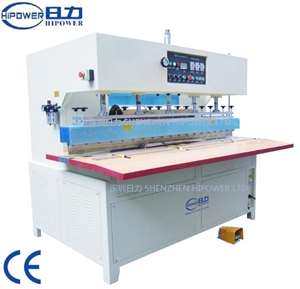

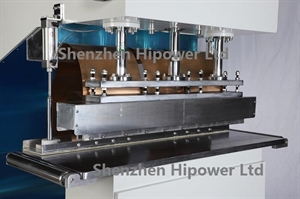

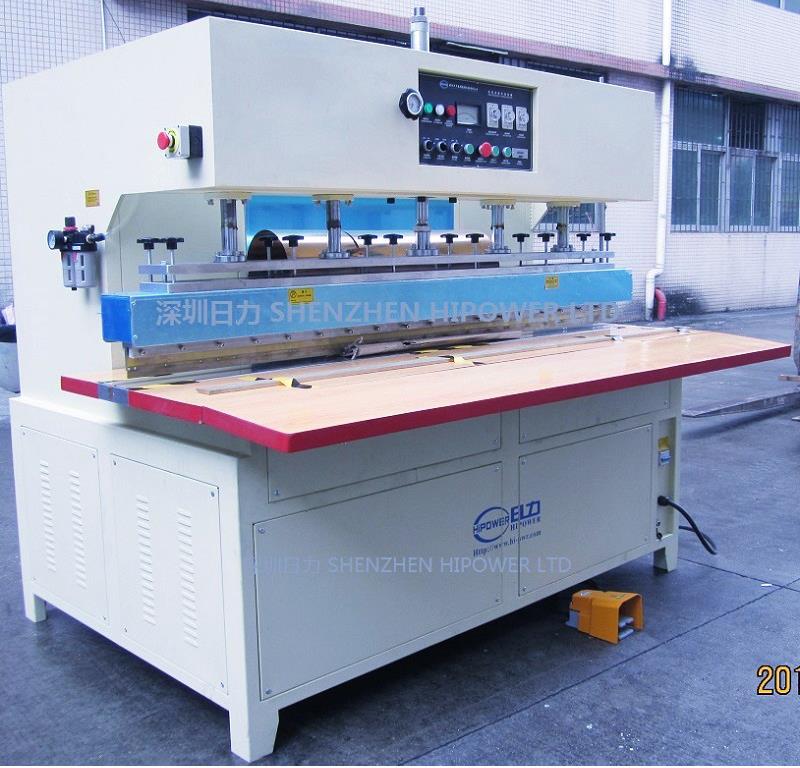

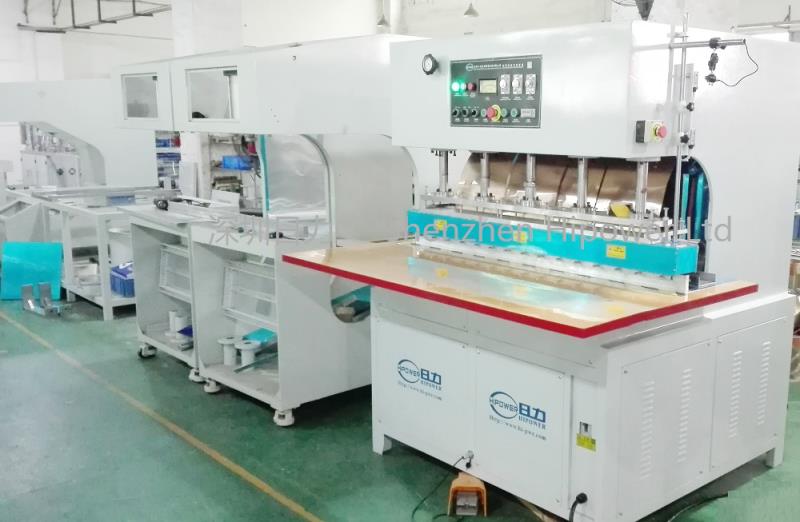

HR-15KW-FL PVC Widened Type Tarpaulin Welder

Application:

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

Products:
1. Large format technical textiles.
2. Large Covers for trucks and boats .
3. Membrane Curtains for trucks.
4. Large Swimming pool covers.
5. Temporary shelters.
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality. Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide. All machines are completely safe for the operator and fully comply with CE regulations.

Machine Specification:

Model	HR-5KW-F1	HR-8KW-F1	HR-12KW-F1		HR-15KW-F1	HR-25KW-F1
Output Power of Generator	5000W	8000W	12000W		15000W	25000W
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V 50Hz-60HZ or customize
Frequency	27.12MHz +/- 0,6 %
Input power	8KVA	15KVA	20KVA		25KVA	35KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB	E3130		8T85RB	8T25RA
Max pressure	500KGS	500kg	800kg		1000kg	1500kg
Operation mode	Pneumatic Operated
Max gap of electrodes	150mm
Size of active horn	150mm
Upper Electrode (WHL)	5050600mm	5050800mm		5050900mm	5050900mm	50501000mm
Size of Work Table (L*W)	350*700mm	450*1050mm		450*1150mm	450*1150mm	450*1250mm
Welding time	0.01~9.99s adjustable
Net weight	400KGS	800kgs	900kgs		1200kgs	1400kgs
Space behind electrode	400mm	750mm
Foreseen productivity:	According to welding times and operator skills

Machine General Features:

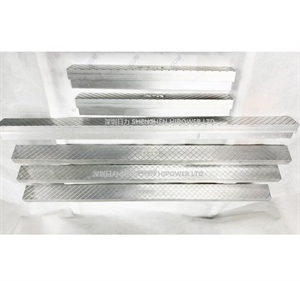

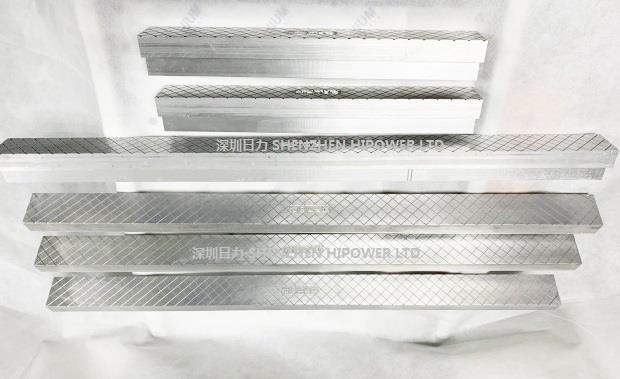

1. Length, width and radian of welding area can be adjusted by change welding die.

2. European-model square high frequency vibration box, more reliable and stable in output

3. Single line or two lines continue welding, welding length can be ordered as special need.

4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

5. CE rated machine; factory verified by SGS and BV;

6. Customer's site installation, training & maintenance available

7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric

8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

9.Customized work table dimensions, electrode holder dimensions, tooling

10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table

11. High frequency welding press pneumatically operated

12. C-Frame / G frame welded steel structure with integrated HF generator

Optional Features on Request:

1.Servo-motor; Touch screen programmable HMI / PLC

2. HF Filter unit available

3. Auto-high frequency tuning technology

4. High frequency generator on separate cabinet

5. Large space behind the welding tool - up to1500mm

6. 12. Precision straight bar welding up to 1500x50mm
