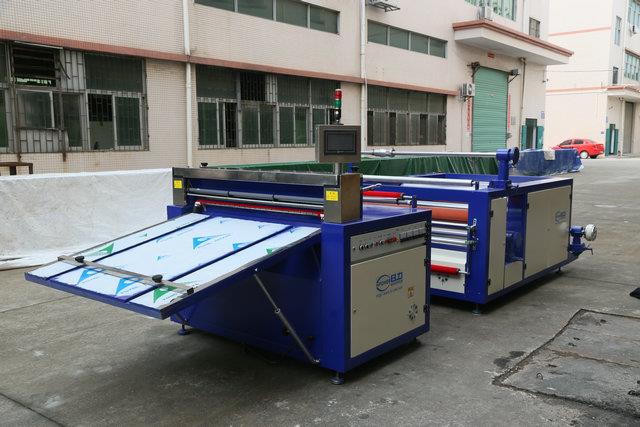

HR-1250 automatic plastic film rolling and cutting machine
| Model： | HR-1250 |
| Scope Of Application： | Applicable to rolling,splitting and cutting of integrated films of PVC,PET,PP,CPP,OPP plastic films(slices),screen sheets,rubber magnetic slices, paper magnetic slices,paper,leather,filled cloth,self adhesive tapes,trademark tapes,copper foils and thin ma |
| Features： | PLC microcomputer control system is employed to automatically display and adjust the running data and operating procedures for the whole system,with simple and convenient operation,high efficiency,and the error of the length for cutting pieces is less tha |
Purpose:
Applicable to rolling,splitting and cutting of integrated films of PVC,PET,PP,CPP,OPP plastic films(slices),screen sheets,rubber magnetic slices, paper magnetic slices,paper,leather,filled cloth,self adhesive tapes,trademark tapes,copper foils and thin matal sheets.
Feature:
PLC microcomputer control system is employed to automatically display and adjust the running data and operating procedures for the whole system,with simple and convenient operation,high efficiency,and the error of the length for cutting pieces is less than 0.1mm.
Parameter description:
|
Model |
HR-1250 |
|
Width |
1100-1300mm |
|
Unwind Diameter |
Φ1300mm |
|
Machine Speed |
10-100times/min |
|
Cutting length |
200-500mm |
|
Cutting precision |
±0.5mm |
|
Cutting mode |
Under the knife to cut |
|
Tension Control |
magnetic particle |
|
Control Type |
PLC |
