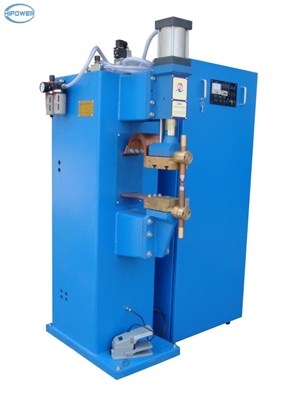

HA-C2K Capacitance Energy-Storing Type Spot Welder

Model：	HA-C2K
Scope Of Application：	It is used to high quality weld wide range of the , electric appliance , the copperstainless steel of the car ,battery welding
Features：	1、Full numerical IC control, precise locking voltage（0.9v）2、Japan“HITACHI”，“NCC”，America“CDE”capacitor3、German“SEMIKRON"silicon controlled rectifier4、1/1000s instantaneous discharging，0.8s quick charging

Scope：

It is used to high quality weld wide range of the , electric appliance ,the copperstainless steel of the car ,battery welding

Product Features:

1、Full numerical IC control, precise locking voltage（±0.9v）

2、Japan“HITACHI”，“NCC”，America“CDE”capacitor
3、German“SEMIKRON"silicon controlled rectifier
4、1/1000s instantaneous discharging，0.8s quick charging

Specification:

Model	Input volt	Power	output	Capacitance	Stroke	Max pressure	Thtoat Dimension	Mild Steel and stainlesss teel	Aluminium	Brass
	V	KVA	WS	UF	mm	KG	mm	mm	mm	mm
HA-C2K	220	2	500	4500	50	100	65*125	1.0*2	0.8*2	0.8*2
