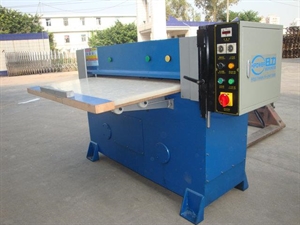

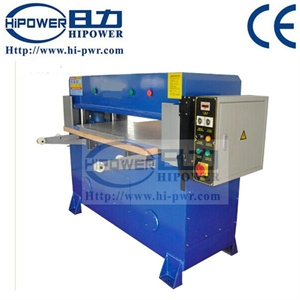

HY-910 Hydraulic Cutting Machine
| Model： | HY-910 |
| Scope Of Application： | Leather and footwear, bags and handbags, gloves and hat, silk flowers, embroidery, puzzles and business card, printing and packaging, plastic, printing and paper products, stationery, plastic chemical, auto and electronics and other light industry. |
| Features： | Heavy pressure cutting machine, easy operation, rapid,improvement design for the traditional mechanical cutting machine to improve production efficiency. Stale Punching, High speed cutting, No shock |
The characteristics:
when punching head through a die cutter effect on instantaneous of machined workpiece, the fuel tank pressure did not reach the rated pressure, the pressure will be with the contact (into the working substance) time increased,until an electromagnetic reversing valve receives a signal, reversing valve, the punching head start reset; when the cylinder pressure by the pressure oil into the cylinder of the time limit,may not reach the rated pressure set value; that is to say, the system pressure does not reach the design value, punching has been completed.
specification:
cutting force
30tons
motor(KW)
2.2KW
punch(mm)
55-245mm
cutting area(mm)
610*1600mm
Voltage
AV380V50Hz
weight
1900Kg
