HR-8000W-4ACY Auto rotary HF medical bags welding machine
| Model： | HR-8000W-4ACY |
| Scope Of Application： | Applied for medical industrial, like , medical transfusion bag, medical blood bag, medical urine bag, and relative one-off medical bag |
| Features： | HF medical bags welding machine with 4 station,suitable for barrel material, medical bags and catheter forming and welding |
HR-8000W-4ACY Auto rotary HF medical bags welding machine
Mainly application

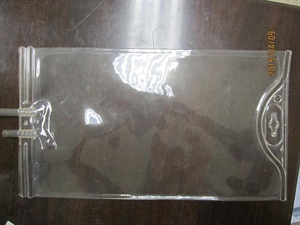

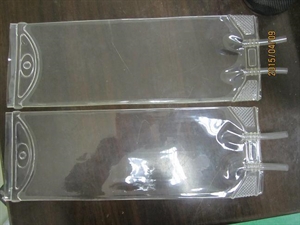

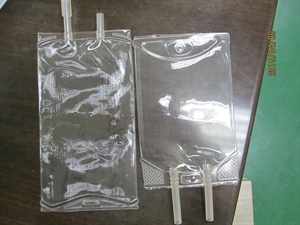

This high frequency welding machine is widely applied for medical industrial, like , medical transfusion bag, medical blood bag, medical urine bag, and relative one-off medical bag
Character:
Adopting PLC programme, micro computer trouch screen control, easy and clear to reach precision
NL-5557 high frequency anit-sparckle protection system, high sensitive
Photo electric induction, no any defects
Automatic feeding, receiving, cutting material to improve working efficiency
Mahine General Features:
1. Anti-flash system, to protect the tooling / mould;
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated
Optional Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure
Specification:
MODEL： HR-8KW-4ACY HR-10KW-4ACY HR-12KW -4ACY
H.F POWER： 8000W 10000W 12000W
POWER SUPPLY： 380V 50/60HZ
FREQUENCY： 27.12MHZ 13.56MHZ
INPUT POWER： 15KVA 18KVA 20KVA
RECTIFIER： SILICON DIODE
OSCILLATION TUBE： 7T69RB E3069 E3130
MAX PRESSURE： 500kg 500kg 800kg
GAP OF THE ELECTRODE： 200mm
THE SIZE OF THE HORN ACTIVE： 150mm
SIZE OF UP MOLD： 300*400mm 350*450mm 400*500mm
SIZE OF DOWN MOLD： 350*450mm 400*500mm 450*550mm
WELDING TIME： 0---10 S
