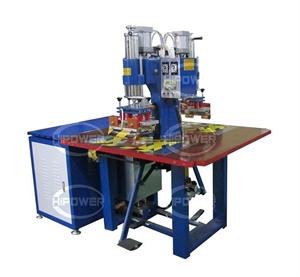

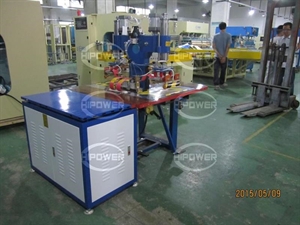

HR-5000TAX High Frequency Catheter Welding Machine

Model：	HR-5000TAX

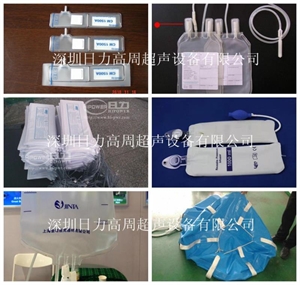

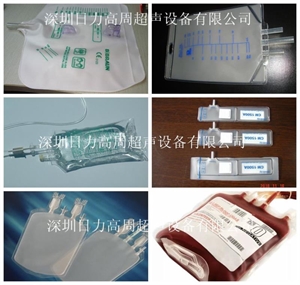

Scope Of Application：	medical infusion bag, blood transfusion bags, wash bags, catheter bags, drainage bags,disposable medical supplies catheter welding
Features：	Double heads welding, up and low High Frequency

HR-5000TAX High Frequency Catheter Welding Machine

High frequency tube welding machine for medical bags scope:

High frequency catheter for medical bags medical bags are widely used in welding machine welding catheter, such as: medical infusion bags, medical blood bags, medical catheter bags, wash bags, drainage bags, catheter bags, disposable medical supplies welding.
Main features:

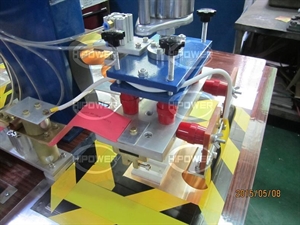

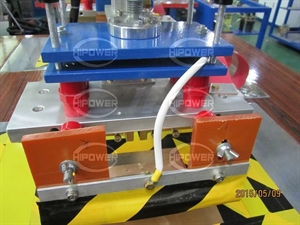

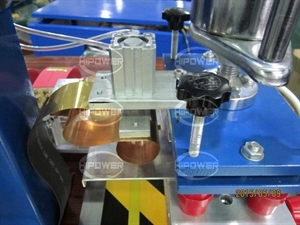

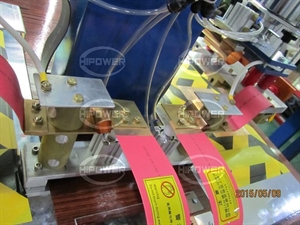

The machine adopts the high Q value of the vacuum tube, the output power stability, the adoption of international industrial band Oscillation Frequency 27.12MHz, the output frequency in line with international standards. About two-way automatic slider machine, and from the continuous push mold, precise positioning.
NL-5557 high-frequency spark protection system, high sensitivity, high frequency mold to prevent burning. And with high frequency and high frequency shielding frequency stabilizer device, the high-frequency interference to a minimum, to avoid radio interference. At the same time to avoid improper operation caused by the frequency drift, so to minimize damage to electrodes and materials, while warning lights are illuminated warning.

This machine adopts the European standard coaxial high-frequency low-loss resonator, high-frequency output power strong, able to weld the most rapid time to make products, greatly improving production

Machine Specification:

Model   HR-5000TAX HR-8000TAX
Power 5KW                              8KW
Voltage                                380V 50/60Hz
Frequency 27.12MHz
Input Power 8KVA                             15KVA
Rectofier   SILICON DIODE
Oscillation tube 7T85RB                           7T69RB
Max pressure 350kg                            500kg
Max gap of electrode 160MM
The distance of active horn 60MM
The size of upper electrode 120*290mm
The size of lowwer electrode 350*700mm
Welding time 0-10S Adjustable
Capacity                                ㄑ3500/8H
