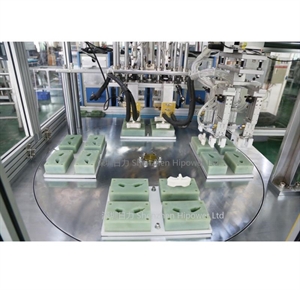

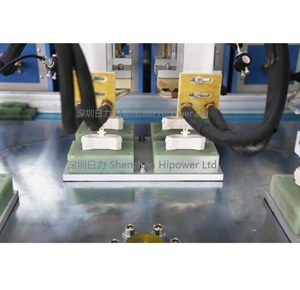

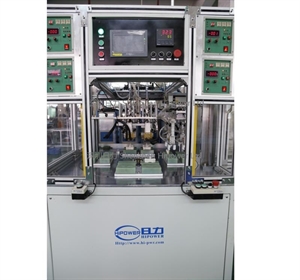

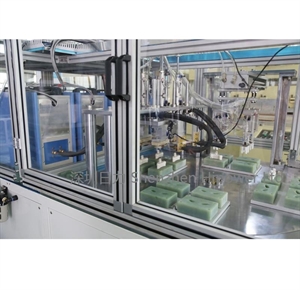

Multi-station High Frequency Induction Heating Welding Machine

Model：	HR-15K-4AC
Scope Of Application：	HF speaker grill implant machine, also known as HF induction heating machine, Metal speaker grill machine,implanting machine,Metal speaker grill implantimg machine.
Features：	Multi-station High Frequency Induction Heating Welding Machine

Multi-station High Frequency Induction Heating Welding Machine
High frequency induction heating does not produce the stink smell or noise like the ultrasonic welding.High frequecny induction heating is suit for plastic with phase solubility such as PP bonding or welding with special shape. High frequency vibration tube also performs stable,easy to operate.
HF speaker grill implant machine, also known as HF induction heating machine, Metal speaker grill machine,implanting machine,Metal speaker grill implantimg machine.
Main range are:
high frequency inductive welding, high-frequency induction heat processing, high-frequency induction metal melting, etc. Such as:
1.For welding : Hard alloy saw blades, Diamond tools and drilling tools, turning tool, planer knives, mills cutter,
2.Heat treatment :bolts, power tools, hardware tools, hand tools of heat treatment,
3.Pliers, wrench, whorls, hammer, axes, auto parts, crankshaft, connecting rod, the piston pin and crank pin, wheel, camshaft, valve, various rocker, lock shaft,
4.Gears in speed changing box, spline shaft, all sorts of small axle, various dial high-frequency quenching treatment.
Features:
1.The biggest power was moved 100% load the going on rate design in next 24 hours
2.Using IGBT merit to lead parts and the unique flow control becoming technology, the high reliability
guranteed.
3.Special safety ,It need not to approach ten thousand volts of the equipment high power to avoid the dangerous.
4.Install simply ,and only needs power hook-up to use , a few minutes can accomplish
5.Automatic controlled device which can adjust the heating , the power and the time of the rvation which are favour of raising the heating quality and the repeatability of heating , and are simplified worker operating.
Techinical sheeet:
Model    HR-15K
Power 15K
Voltage 220V/50/60HZ
Input Power   25KVA
Max. Pressure   800kg by pneumatic
Electrodes Gap: 150mm

Horn Moving distance: 150mm

Oscillating tube : 8T25RA

Time: 0~10S adjustable

Welded Samples View:
