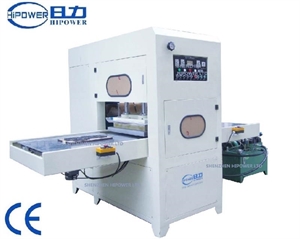

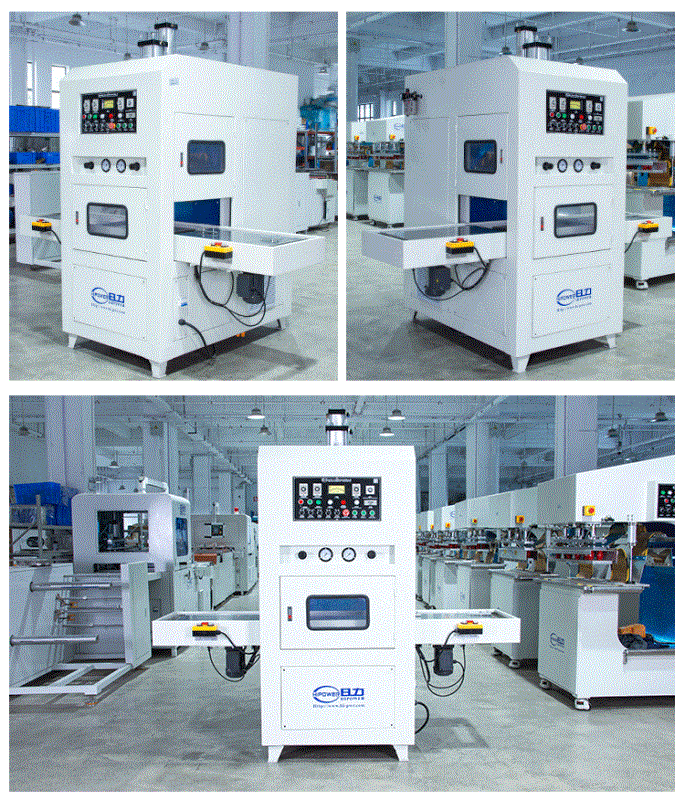

Radio Frequency Welding Machine for Car Acoustic cotton / Sound Isolation Fabric
| Model： | HR-15KW-30T |
| Scope Of Application： | Radio Frequency Welding Machine for Car Acoustic cotton / Sound Isolation Fabric |

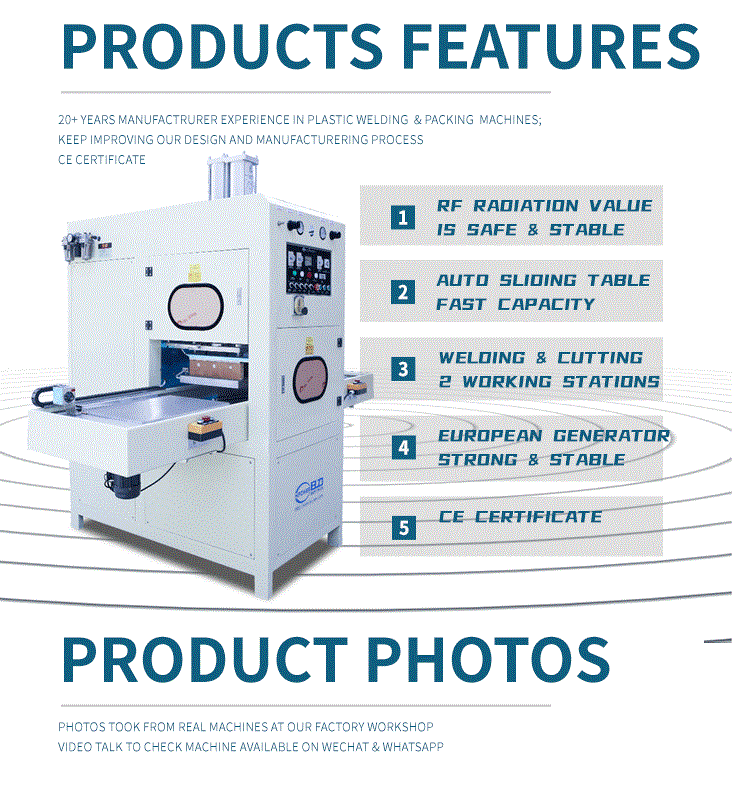

| Features： | Gantry Type design, big welding and cutting pressure.For large size welding and cutting. |
ency Welding Machine for Car Acoustic cotton / Sound Isolation Fabric

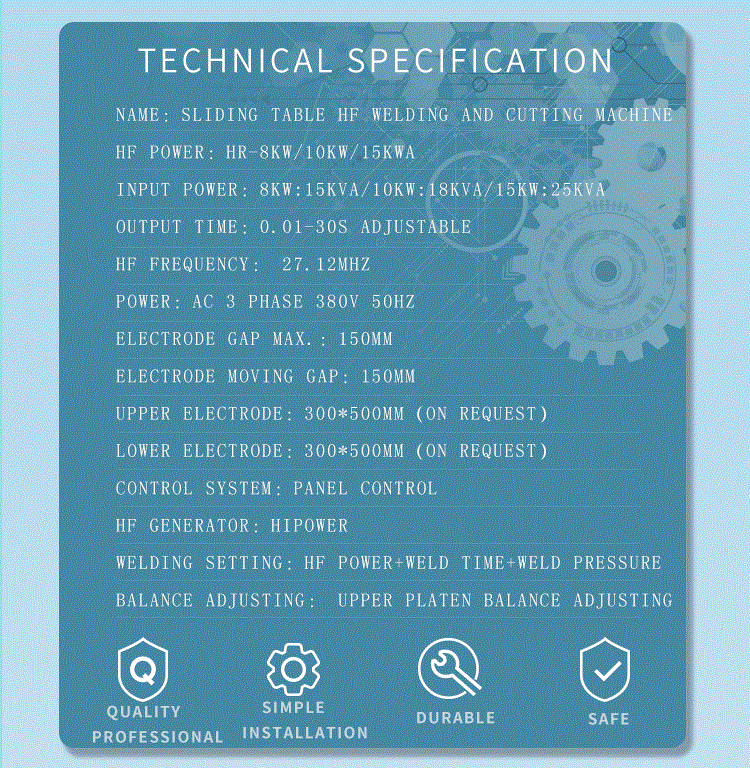

Technical parameter:
Model HR-15KW-30T
Power 15KW
Supply power3P 220V/380V 50Hz/60Hz & Customized
Frequency 27.12Mhz
Input supply 25KVA
Rectifier Silicon Diode

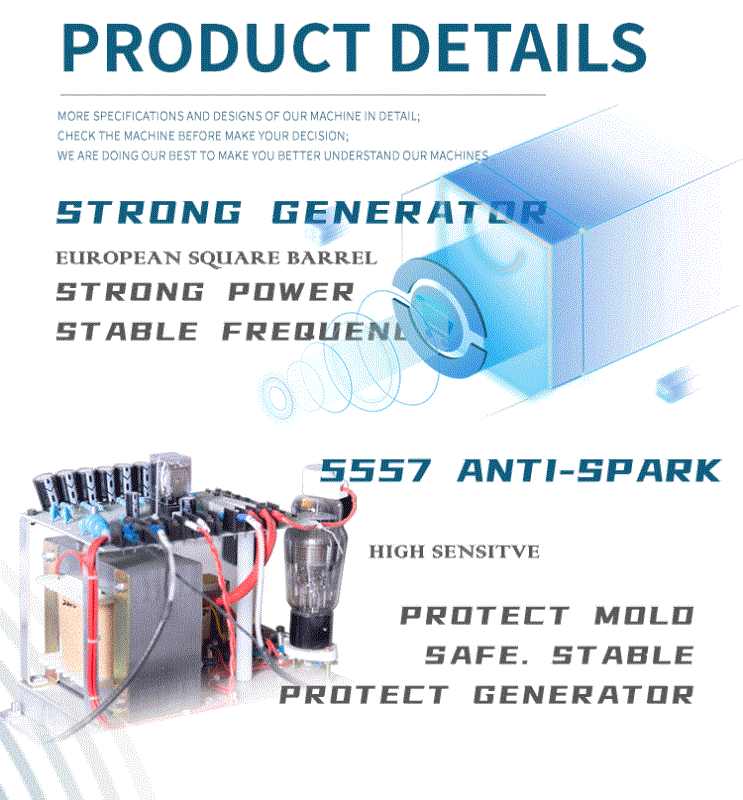

Oscillation tube 8T85RB
Max pressure 30T
Gap of electrodes 150MM
Distance of active horn 150MM

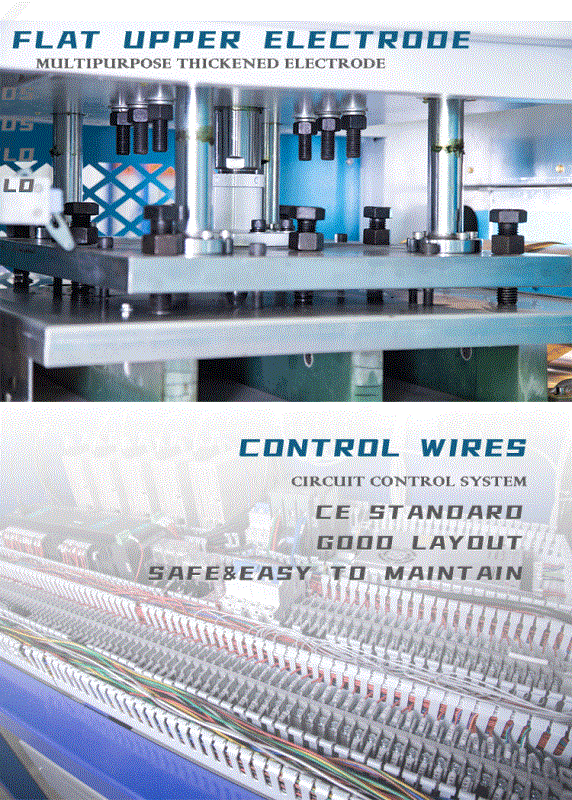

Size of upper electrode 400*600MM
Size of buttom electrode 400*600MM
Temperuture Scale0~200 Adjustable
Welding time 0~10s Adjustable
Productivity Equal or less 4000times / 8 hours
Net weight 2.5T
Technical parameter:
Model HR-15KW-30T
Power 15KW
Supply power3P 220V/380V 50Hz/60Hz & Customized
Frequency 27.12Mhz
Input supply 25KVA
Rectifier Silicon Diode
Oscillation tube 8T85RB
Max pressure 30T
Gap of electrodes 150MM
Distance of active horn 150MM
Size of upper electrode 400*600MM
Size of buttom electrode 400*600MM
Temperuture Scale0~200 Adjustable
Welding time 0~10s Adjustable
Productivity Equal or less 4000times / 8 hours
Net weight 2.5T
Packing Dimension2650*2550*2240MM

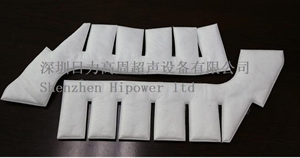

Welded Samples:

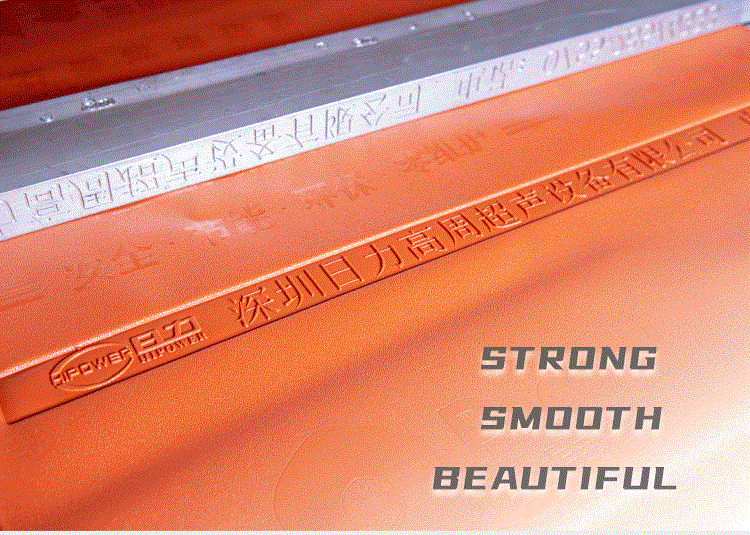

Mould View:
