Single heads High Frequency Welding Machine
| Model： | HR-12KW |
| Scope Of Application： | Applied for high frequency welding and cutting for PVC or PVC including 30% up, like blister packaging, inflatable toy, raincoat, or relatives |
| Features： | High frequency plastic welding machine is usually made with single-head style structure, also called single-style High frequency welding machine.High frequency plastic welding machine,Padal operated High frequency welding machine. single Padel operated Hi |
Features:
1. Single welding heads works alternately and easy to operate.
2. Install laser scanning system inside the machine to get precise welding position.
3. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
4. European-model, high frequency vibrational box, more reliable and stable in output
5. Welding time can be adjusted from 0.01~9.99s
6. The max welding area is 120*290(mm) for one welding time
7. High precision temperature controlling system, range of the temperature is 30~200ºC adjustable
8. Users can stop the welding mould position whenever they want
9. The gap between the upside of welding mould and the table is 100mm
10. Industrial wave bands 27.12MHz, which is in line with international standard
11. As the two circuit of Counter-action, both the program and time can be preset up
12. The pressed finished product line is smooth without bleaching
13. Max pressure can be up to 800kg
14. Good for Plastic embossing/welding, with trimming function.
Technical specification:Model： HR-5000A HR-8000A HR-10KW HR-12KW HR-15KW
H.F power： 5000W 8000W 10000W 12000W 15000W
Power supply： 380V/50/60HZ
Frequency ： 27.12MHZ 13.56MHZ
Input power： 8KVA 15KVA 18KVA 20KVA 25KVA
Rectifier： silicon diode
Vibrational tube： 7T85RB 7T69RB E3069 E3130 8T85RB
Max pressure： 350kg 500kg 500kg 800kg 1000kg
Gap of electrode： 200mm
Size of active horn： 175mm 175mm 150mm 150mm 150mm
Size of up electrode：200*350mm 400*600mm 500*700 600*800mm 600*900mm
Size of down electrode：400*600mm 500*700mm 600*800 600*800mm 600*900mm
Welding time： 0---10S
Productivity： ㄑ3500time/8H
Drive mode： Pneumatic

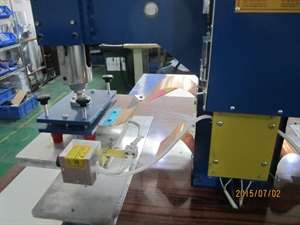

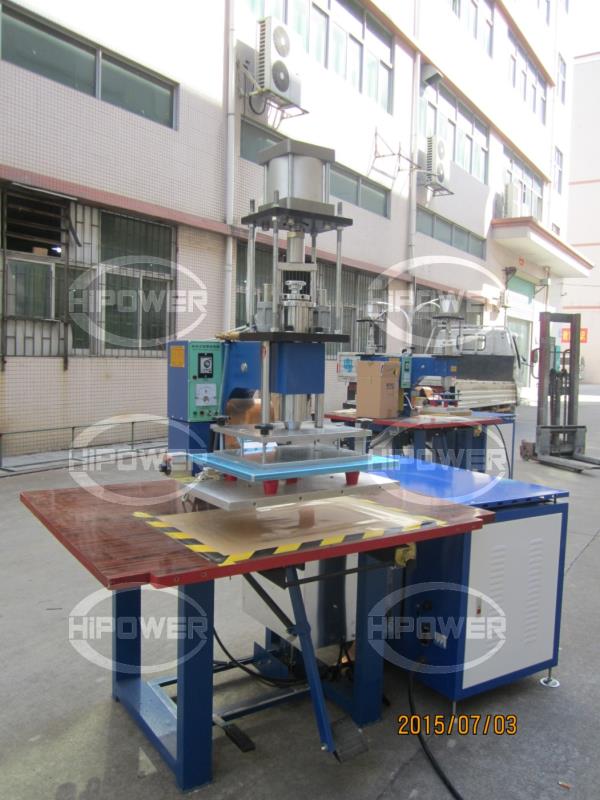

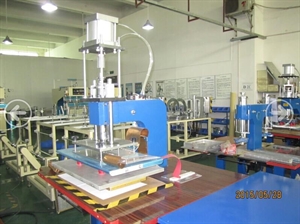

On the site:
