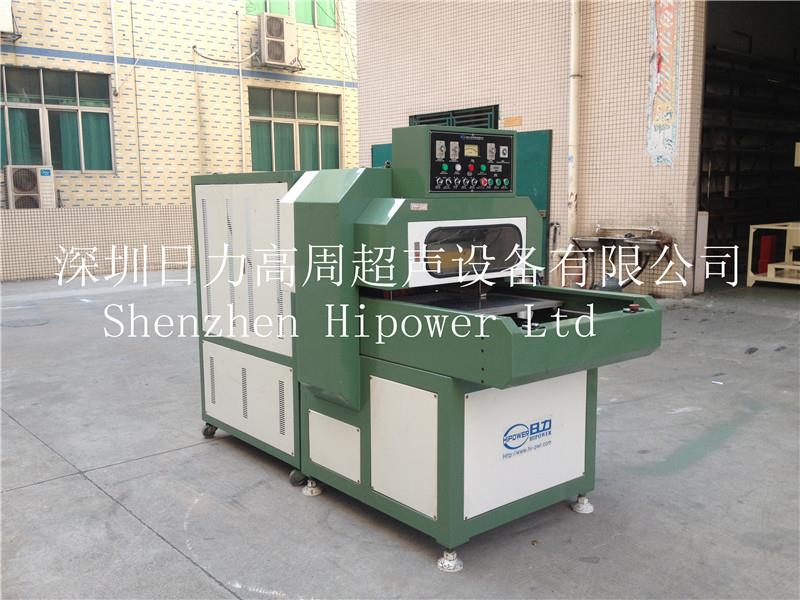

One side slide way high frequency welding and cuttting machine
| Model： | HR-8000WTS |

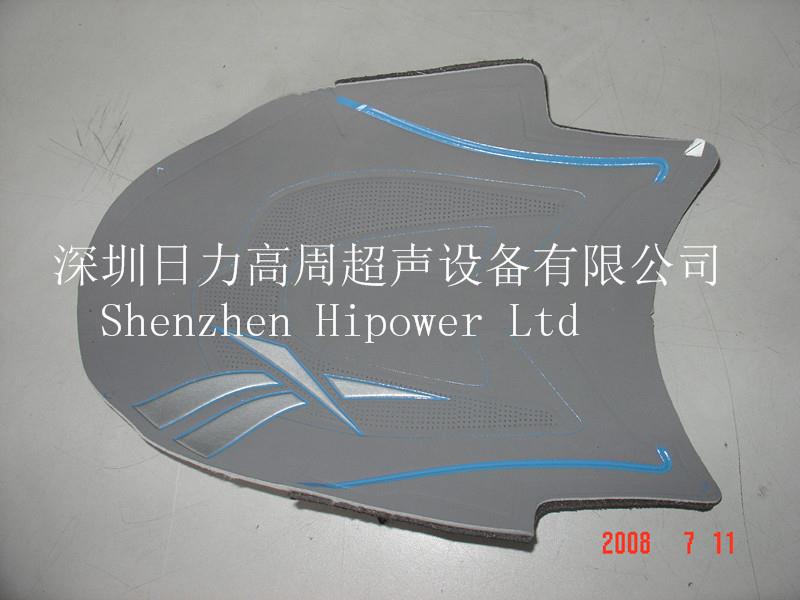

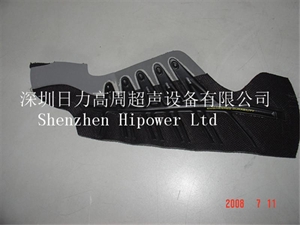

| Scope Of Application： | Application Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine. |
| Features： | We have divided our high frequency synchronous welding and cutting machines into several different product categories; Automatic turntable high frequency synchronouswelding and cutting machine(with/without robot) |
One side slide way high frequency welding and cuttting machine
With NL5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current.
Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold,
raw materials andproducts. At the same time warning lights will send you the alert.
Spark restrains :
With NL5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current.
Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold,
raw materials andproducts. At the same time warning lights will send you the alert.
Strong out-put power :
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.
Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation:
Different output power based on product size and thickness is available.You can control the welding and Different
output power based on product size and thickness is available.
Technical parameter:
| Model | HR-8000WTS |
| Power | 8KW |
| Supply power | 3P 220V/380V 50Hz/60Hz & Customized |
| Frequency | 27.12Mhz |
| Input supply | 15KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 7T69RB |
| Max pressure | 20T |
| Gap of electrodes | 150MM |
| Distance of active horn | 150MM |
| Size of upper electrode | 400*500MM |
| Size of buttom electrode | 400*500MM |
| Temperuture Scale | 0~200 Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 4000times / 8 hours |
| Net weight | 1.5T |
| Packing Dimension |
1920*1200*2060MM
|
