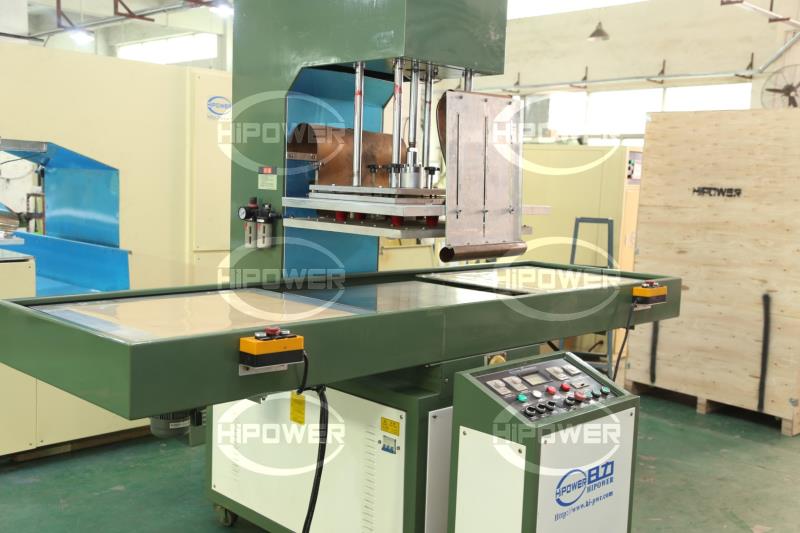

High frequency jack air bag welding mahcine
| Model： | HR-8000AT |
| Scope Of Application： | Application: Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc; Leather leather bags industry such as: leather, leather welding, embossing, fusing and towel |
| Features： | Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc;Leather leather bags industry such as: leather |
High frequency jack air bag welding mahcine
Application:
Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc;
Leather leather bags industry such as: leather, leather welding, embossing, fusing and towel bag embossing, etc;
PVC door MATS embossed, door MATS welding, plastic door MATS embossing, carpet embossed, mat welding, pads embossing, cushion embossing and s-type pads welding, electric car ottomans embossed, pads welding, locomotive cushion, seat welding etc;
Automobile interior trim products :steering wheel covers, anti lattice thermal bonding, reflective stick thermal bonding, reflective film thermal bonding, automobile cushion, cushion, pads welding, back of a chair, pads embossing, etc;
other industries: life jacket, drifting boat, drifting boat,curtain, shower curtain, gas pool, pool, mattess,,inflatable sofa, water bag etc.
Technical parameter:
| Model | HR-4000AT | HR-5000AT | HR-8000AT | HR-10KWAT |
| Power | 4000W | 5000W | 8000W | 10000W |
| Voltage | 220v/380V 50/60HZ | |||
| Frequency | 27.12MHz | |||
| Input power | 7KVA | 8KVA | 15KVA | 18KVA |
| Rectifier | silicon diode | |||
| Oscillation tube | 7T62RB | 7T85RB | 7T69RB | E3069 |
| Max pressure | 200kg | 250kg | 280kg | 300kg |
| Operation mode | pneumatic | |||
| Max distance of electrodes | 200mm | |||
| The moving distance of active horn | 100mm | |||
| The size of upper electrode | 300*500mm | 400*600mm | ||
| The lowwer of lowwer electrode | 350*600mm | 500*800mm | ||
| The range of tempreture | 30~200 oC adjustable | |||
| Welding time | 0---10sdjustable | |||
| Productivity | < 3500times/8hours | |||
| Net weight | 280kg | 330kg | 360kg | 420kg |
| Overall dimension | 1720*1100*1450 | 1720*1100*1500 | 1800*1200*1600 | 2500*1500*1700 |
