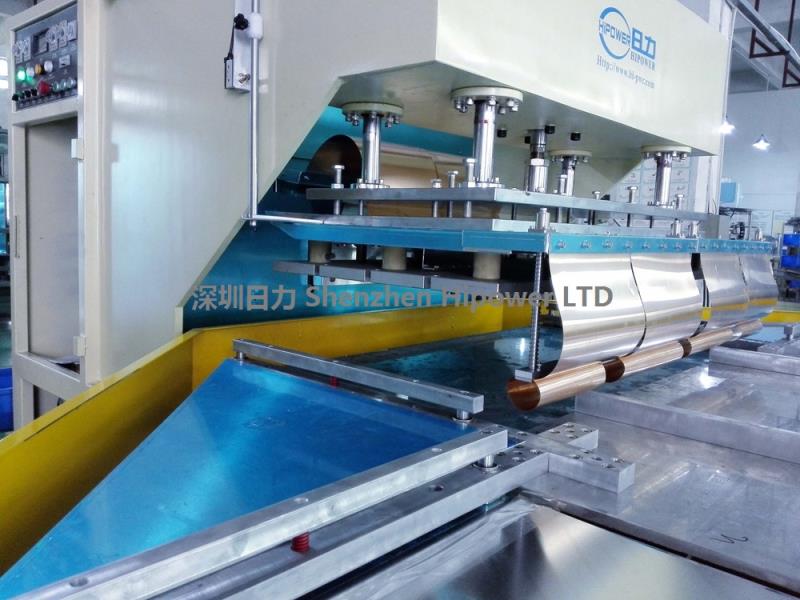

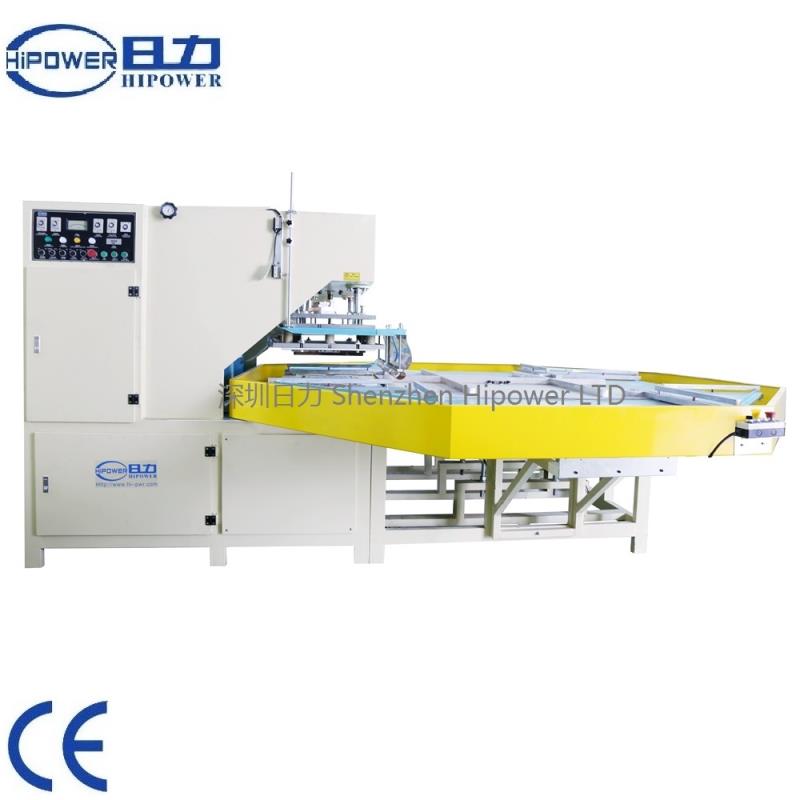

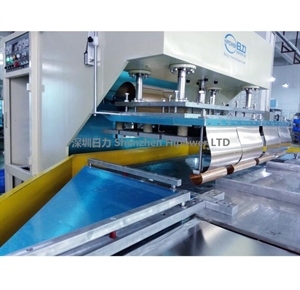

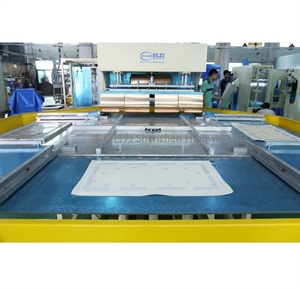

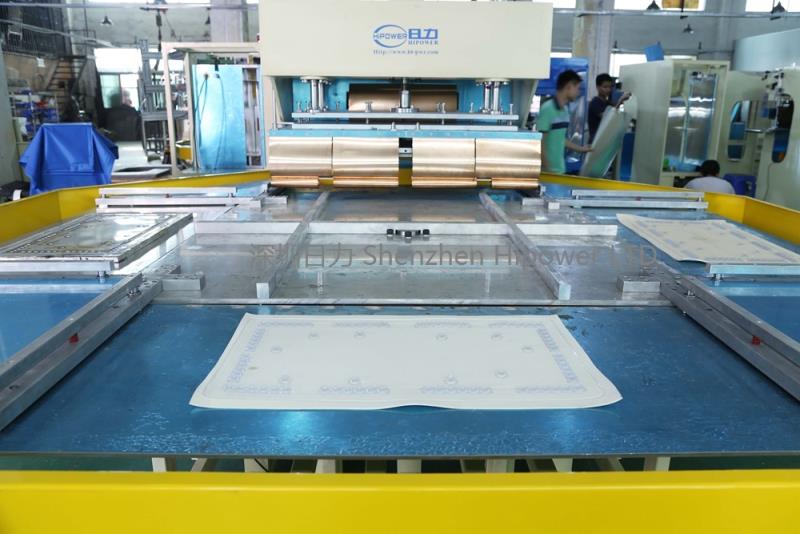

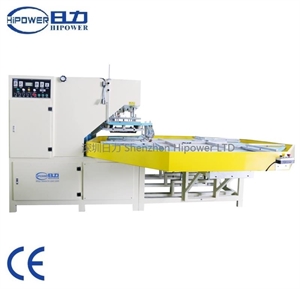

Auto turntable high frequency skidproof mat welding machine

Model：	HR-10KW-4AC

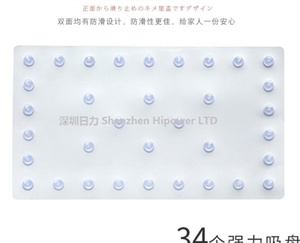

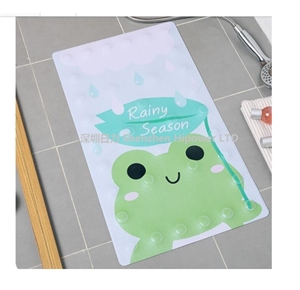

Scope Of Application：	Applied for welding skidproof mat , heel pad, door mat etc
Features：	Auto turntable machine, with robot pick-up station, HF welding and cutting function.Arc suppressor 5557; precision splitter motor control makes rotating position precisely.

It is especially designed for HF welding is a perfect machine for production of matress,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys.

The HF skidproof mat welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.

Technical parameter:

MODEL： HR-8000W-6AC HR-10KW-6AC HR-12KW-6AC   HR-15KWE-6AC
H.F POWER： 8000W   10000W 12000W   15000W
SUPPLY POWER：   380V 50/60HZ
FREQUENCY：   27.12MHZ                      13.56MHZ
INPUT POWER： 5KVA 18KVA                  20KVA           25KVA
RECTIFIER： SILICON DIODE
OSCILLATOR： 7T69RB   E3069 E3130 8T85RB
MAX PRESSURE： 500kg 500kg   800kg 800kg
THE GAP OF ELECTORDE：   200mm
THE SIZE OF ACTIVE HORN： 150mm
THE SIZE OF UP MOULD： 300*400mm   300*400mm 350*450mm 400*500mm
THE SIZE OF DOWN MOULD： 350*450mm 350*450mm 400*500mm 400*500mm
