Automated Clear Cylinder and Printing Tube Box Making Machine
| Model： | HY-200HO plus Eyelet Punching |
| Scope Of Application： | cylinders made of PVC, APET, PETG and other transparent plastic materials; Automatic material feeding and unloading; Making ideal cylinders for packaging candy, |
| Features： | Both ultrasonic and automatic gluing function availablePLC man-machine interface operating system, servo motor drives;fast and accurate cylinder forming effect;cylinder body automatic feeding and automatic crimping;designed to meet cylinders of va |
Automated Clear Cylinder and Printing Tube Box Making Machine
Features of of HIPOWER Full Automatic Cylinder forming Machine
Both ultrasonic and automatic gluing function available
PLC man-machine interface operating system, servo motor drives;
fast and accurate cylinder forming effect;
cylinder body automatic feeding and automatic crimping;
designed to meet cylinders of various measurement;
Auto Cylinder length adjustment available;
Machine Specification:
|
Model |
HY-200H |
HY-200H1 |
HY-200HO |
|
|
Cylinder Diameter |
40mm--200mm |
40mm--200mm |
40mm--200mm |
|
|
Cylinder Length |
10mm-4000mm |
10mm-4000mm |
10mm-4000mm |
|
|
Materials Thickness |
0.15mm-1.0mm |
0.15mm-1.0mm |
0.15mm-1.0mm |
|
|
Control System |
PLC |
PLC |
PLC |
|
|
Overall dimension |
4200mm*880mm*1500mm |
4200mm*880mm*1500mm |
4200mm*880mm*1500mm |
|
|
Productivity |
Ultrasonic Welding |
Not Available for This Model |
50pcs/m (Aaccording to cylinder length: 100mm/pc) |
50pcs/m (Aaccording to cylinder length: 100mm/pc) |
|
Automatic Gluing |
60pcs/m (Aaccording to cylinder length: 100mm/pc) |
60pcs/m (Aaccording to cylinder length: 100mm/pc) |
60pcs/m (Aaccording to cylinder length: 100mm/pc) |
|

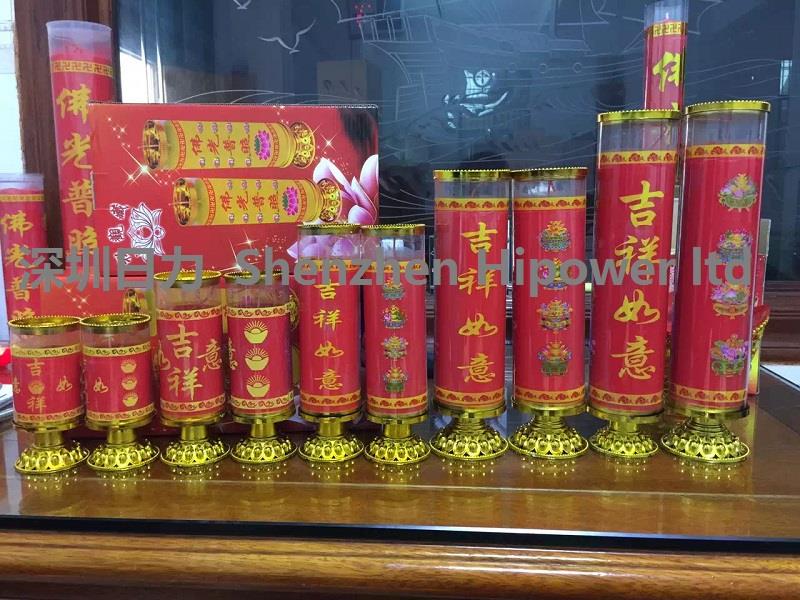

Welded Samples:

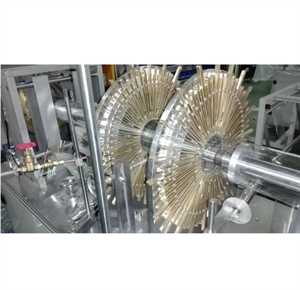

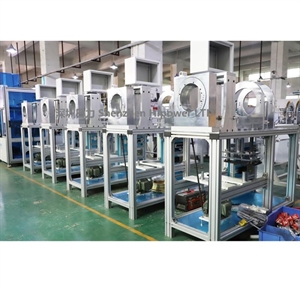

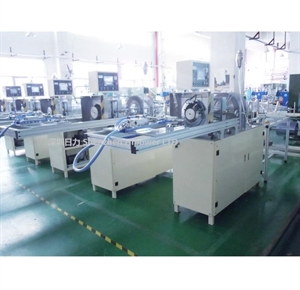

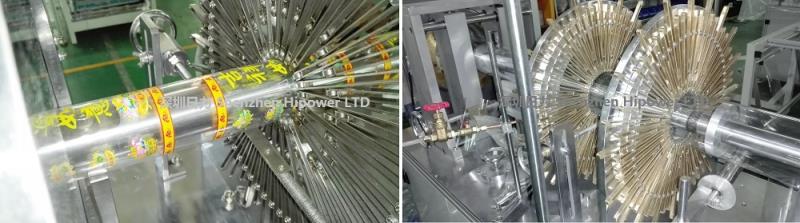

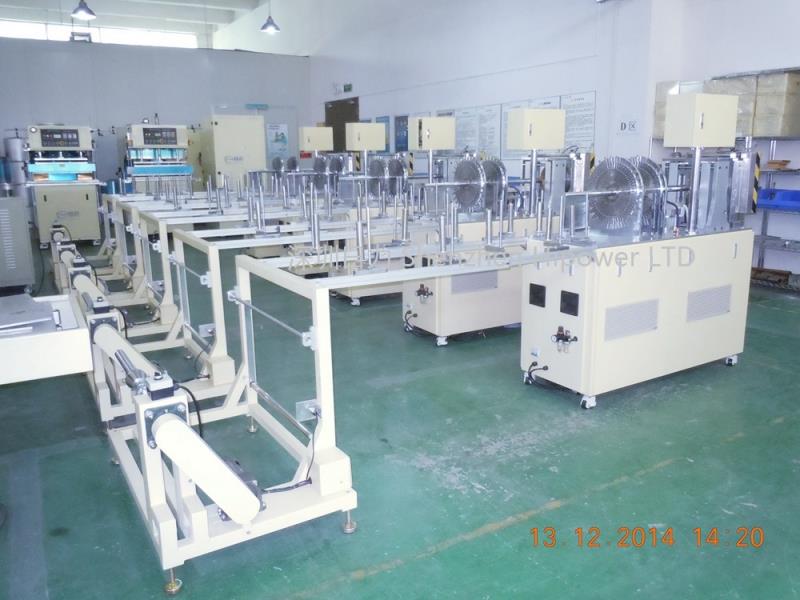

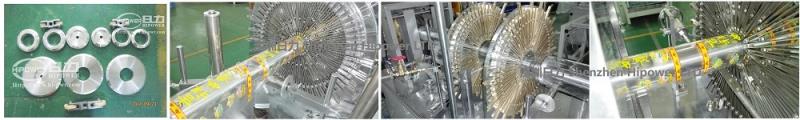

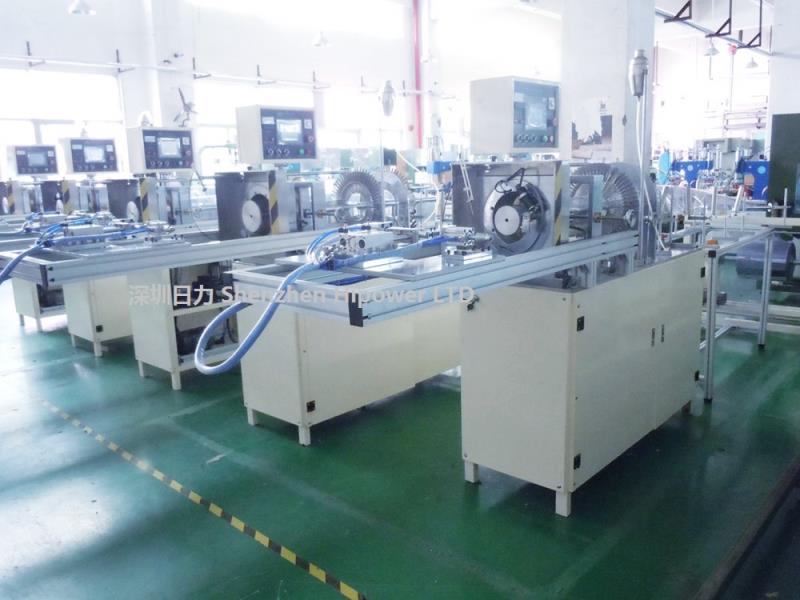

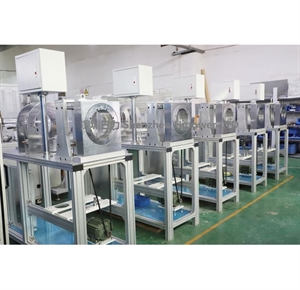

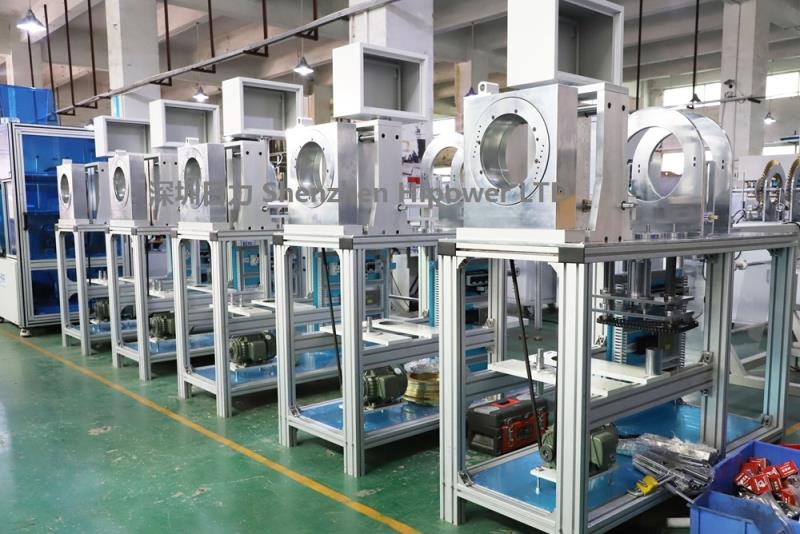

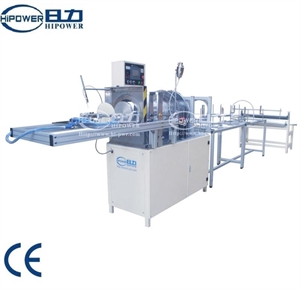

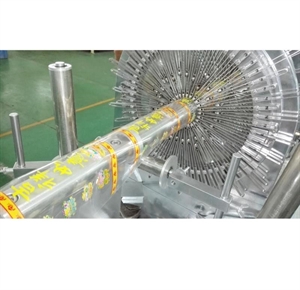

Machine Pictures and Drawings:
