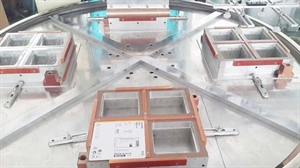

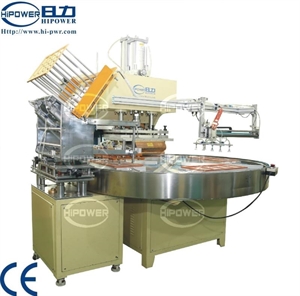

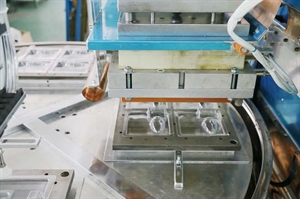

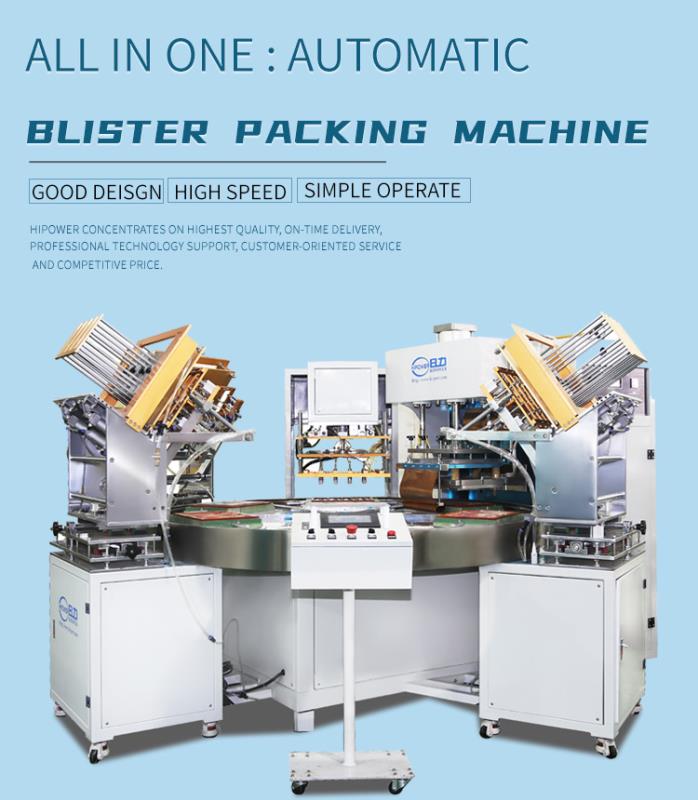

High Frequency Blister Sealing and Cutting Machine

Model：	HR-10KW-4AC-20T

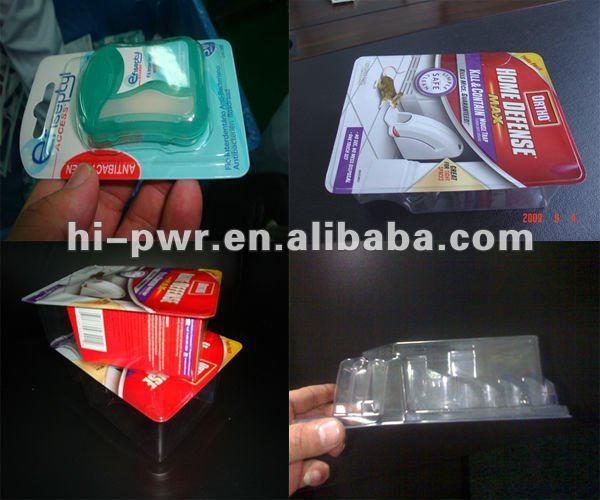

Scope Of Application：	Blister Sealing and Cutting Machine, for PVC blister, PET blister, GAG blister.
Features：	CE certificate. Sealing effect is better than hot sealing machines.

High Frequency Blister Sealing and Cutting Machine

Specification:

Model   HR-10KW-4AC
Power 10KW
Supply power 3P 380V 50Hz/60Hz&Customized
Frequency 27.12Mhz
Input supply 18KVA
Rectifier Silicon Diode
Oscillation tube   7T85RB
Max pressure 20T
Gap of electrodes 200MM
Distance of active horn    100MM
Size of upper electrode 400*500MM
Size of buttom electrode 400*500MM
Temperuture Scale 20~300 Adjustable
Welding time 0~10S Adjustable
