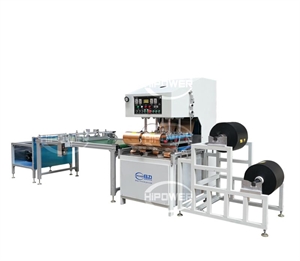

HF welding machine for PVC graphene heating pet Pad/Mat
| Model： | |
| Scope Of Application： | 1. To seal and die-cut blister of PVC2. Heat mats for pets, house use carpets, cold area, |
| Features： | 1. Feeding, pushing material is optional, speed is under control2. The machine has heating and flatting devive, digital counter3. Transmission system adopts imported wear resistant resin material4. No scratch sheets5. Photoelectric sensor, synchro |
heat mat welding machine, PET mat welding machine
High Frequency Welding and Die Cutting Machine, is applied for industrial usage below:
1. To seal and die-cut blister of PVC
2. Heat mats for pets, house use carpets, cold area,
Welded Samples: High Frequency Plastic Welding and Cutting Machine
\
Function:
1. Feeding, pushing material is optional, speed is under control
2. The machine has heating and flatting devive, digital counter
3. Transmission system adopts imported wear resistant resin material
4. No scratch sheets
5. Photoelectric sensor, synchronous collection rack, the control precision
Parameter
|
model |
HR-8000G |
|
HF power |
8KW |
|
Power frequency |
3P 380V 50/60Hz or customize |
|
frequency |
27.12MHz |
|
Input power |
15KVA |
|
rectifier |
SILICON DIODE |
|
Oscillation tube |
7T69RB |
|
Maximum pressure |
20T |
|
Pressure mode |
Air hydraulic |
|
Maximum distance of eletrodes |
200MM |
|
Moving distance of electrodes |
100MM |
|
Upper electrode |
500*700 mm |
|
Down electrode |
600*800 mm |
|
Temperature range |
30 to 200 Adjustable |
|
Welding time |
0.01~9.99S Adjustable |
|
productivity |
Equal or less 5000times/8h |
|
Net weight |
3.6T |
| Gross weight | 3.8T |
|
Overall dimension |
9250*1850*2200 mm |
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
Our company are verified by SGS, BV. and our machines are with CE certificates.
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment
and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
a) Customer's site installation, training & maintenance available
d) Recommend equipment of top choice based on your requirements for product;
e) Examining mold drawings on your behalf to confirm optimum structure size meeting the requested process;
f) Providing assistance in manufacturing and modifying tools;
g) Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Questions 07. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 08. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 09. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Questions 10. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
