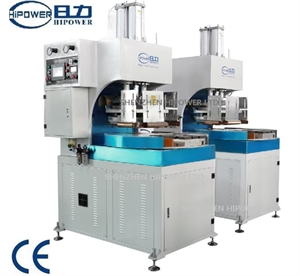

2 Stations Auto Rotating Table Blister Sealing Machine for PET Swiffer Dusters
| Model： | HR-10KW-2AC |
| Scope Of Application： | For blister welding and cutting; like PVC blister, PET-G blister, GAG blister... |
| Features： | 2 Stations Auto Rotating Table;can work with automation lines at customer factory |
2 Stations Auto Rotating Table Blister Sealing Machine for PET Swiffer Dusters

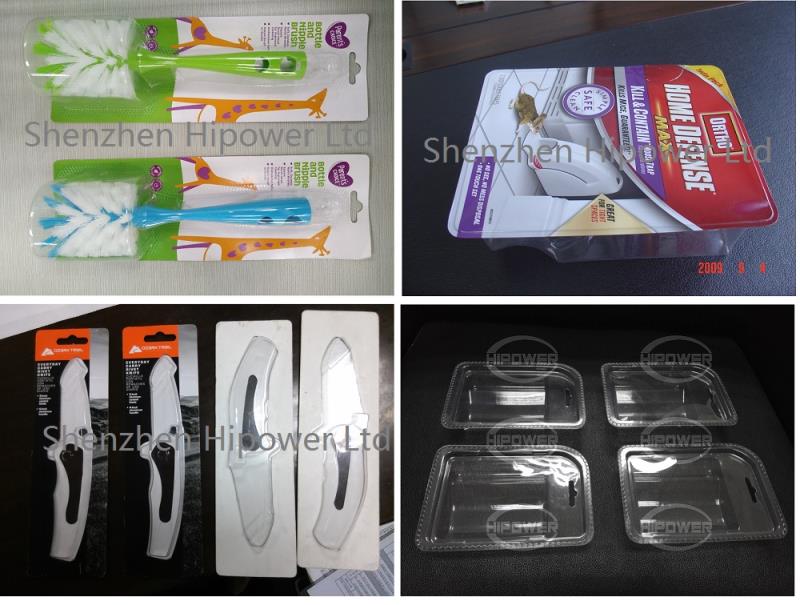

Application:
1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
Specification Sheet:
Model HR-5000W-2AC HR-10KW-2AC
Power 5000W 10KW
Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHZ
Input power 8KVA 18KVA
Rectifier SILICON DIODE
Oscillation tube 7T85RB E3069
Max pressure 350KGS 500kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm

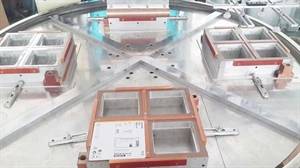

Working Stations: Standard 3 or 4 or 6 Rotary work stations
Upper Electrode (W*H*L) 200*350mm 300*500mm
Size of Work Table (L*W) 300*500mm 400*600mm
Welding time 0.01~9.99s adjustable
Net weight 400KGS 800kgs
Foreseen productivity: According to welding times and operator skills
