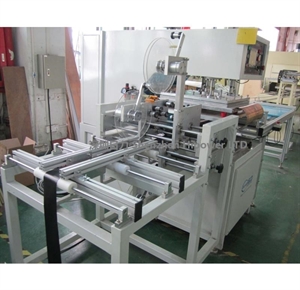

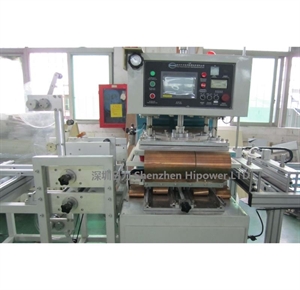

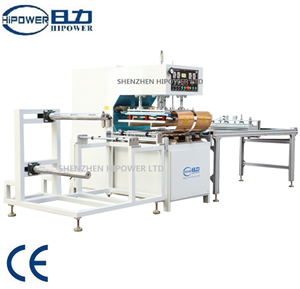

High Frequency Welding Machine for Magic belt, magic tape, magic clothing, velcro belt

Model：	HR-8KWG

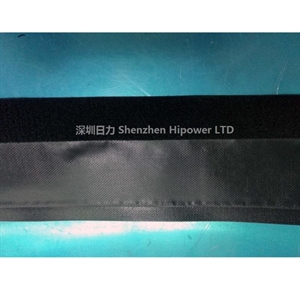

Scope Of Application：	To produce Magic belt, magic tape, magic clothing, velcro belt
Features：	Automatic machine, can do continuous welding and output.product collected into rolls

Automatic HF welder for Magic belt, magic tape, magic clothing, velcro belt

Function:

1. Feeding, pushing material is optional, speed is under control

2. The machine has heating and flatting devive, digital counter

3. Transmission system adopts imported wear resistant resin material

4. No scratch sheets

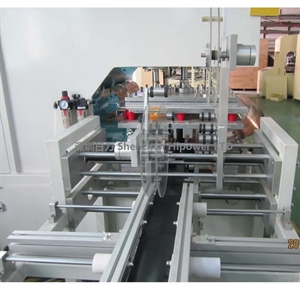

5. Photoelectric sensor, synchronous collection rack, the control precision

High Frequency Magic belt Welding Machine , High Frequency Magic plastic belt Welding Machine

High Frequency velcro belt Welding Machine

Parameter

model	HR-8000G
HF power	8KW
Power frequency	3P 380V 50/60Hz or customize
frequency	27.12MHz
Input power	15KVA
rectifier	SILICON DIODE
Oscillation tube	7T69RB
Maximum pressure	20T
Pressure mode	Air hydraulic
Maximum distance of eletrodes	200MM
Moving distance of electrodes	100MM
Upper electrode	500*700 mm
Down electrode	600*800 mm
Temperature range	30 to 200 Adjustable
Welding time	0.01~9.99S Adjustable
productivity	Equal or less 5000times/8h
Net weight	3.6T
Gross weight	3.8T
Overall dimension	925018502200 mm
