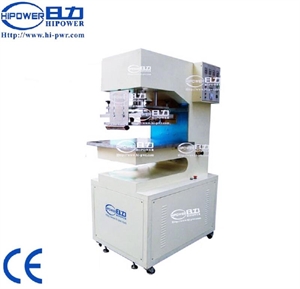

High frequency industrial belt welding machine

Model: HR-10KW

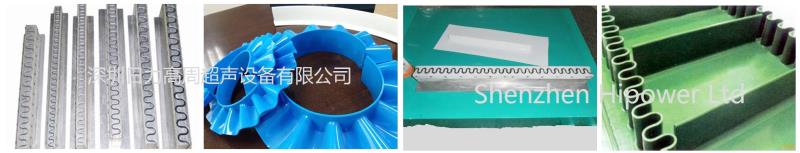

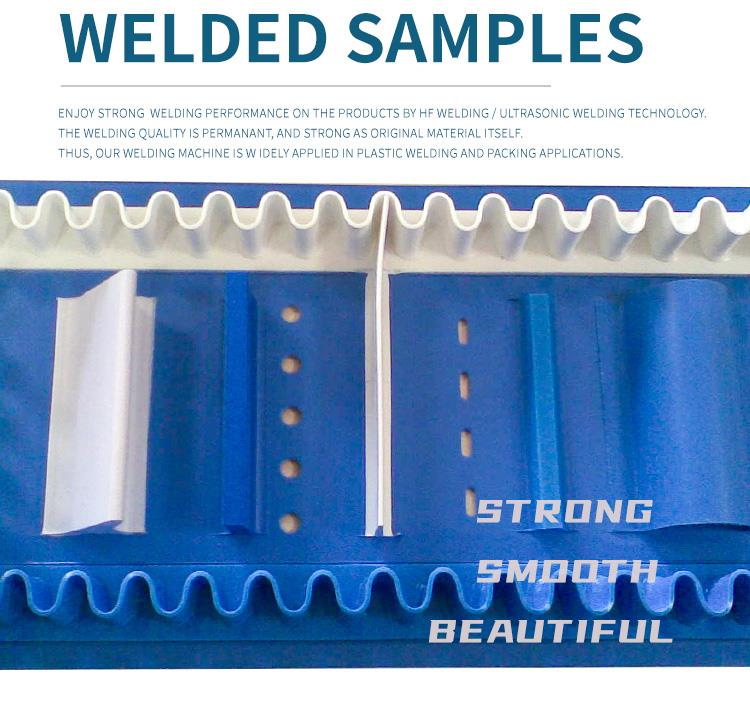

Scope Of Application: Spccially for the material to the running belt, conveyor belt, sidewall,also suitable for double-sided plastic welding such as plastic blister and the cartoon sealing, special plastic material.
Features: Simple Operation , fast and easy to master, the products produced exquisite appearance, high efficiency. The machine is equipped with high sensitivity spark suppression circuit, can be accurately detected unbalance current whic will lead to sparks.

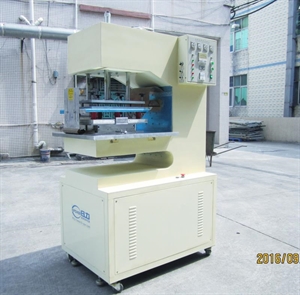

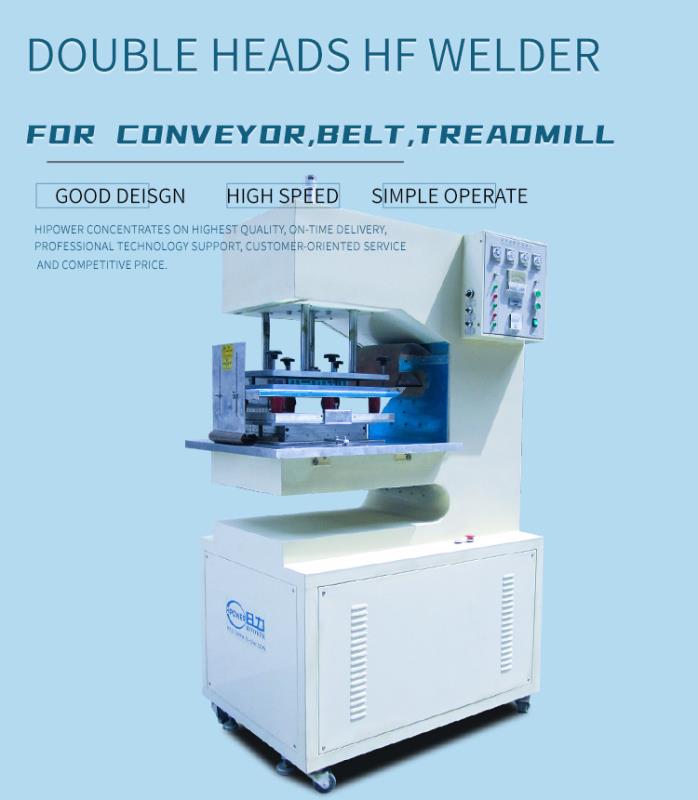

HR-10KW High frequency industrial sidewall welding machine

Feature of the machine:

Specification:

Model HR-10KW
Power 10000w
Voltage 220V/380V 50/60HZ
Frequency 27.12MHZ
Input power 18KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB
Max pressure 500kg
Gap between electrodes 150MM
The moving distance of active horn 150MM

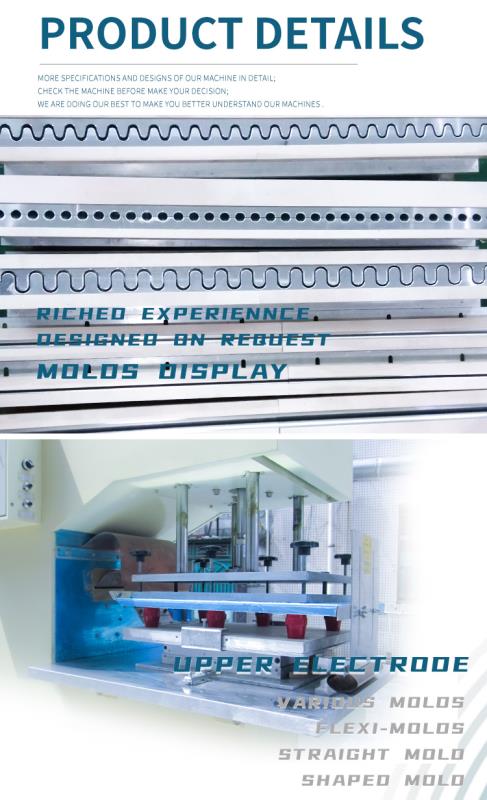

Size of upper electrode 400*500MM
Size of lowwer electrode 700*800MM
Welding time 0~10S Adjustable
Net weight 1000KG
Overall dimension

1500*2000*1500
