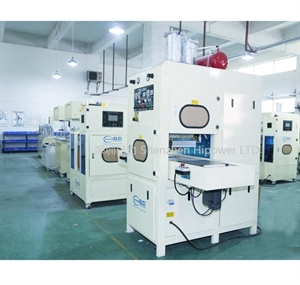

Tooth-Brush Packing Machine, Welding then Cutting HR-8000WT
| Model： | HR-8000WT |
| Scope Of Application： | Mainly apply for welding and cutting PVC,APET,PETG,GAGPVC+Cardboard, PETG+CardBoard, APET+Cardboard |
| Features： | 1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot) 2.automatic sliding |
HR-8000WT High frequency welding&cutting machine for blister packaging
Especially for welding then cutting packing of tooth-brush, and other blister + cardboard packing.
Feature:
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)
2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
Technical parameter:
| Model | HR-8000WT |
| Power | 8000W |
| Supply power | 3P 220V/380V 50Hz/60Hz & Customized |
| Frequency | 27.12Mhz |
| Input supply | 15KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 7T69RB |
| Max pressure | 10T |
| Gap of electrodes | 150MM |
| Distance of active horn | 150MM |
| Size of upper electrode | 300*500MM |
| Size of buttom electrode | 300*500MM |
| Temperuture Scale | 0~200 Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 4000times / 8 hours |
| Net weight | 1T |
| Packing Dimension | 920*1200*2060MM |

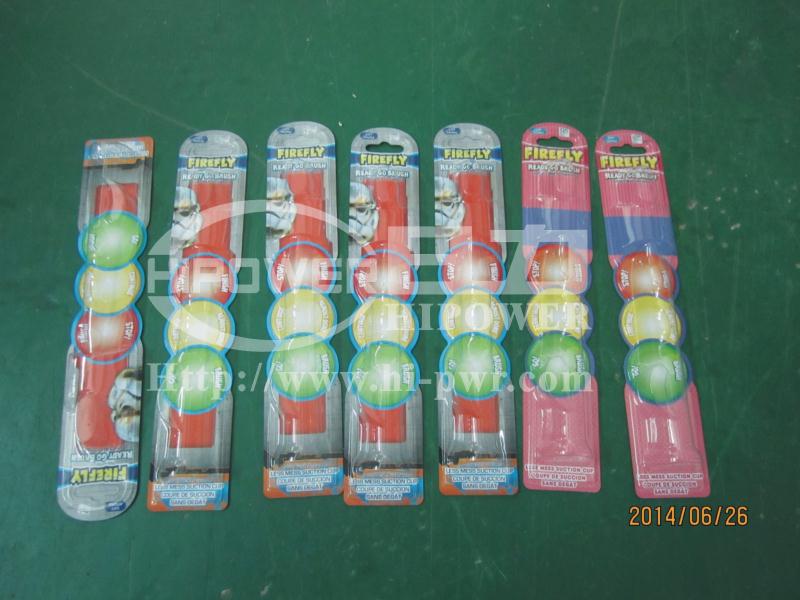

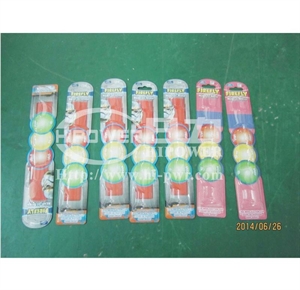

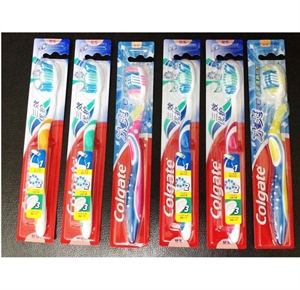

Samples view:
