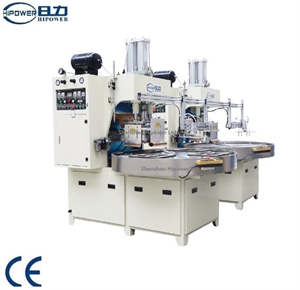

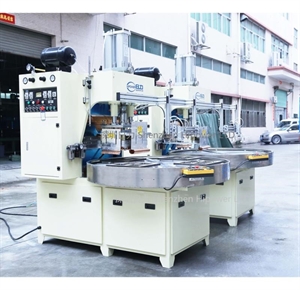

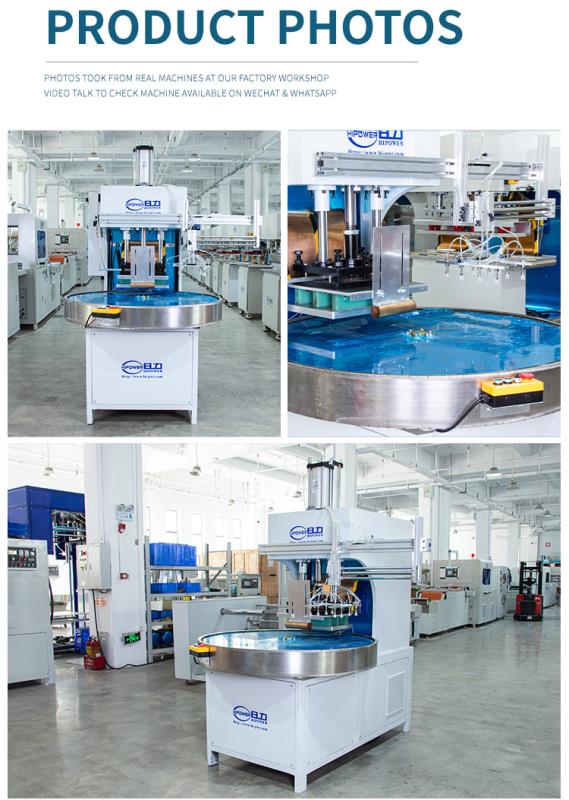

HR-15KW-4AC High Frequency welding and cutting machine for blister packing
| Model： | HR-15KW-4AC |
| Scope Of Application： | Application: Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting |
| Features： | 1.Discal plate with multi-work positions;2.Pneumtic & hydraulic;3.Welding and cutting at the same time;4.NL-5557 anti-spark device;5.Home-made tube or Toshiba tube optional;6.Robot arm optional. |
HR-15KW-4AC High Frequency welding and cutting machine for blister packing
Applications :1.battery blister package, clamshell packing,
2.clamshell toothbrush packing,
3.Covering tarpaulins, side tarpaulins,
4.Water basins, agricultural products
5.Coverings, sleeves
6.Awnings (screen cloth)
7.Blister packaging
8.Stationery (folders, albums, demonstration files etc.)
9.Car mats (welding on heel pieces and logo's)
10.PVC and PU conveyor belts
11.PVC inflatable boats, water beds
12.Rainwear, wading boots, wading suits

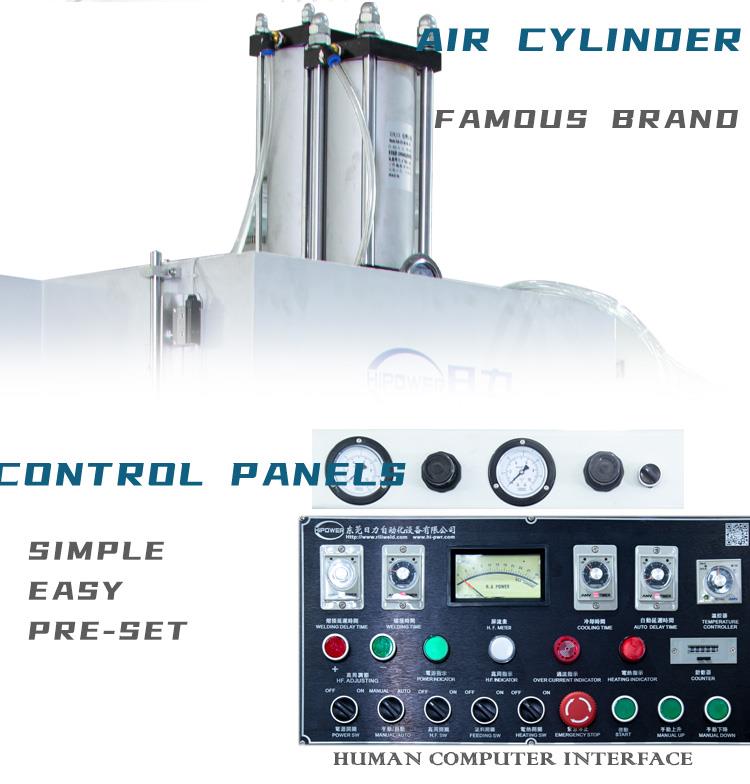

AutomaticTurntable high frequency welding equipment features:
1.Discal plate with multi-work positions;
2.Pneumtic & hydraulic;
3.Welding and cutting at the same time;

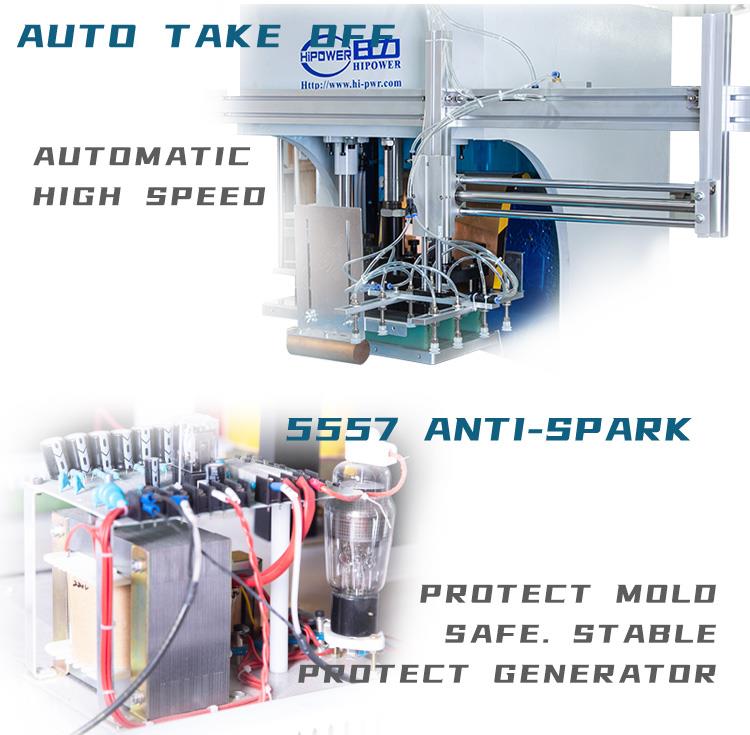

4.NL-5557 anti-spark device;
5.Home-made tube or Toshiba tube optional;
6.Robot arm optional.
Technical parameter:
| Model | HR-15KW-4AC |
| Power | 15KW |
| Supply power | 3P 380V 50Hz/60Hz&Customized |
| Frequency | 27.12MHz |
| Input supply | 25KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 8T85RB |
| Max pressure | 25T |
| Gap of electrodes | 200MM |
| Distance of active horn | 175MM |

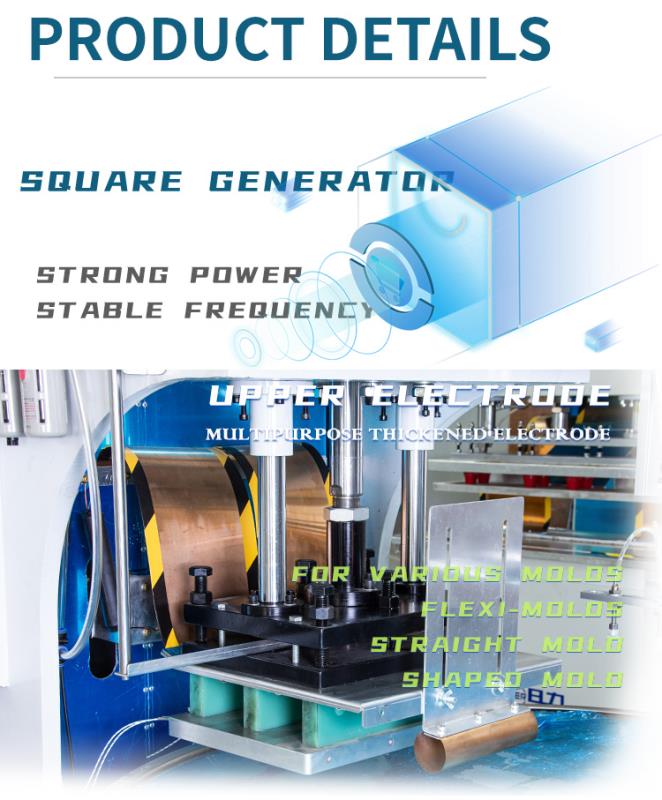

| Size of upper electrode | 400*500MM |
| Size of buttom electrode | 400*500MM |
| Temperuture Scale | 0~200 Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 4000times / 8 hours |
| Operation Mode | Pneumatic & Hydraulic |

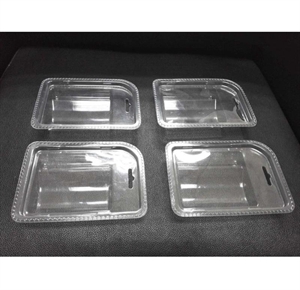

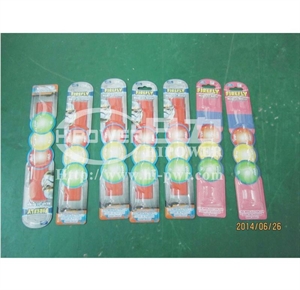

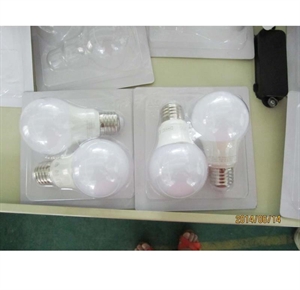

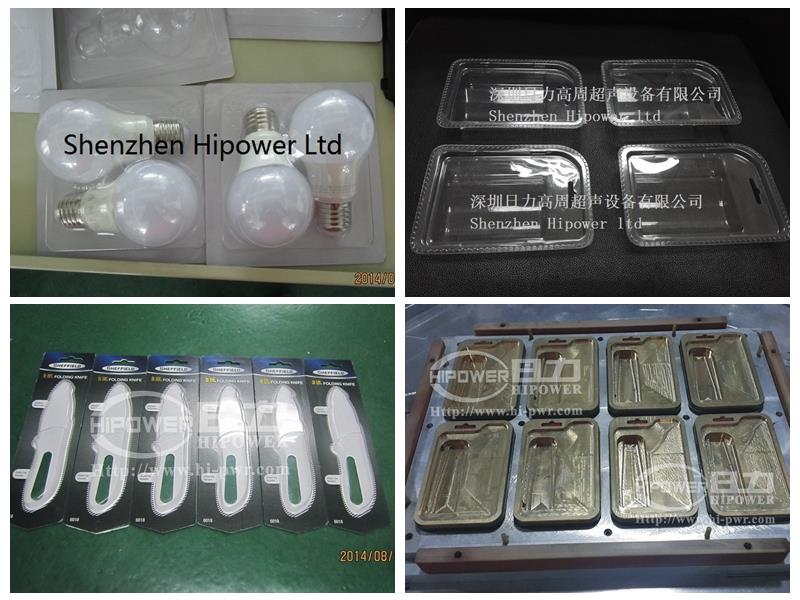

Samples view:
Digg good
(0)
0%
Digg bad
(0)
0%
Previous Products： 15KW-5AC High Frequency welding and cutting machine for blister packing
Next Products： Tooth-Brush Packing Machine, Welding then Cutting HR-8000WT
