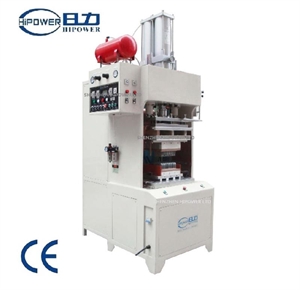

HR-15KW-25T high frequency welding and cutting machine for kneecap

Model：	HR-15KW-25T
Scope Of Application：	high frequency welding and cutting machine for kneecap
Features：	Features: 1.Specialize for making keencap. 2.Good for welding environmental production dress glue products like EVA,PVC,APET,PETG,GAG materials. 3.Can weld and cut simultaneously. 4.Shuttle way with two working position and work automatic.

HR-15KW-25T high frequency welding and cutting machine for kneecap

Features:

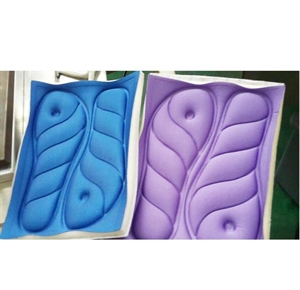

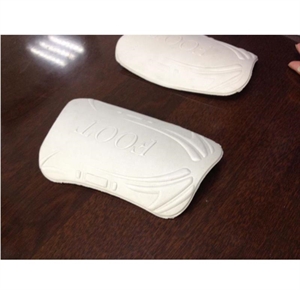

1.Specialize for making keencap.

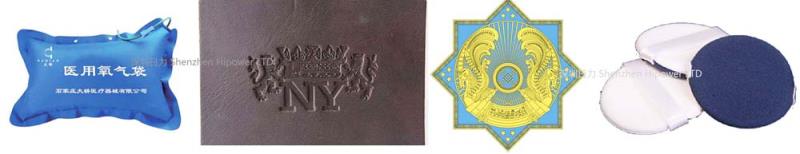

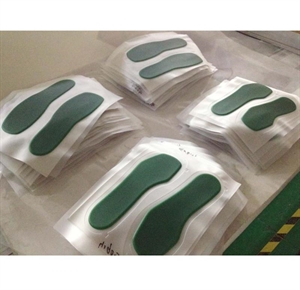

2.Good for welding environmental production dress glue products like EVA,PVC,APET,PETG,GAG materials.
3.Can weld and cut simultaneously.
4.Shuttle way with two working position and work automatic.
5.accurate-orientation, error+20um.
6.Cutting pressure can adjust from 1to 30 ton
7.Firm in structure,stable and realible in output.
8.Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

9.Operation mode: hydraulic.

Technical parameter:

Model	HR-15KW-25T
Power	15KW
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	25KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85RB
Max pressure	25T
The gap of electrodes	150MM
The moving distance of active horn	150MM
The size of upper electrode	400*600mm
The size of lowwer electode	400*600mm
The range of tempreture	0~200C Adjustable
Welding time	0~10SAdjustable
Productivity	Equal or less 5000times/8h
Net weight	1.5T
Overall dimension	1920120012060
