HR-15KW-30T Oil Pressure HF welding&cutting machine
| Model： | HR-15KW-30T |
| Scope Of Application： | For water pool, life jacket and many other kind of plastic product making. For large area products . |
| Features： | We have divided our high frequency synchronous welding and cutting machines into several different product categories; 1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot) 2.automatic slid |
HR-15KW-30T Oil Pressure HF welding&cutting machine
Application:
Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously.
This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting
APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.
Like toliet cover, toothbrush package, soft crease plastic box making, heat preservation bags,watch belt and so on.
Spark restrains :
With NL5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current.
Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold,
raw materials andproducts. At the same time warning lights will send you the alert.
Strong out-put power :
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.
Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation:
Different output power based on product size and thickness is available.You can control the welding and guarantee the
homogeneity of the quality.

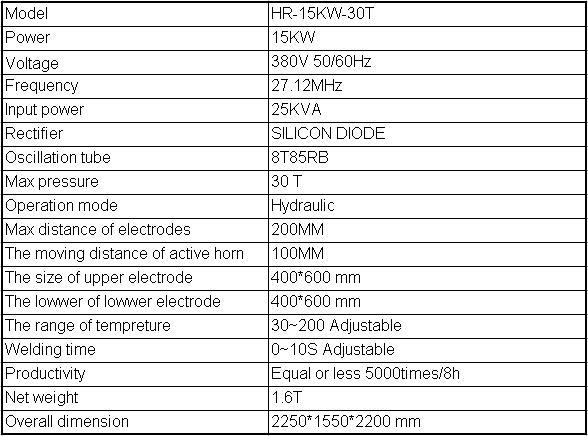

Technical parameter:

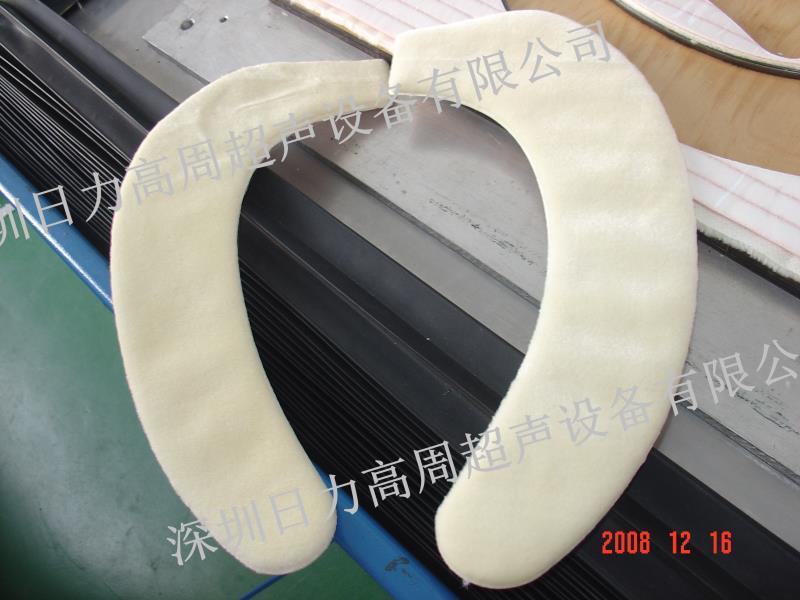

Sample view:

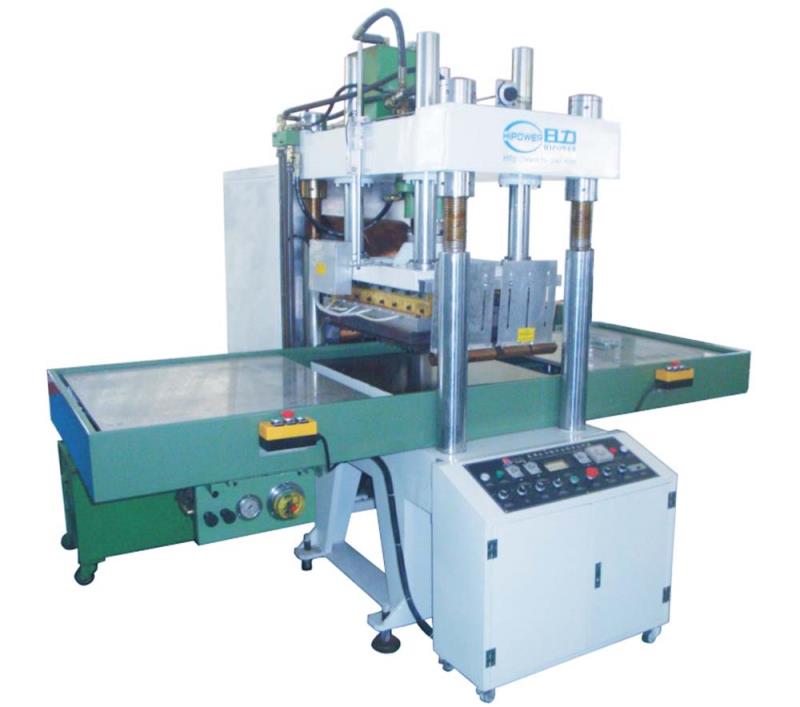

machines:

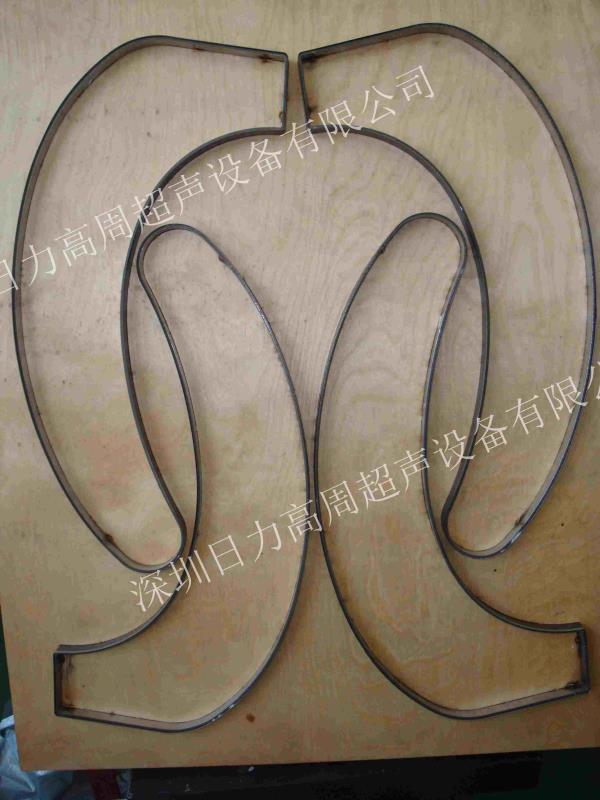

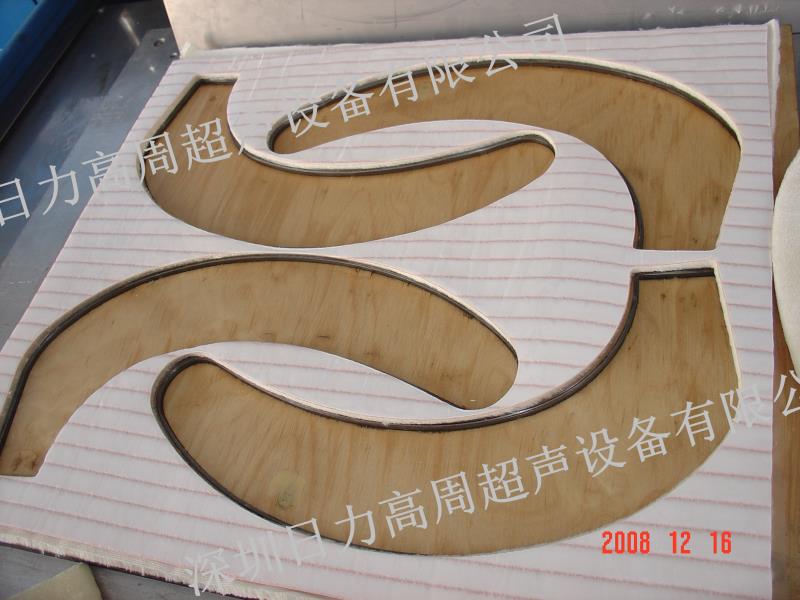

moulds:

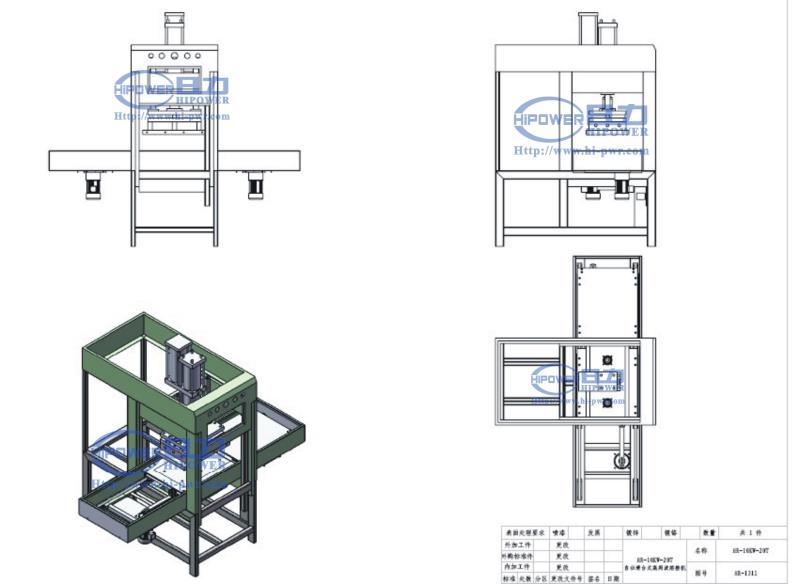

Drawing:
