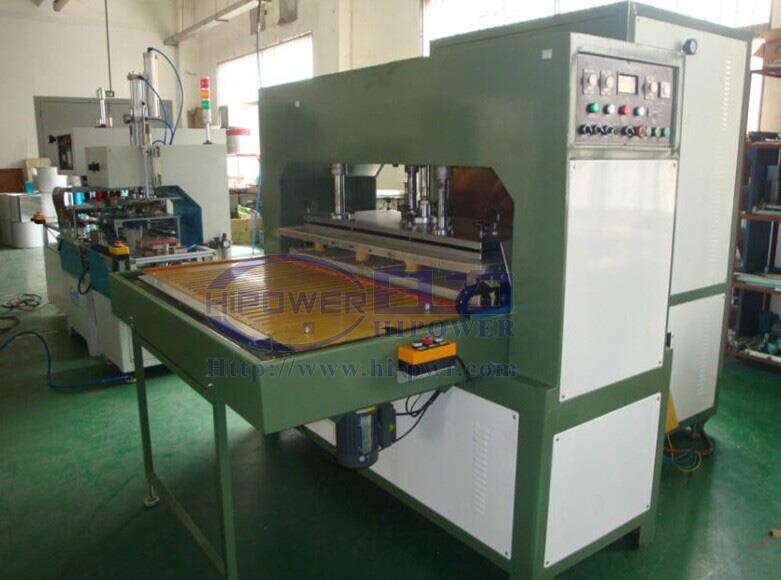

HR-12KWA Auto slide way High frequency welding machine

Model：	HR-12KWA
Scope Of Application：	Applied for insole forming machine is suitable for insole welding, edge cutting and PVC, EVA, PU, PETG, APET, GAG plastic boxes soft crease line making.
Features：	1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine. 2. Double-direction automatic slipway,come-and-go

Character of machine:

1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

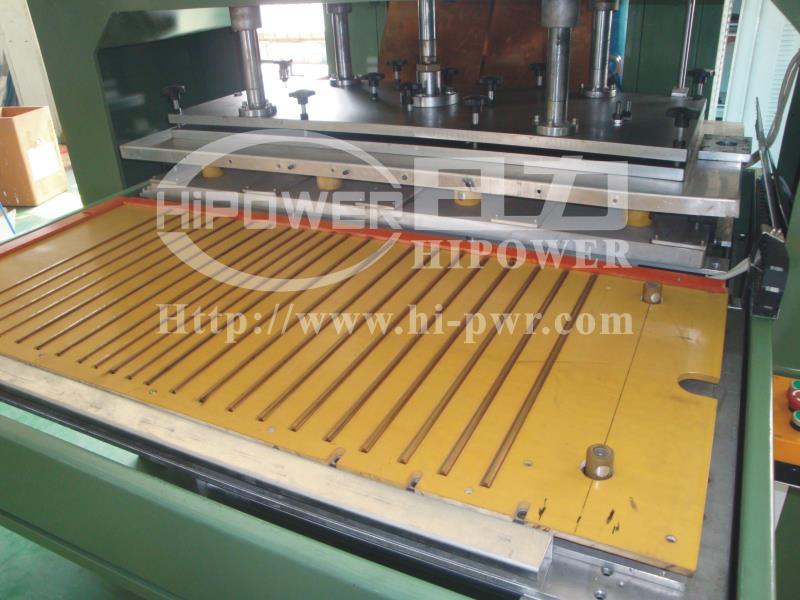

2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um. 3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.

3. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

H.F welding machine has been wildly used in the process of producing various products. such as :

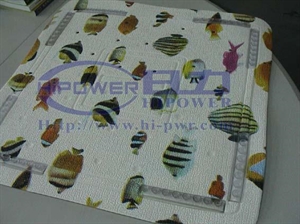

1. Toy stationery, such as :Gift bag, basketball embossing, album inner page, the inner page of business card,mousepad, glasses case,etc.

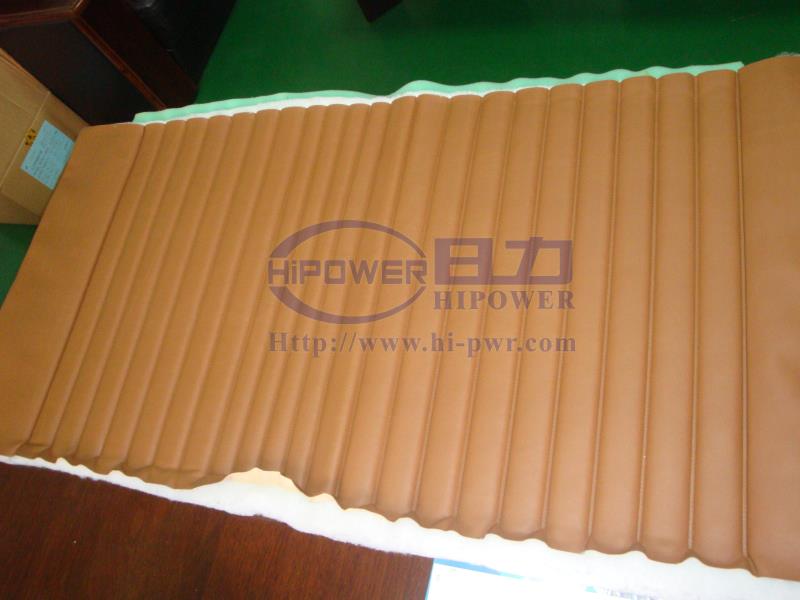

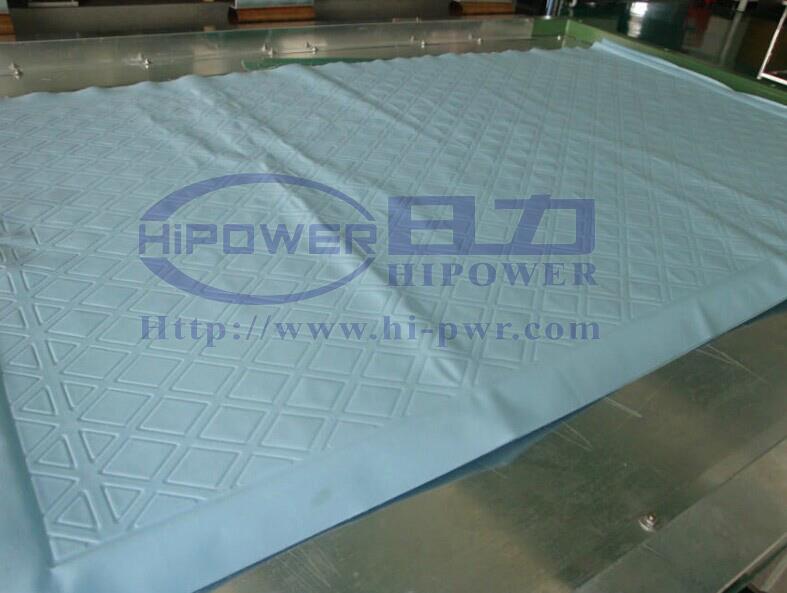

2. Leather suitcase ,such as Leather embossing,coining,heat-sealing,welding&cutting simultaneously,PVC Entrance Mats,carpet embossing,carpet ,shoepad ,car floor mat ,cushion,etc.

3. Automotive interior products, Such as: steering wheel cover,Back seat cushion,life jacket,drifting boat,curtain,shower curtain,inflatable pool & mattress & sofa,ect.

Technical parameter:

Model	HR-8000A	HR-10KWA	HR-12KWA	HR-15KWA
Power	8000W	10000W	12000W	15000W
Voltage	220v/380V 50/60HZ
Frequency	27.12MHz			13.56MHz
Input power	15KVA	18KVA	20KVA	25KVA
Rectifier	silicon diode
Oscillation tube	7T69RB	E3069	E3130	8T85RB
Max pressure	360kg	500kg	800kg	1000kg
Operation mode	pneumatic
Max distance of electrodes	200mm
The moving distance of active horn	100mm
The size of upper electrode	400*600mm	500*700mm	600*800mm	600*900mm
The lowwer of lowwer electrode	600*800mm	600*800mm	600*800mm	600*900mm
The range of tempreture	30~200 oC adjustable
Welding time	0---10sdjustable
Productivity	< 4000times/8hours
Net weight	280kg	330kg	360kg	420kg
Overall dimension	10006601730	10007201860	10007001860	150012001860
