HR-15KWT High frequency auto Carpet making machine
| Model： | HR-15KWT |
| Scope Of Application： | Applied For carpet ,lifejacket ,car seat bladder welding |
| Features： | 1.Automatic shuttle way with two-working positions,2.back-forth model,accurate-orientation.3.manual feeding(can cooperat with automatic feeding part, as request)4.Optional operation mode: hydraulic or pneumatic.5.European-model squareness |
HR-15KWT High frequency auto Carpet making machine
Feature of the machine:
1.Automatic shuttle way with two-working positions,
2.back-forth model,accurate-orientation.
3.manual feeding(can cooperat with automatic feeding part, as request)
4.Optional operation mode: hydraulic or pneumatic.
5.European-model squareness high prequency vobration box,more realible and stable in output.
6.Adopting high sensitive anti-sparkle device to protect the mould from damage of over circuit.
Specification:
| Model | HR-15KW | HR-25KW | HR-35KW | HR-50KW |
| Power | 15000W | 25000W | 35000W | 50000W |
| Power supply | 380V 50/60HZ | |||
| Frequency | 13.56MHZ | |||
| Electric power | 25KVA | 35KVA | 50KVA | 70KVA |
| Prectifier | SILICON DIODE | |||
| Vibrational tube | 8T25RB | 8T25RA | T87RB | E3116 |
| Maxpressure | 1000kg | 1000kg | 1500kg | 2000kg |
| Max gap of electrodes | 100MM | |||
| Size of active horn | 100MM | |||
| Size of upper electrode | 700*900mm | 800*1000mm | 1000*1800mm | 1200*2100mm |
| Size of down electrode | 800*1200mm | 1000*1400mm | 1200*2000mm | 1200*2200mm |
| Welding time | 0~10S Adjustable | |||

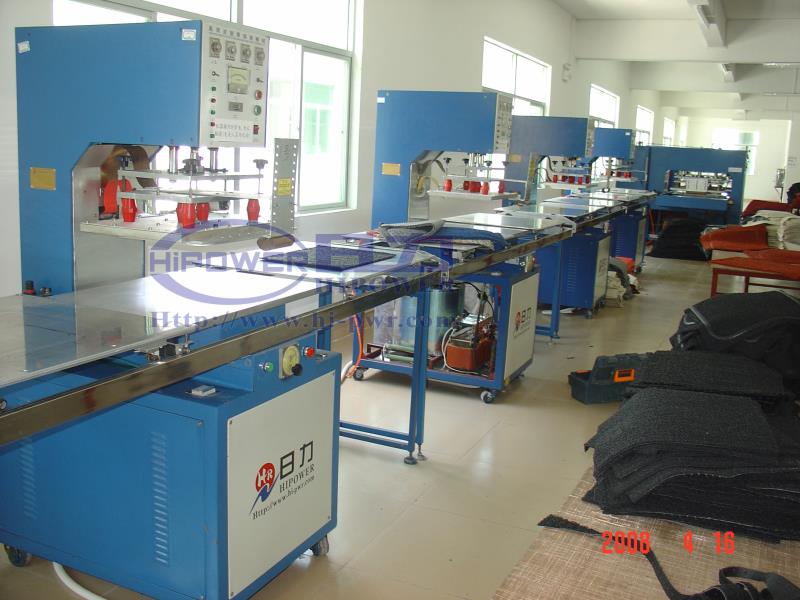

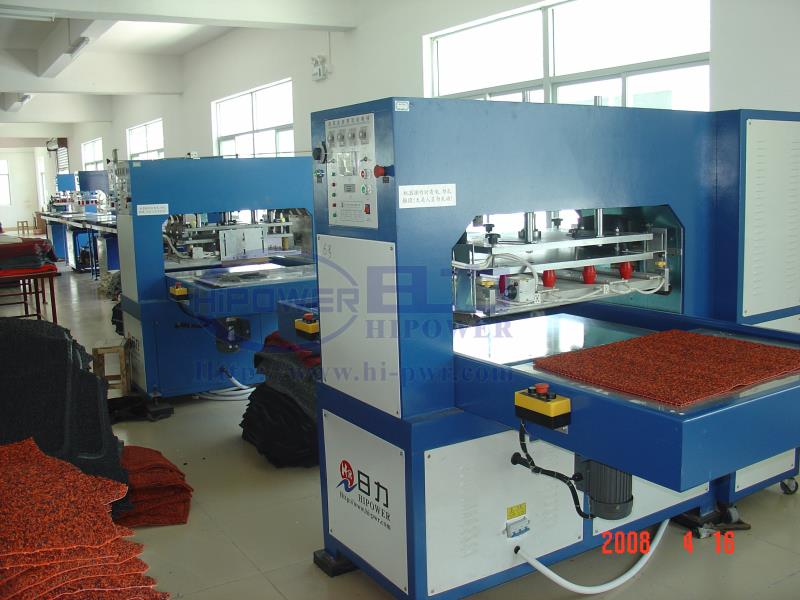

On the site:

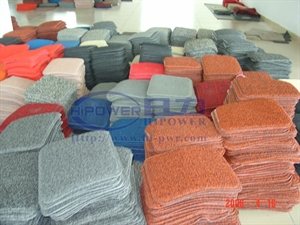

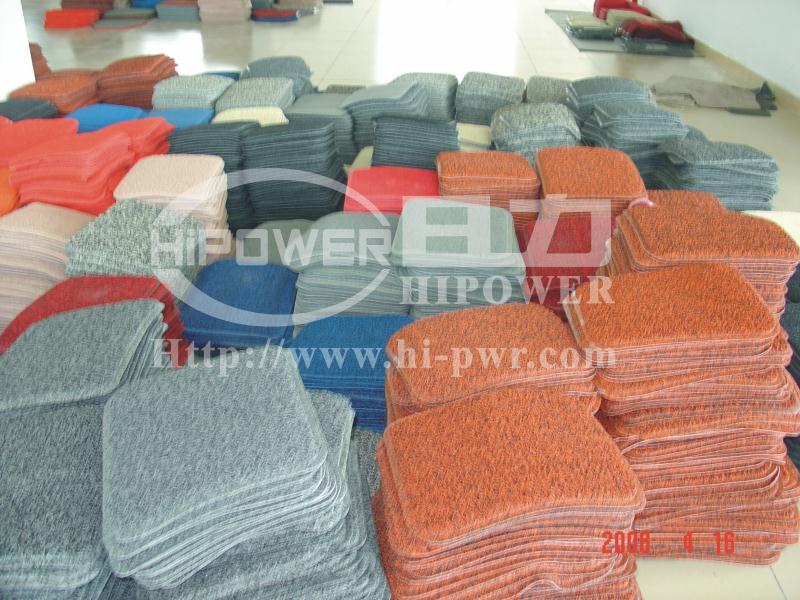

Sample view:

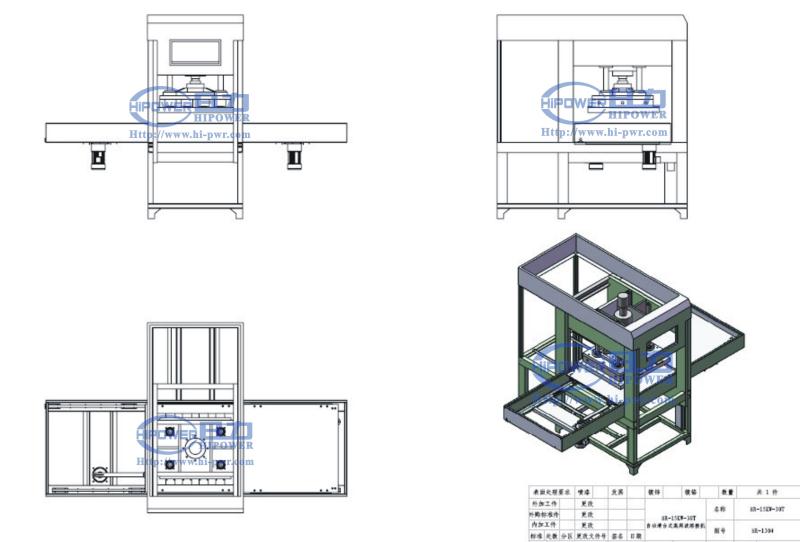

Drawing:
